Seat Belt Guide Track: Service and Repair

SHOULDER BELT GUIDE BRACKET REPLACEMENT

REMOVAL PROCEDURE




1. Remove the folding top.

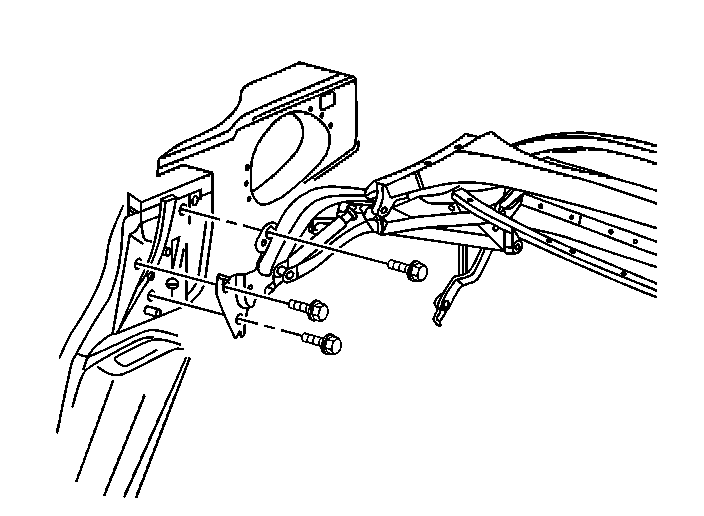

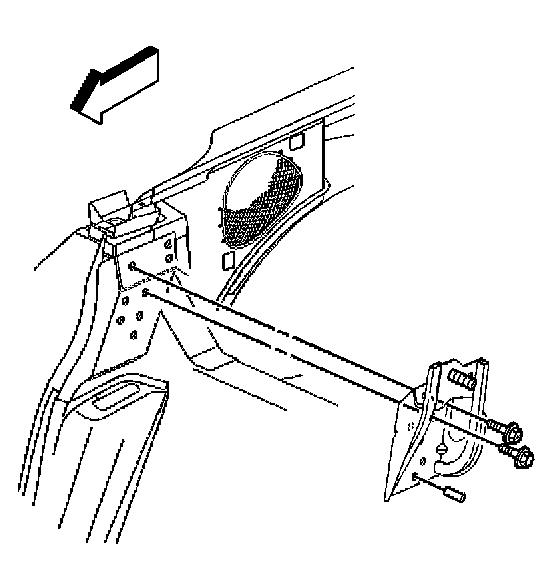

2. Remove the bolts attaching the shoulder harness guide bracket.
3. Remove the bracket.

INSTALLATION PROCEDURE

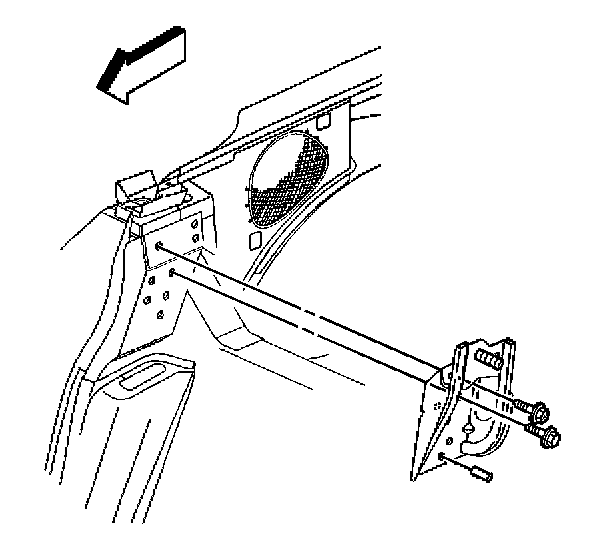

1. Install the bolts attaching the shoulder harness guide bracket.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the shoulder harness guide bracket bolts to 27 N.m (20 lb ft).




2. Install the folding top.
