Seat Belt Buckle Replacement - Right Front

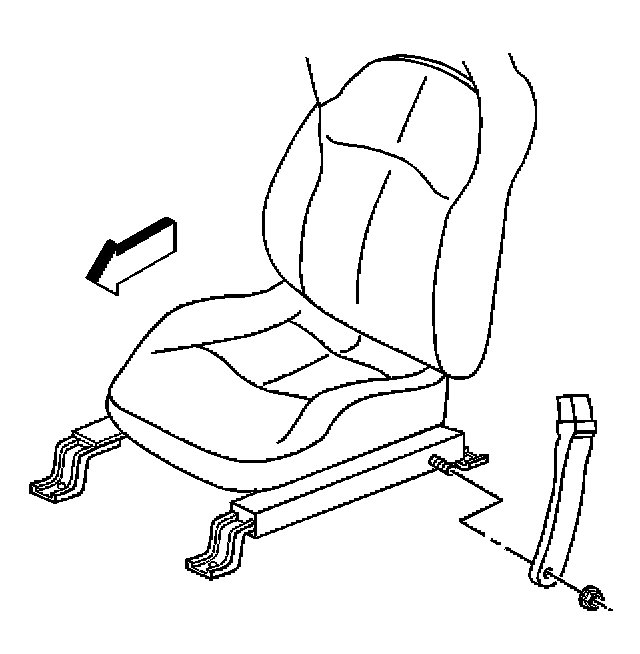

REMOVAL PROCEDURE




1. Remove the passenger seat.
2. Remove the buckle side seat belt.

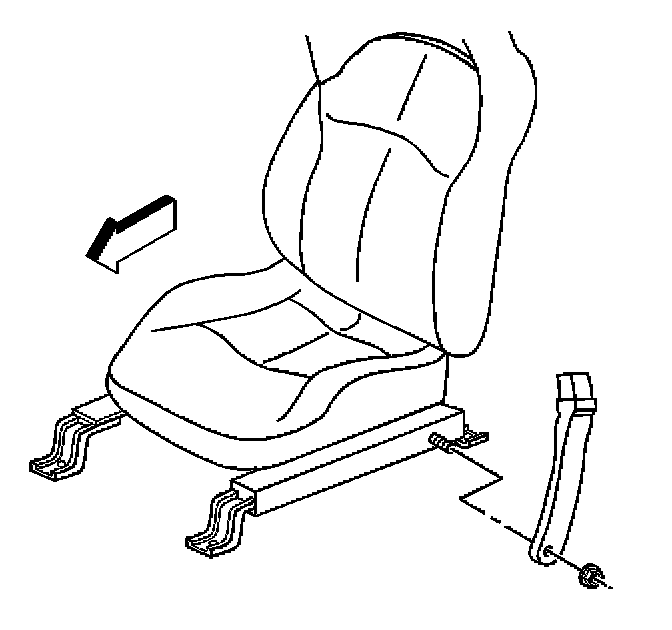

INSTALLATION PROCEDURE




1. Install the buckle side seat belt to the passenger seat track.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the buckle side nut to 50 N.m (37 lb ft).

2. Install the seat.
