Bracket Replacement - Knee Bolster (Driver Outer)

BRACKET REPLACEMENT - KNEE BOLSTER (DRIVER OUTER)

REMOVAL PROCEDURE




1. Remove the console.
2. Remove the IP accessory trim plate.
3. Remove the driver knee bolster trim panel.
4. Mark the location of the driver knee bolster outer bracket.Refer to Instrument Panel (I/P) Disassembly Precautions.

IMPORTANT: The following step must be performed to assure proper trim fits during installation.

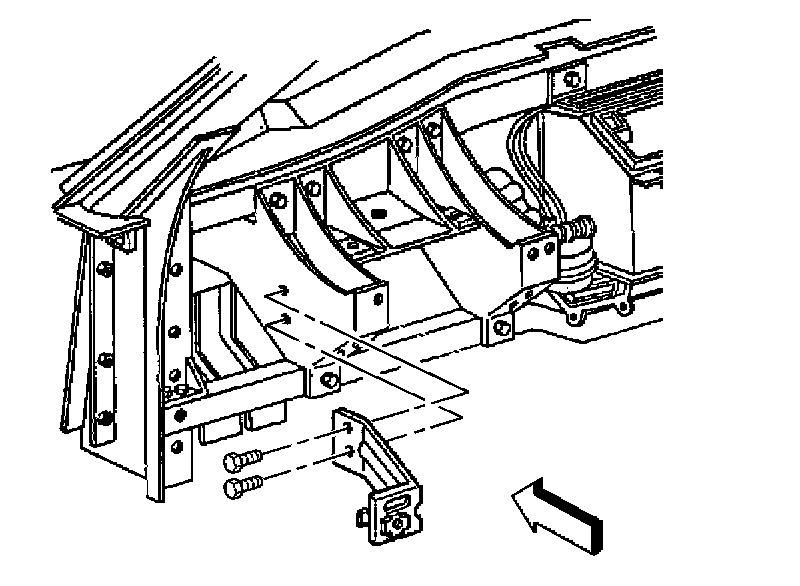

5. Remove the screws retaining the driver knee bolster outer bracket to the steering column bracket.
6. Remove the driver knee bolster outer bracket.

INSTALLATION PROCEDURE

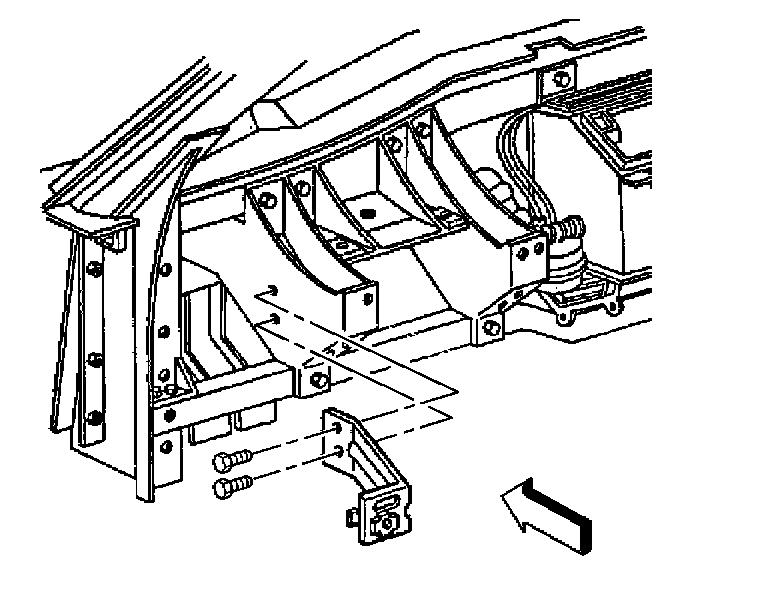

1. Install the outer driver knee bolster bracket into position as marked prior to removal.
2. Install the driver knee bolster outer bracket to steering column bracket retaining screws.

NOTE: Refer to Fastener Notice in Service Precautions.


Tighten
Tighten the driver knee bolster outer bracket retaining screws to 1.9 N.m (17 lb in).

3. Install the driver knee bolster trim panel.
4. Install the IP accessory trim plate.
5. Install the console.
