Passenger

AIR OUTLET REPLACEMENT - PASSENGER







REMOVAL PROCEDURE
1. Remove the I/P upper trim pad.

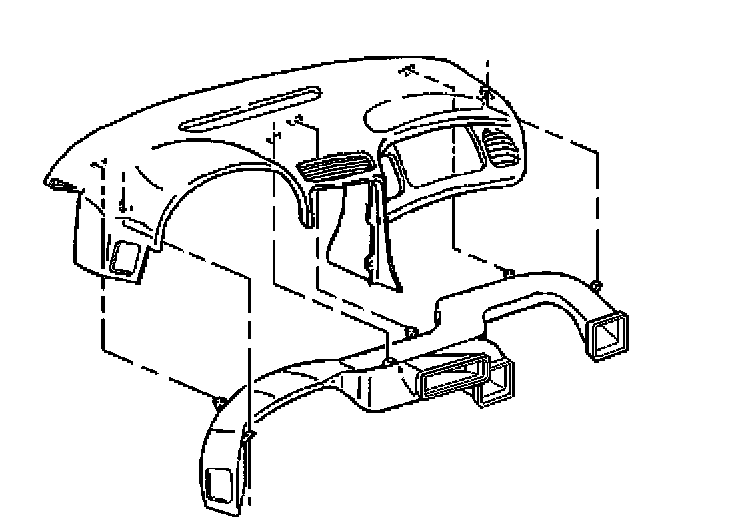

2. Remove the screws retaining the air distribution duct to the underside of the upper trim pad.
3. Remove the air distribution duct.

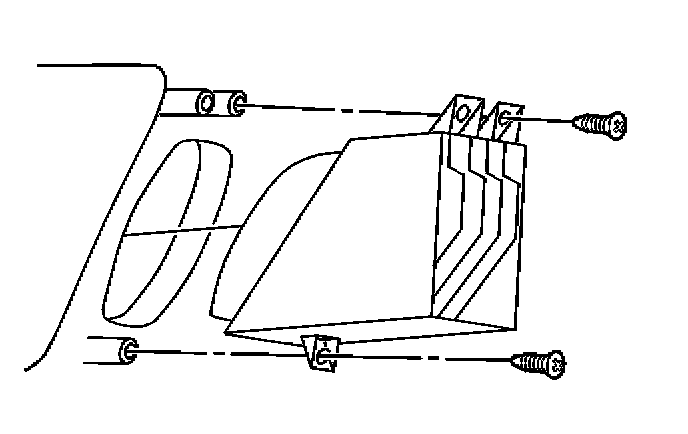

4. Remove the screws retaining the passenger air outlet to the underside of the trim pad.
5. Remove the air outlet.







INSTALLATION PROCEDURE

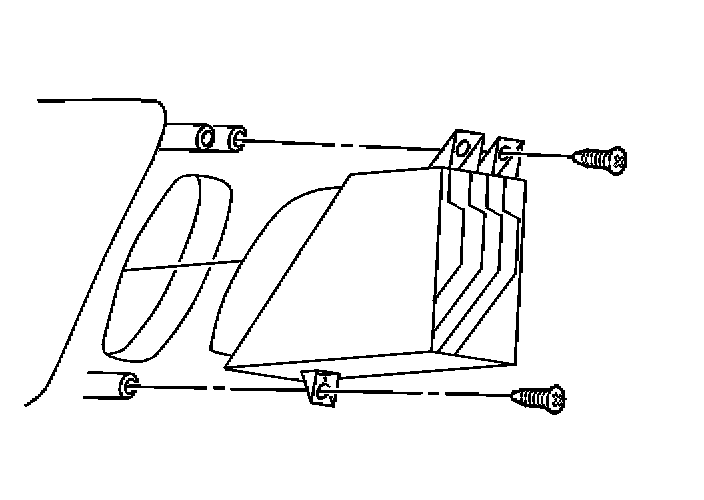

1. Install the air outlet into position on the upper trim pad.
2. Install the screws retaining the air outlet to the trim pad.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the screws to............1.7 N.m (15 lb in).

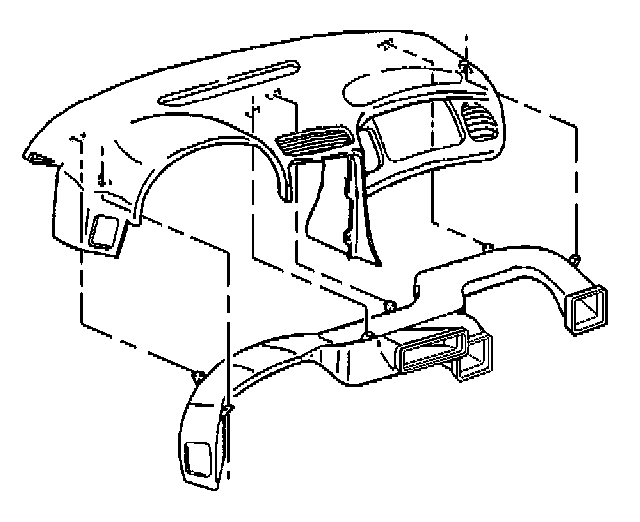

3. Install the air distribution duct into position on the upper trim pad.
Insert the duct retaining tabs into the trim pad slots.
4. Install the screws retaining the air distribution duct to the trim pad.

Tighten
Tighten the screws to............1.8 N.m (16 lb in).

5. Install the I/P upper trim pad.
