Heat Shield: Service and Repair

Exhaust Muffler Heat Shield Replacement

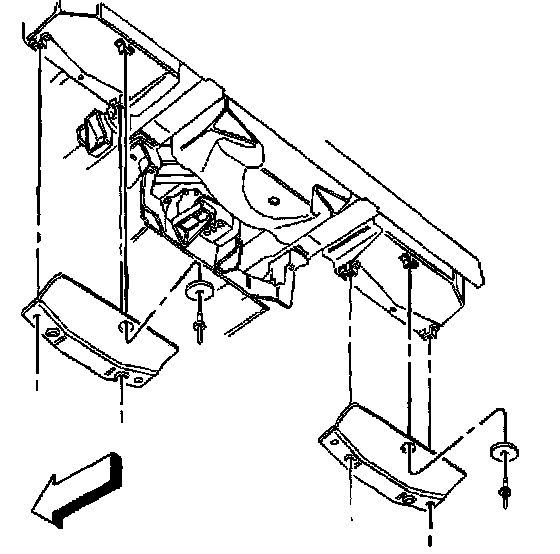

Removal Procedure





1. Remove the left or right muffler.
2. Drill out the left or right muffler heat shield rivets.
3. Remove the left or right heat shield washers and shield.

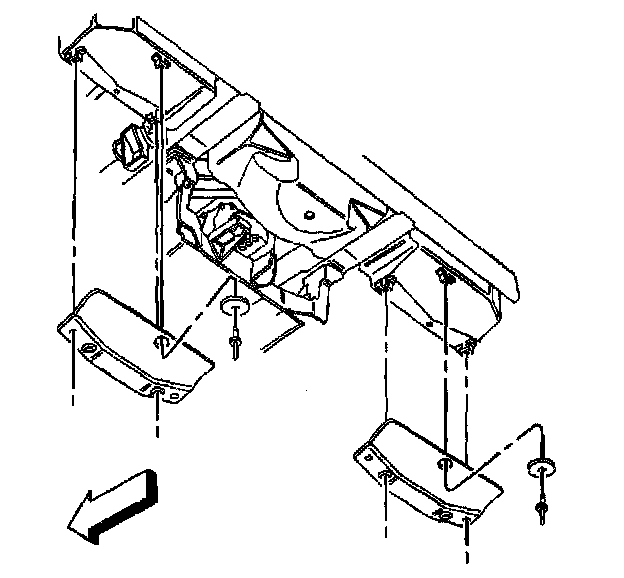

Installation Procedure





1. Install the left or right heat shield and washers.
2. Install new left or right heat shield rivets.
3. Install the left or right muffler.
