Front Door Window Glass Weatherstrip: Service and Repair

Sealing Strip Replacement - Front Door Window Belt Outer

Removal Procedure




1. Remove the door trim panel.

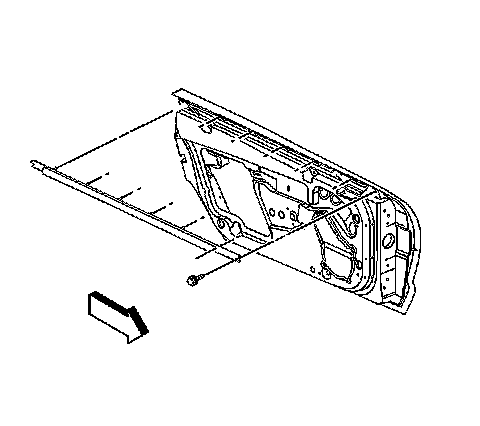

2. Remove the screw from the front of the sealing strip.
3. Slide the strip rearward.
4. Pull the sealing strip retainers from the holes in the door.

Installation Procedure




1. Align the sealing strip retainers to the slots in the door.
2. Push the retainers into the slots and slide the sealing strip forward seating the retainers.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the screw in the forward hole.

Tighten the window outer sealing strip screw to 2 N.m (18 lb in).




4. Install the door trim panel.
