B0332

DTC B0332

CIRCUIT DESCRIPTION
The following DTCs are for the ambient air temperature sensor and for the inside air temperature sensor:
- B0332 and B0333 are for the ambient air temperature sensor.
- B0337 and B0338 are for the inside air temperature sensor.

The ambient air temperature sensor allows the HVAC control module to monitor the temperature of the air surrounding the front of the vehicle. The inside air temperature sensor allows the HVAC control module to monitor the temperature of the air inside the passenger compartment. The module applies 5 volts to internal input resistors that are connected to the signal circuits of the air temperature sensors. The module provides ground to the air temperature sensors through the low reference circuits. The HVAC control module monitors the voltage drops across the air temperature sensors and uses the inputs for automatic control calculations. The HVAC control module also uses the ambient air temperature input to calculate the value of the ambient air temperature display.

When the air temperatures are cold, the resistances of the sensors are high and the voltage signals are high. When the air temperatures are hot, the resistances of the sensors are low and the voltage signals are low.

CONDITIONS FOR RUNNING THE DTC
The ignition is turned ON.

CONDITIONS FOR SETTING THE DTC
The HVAC control module determines that the voltage applied to the input for the air temperature sensor is less than 0.09 V, for B0332 and B0337, or more than 4.9 V, for B0333 and B0338.

ACTION TAKEN WHEN THE DTC SETS
- The HVAC control module will store the trouble code in memory.
- A default value will be used for the sensor data by the HVAC control module to allow the A/C system to operate.

CONDITIONS FOR CLEARING THE DTC
- The DTC will become history if the HVAC control module no longer detects a failure.
- The history DTC will clear after 100 fault free ignition cycles.
- The DTC can be cleared with a scan tool.

DIAGNOSTIC AIDS
If condition not present, refer to Testing for Intermittent and Poor Connections in Diagnostic Aids.

TEST DESCRIPTION

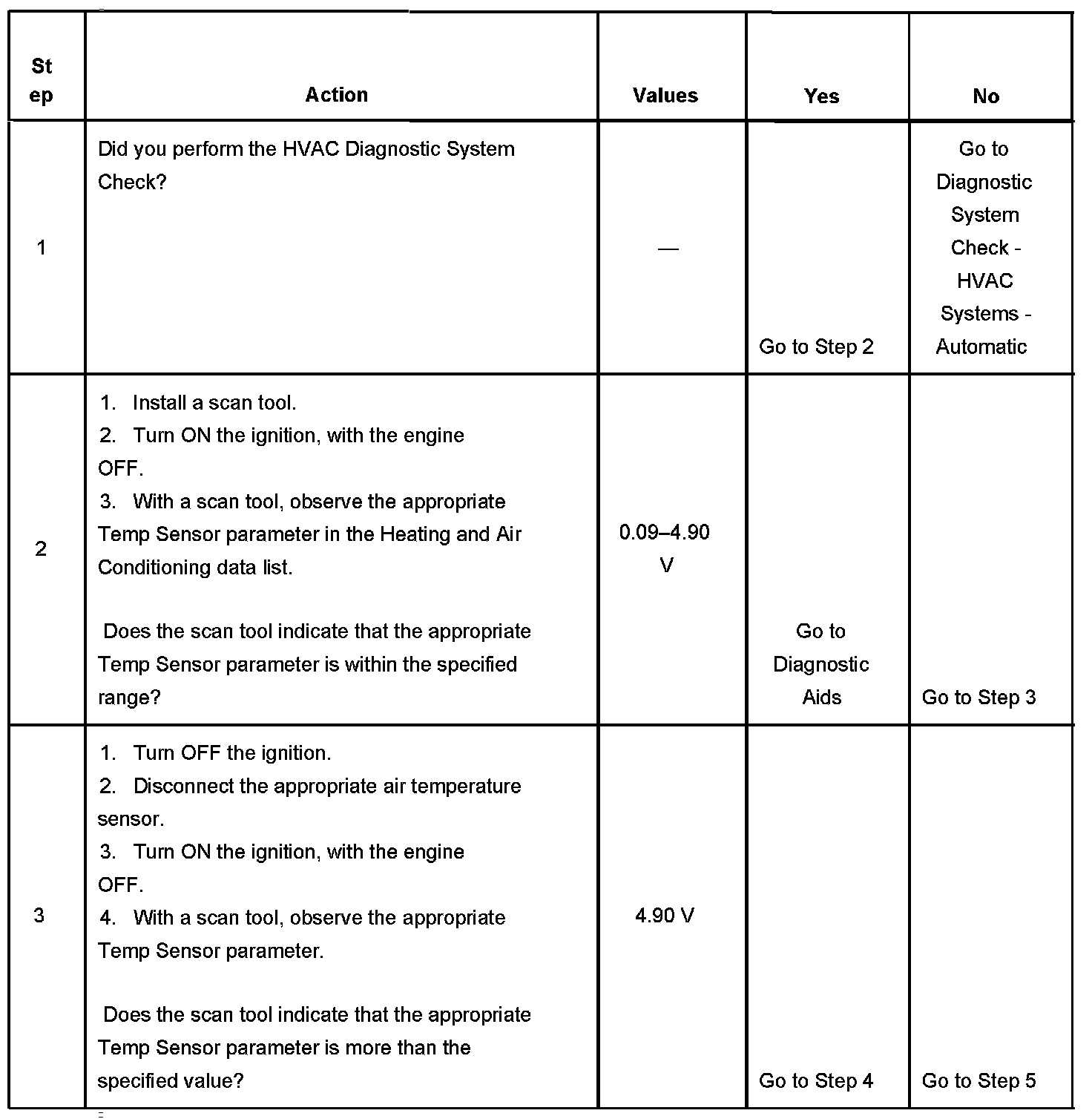

Steps 1-3:

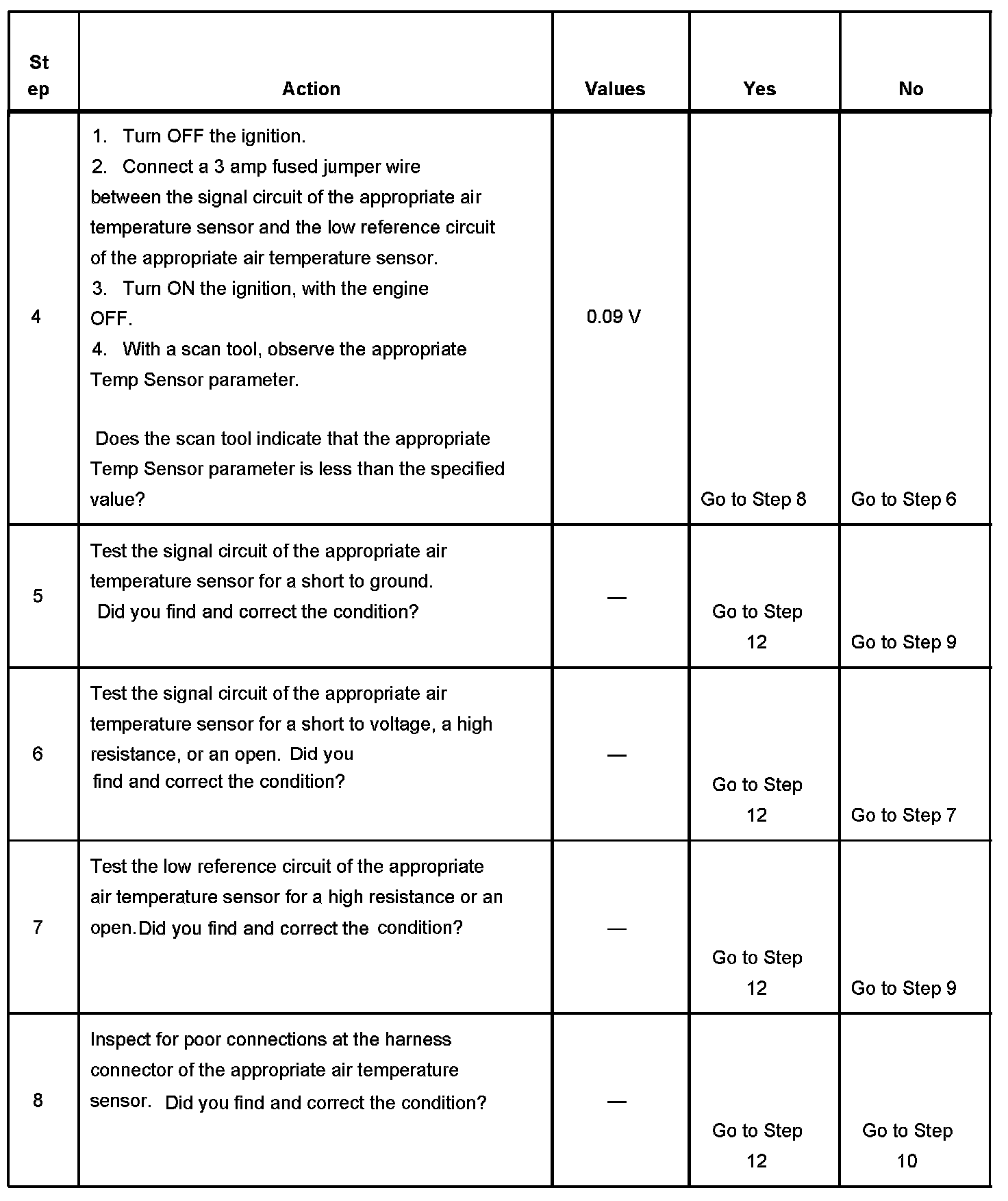

Steps 4-8:

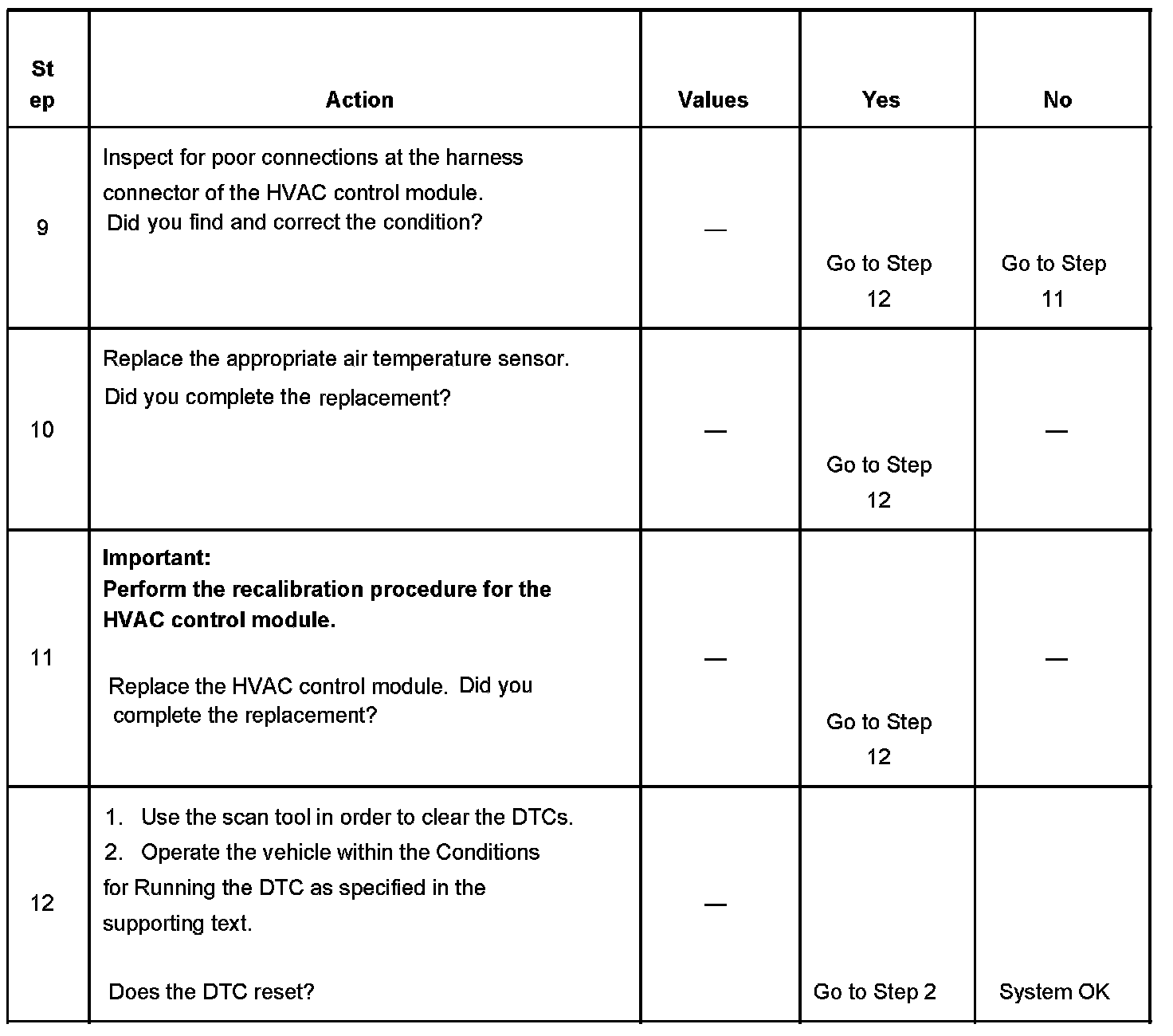

Steps 9-12:

The numbers below refer to the step numbers on the diagnostic table.
3. Tests for the proper operation of the circuit in the high voltage range.
4. Tests for the proper operation of the circuit in the low voltage range. If the fuse in the jumper opens when you perform this test, the signal circuit is shorted to voltage.
