Power and Ground Distribution
>>
Fuse
>>
Application and ID
>>
Fuse Block, Left I/P
Fuse Block, Left I/P

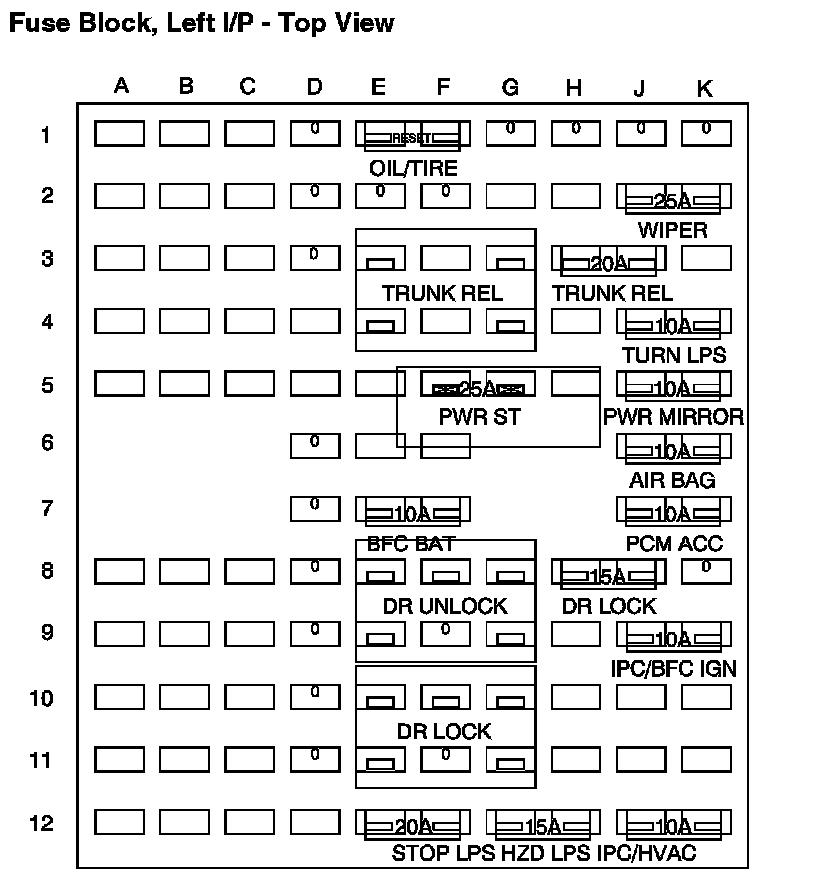

Location View:

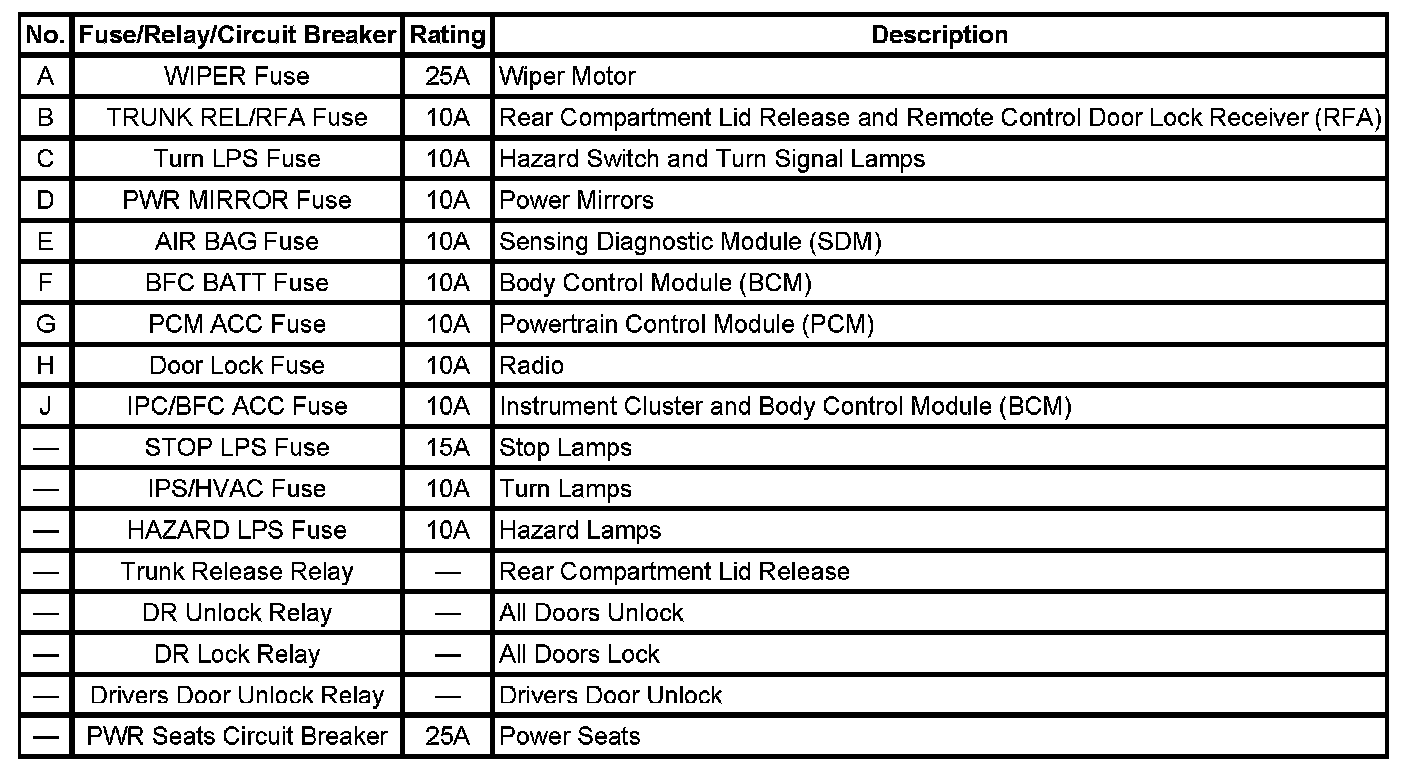

Application Table:

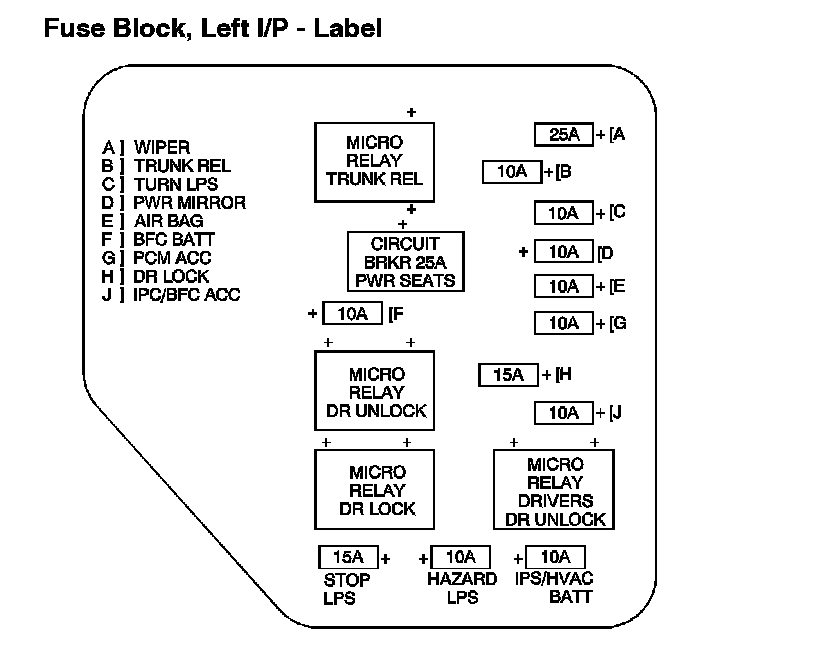

Location View:

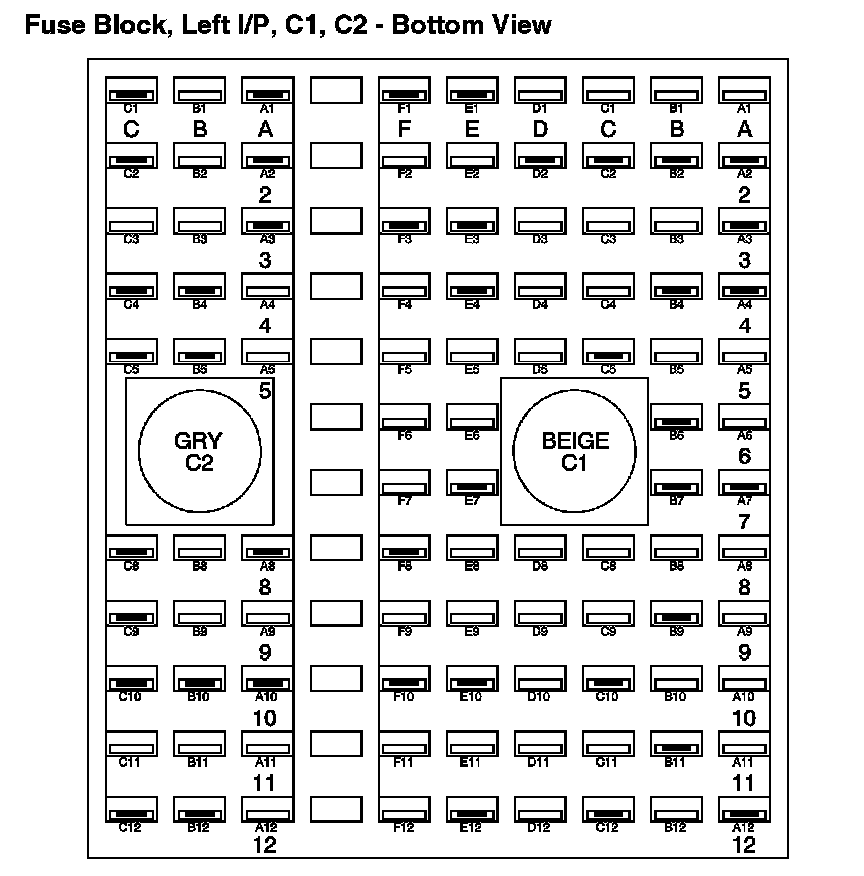

Location View:

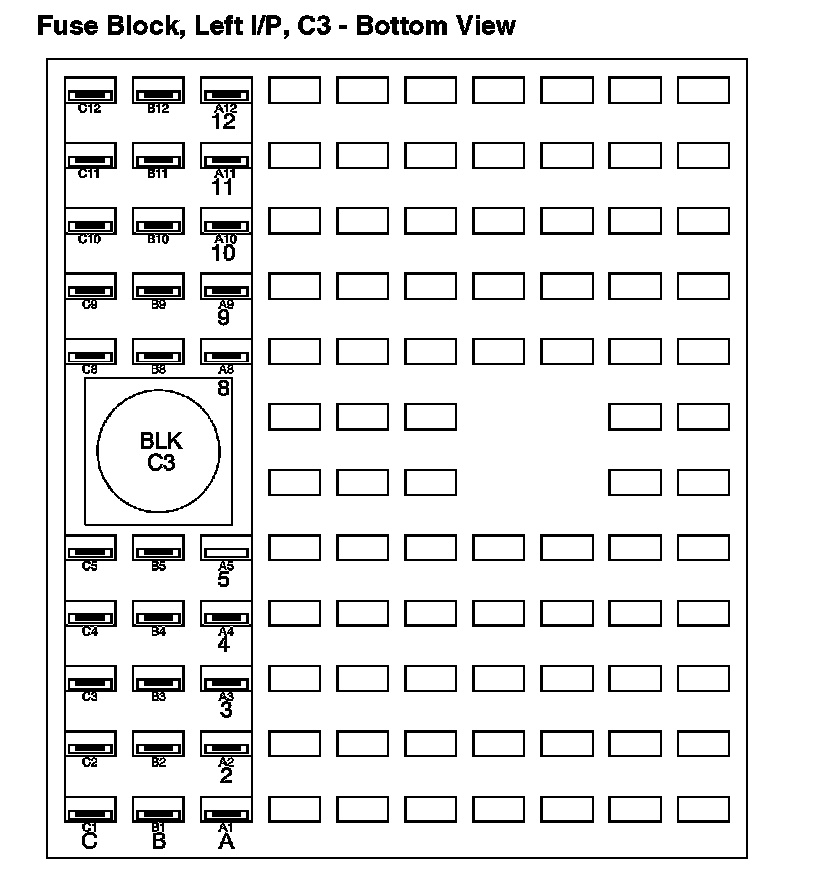

Location View:
