Chevrolet
>>
2004
>>
Classic L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>
Junction Block Underhood, C7 (With RPO Code JM4)
Junction Block Underhood, C7 (With RPO Code JM4)

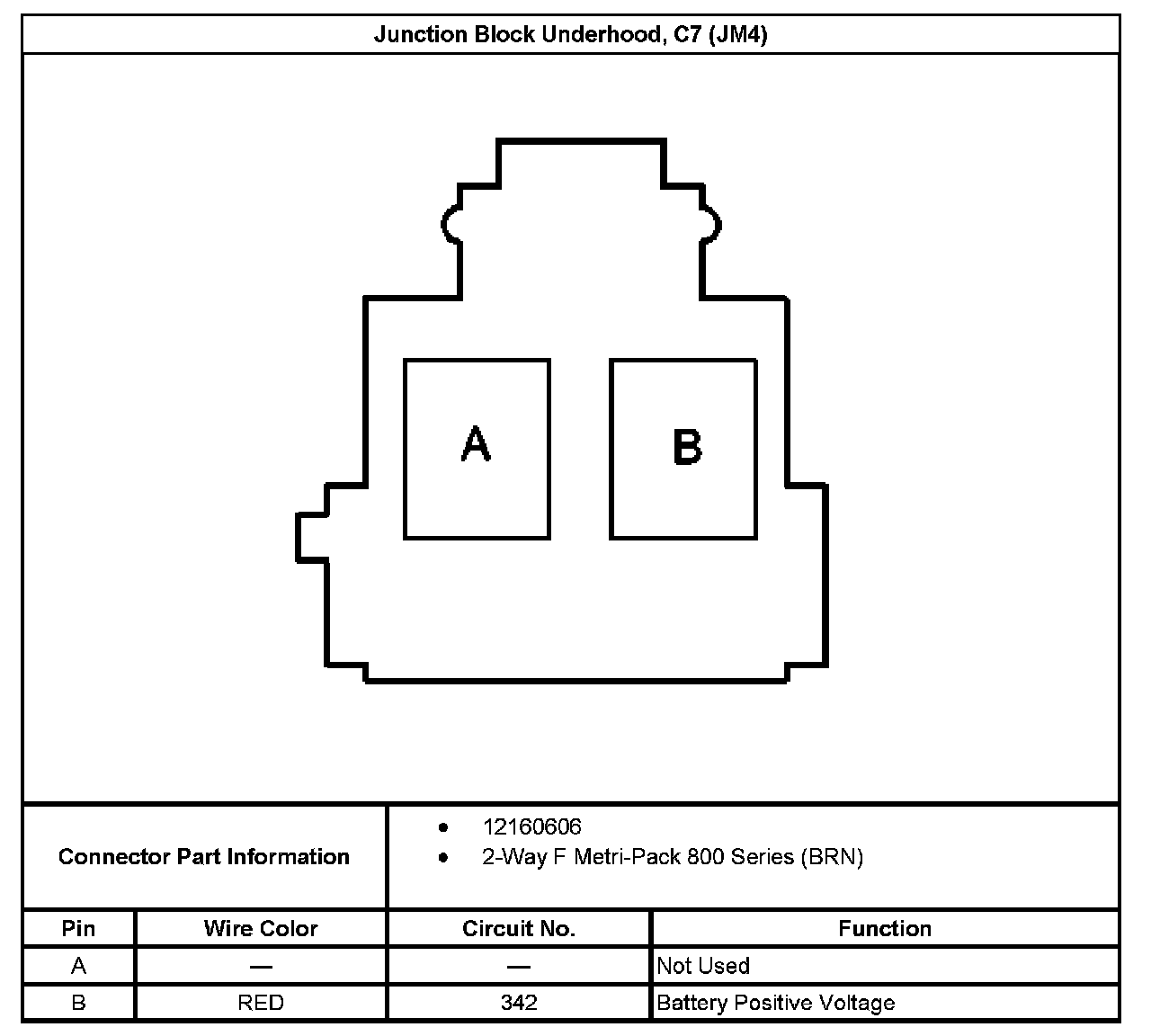

Junction Block Underhood, C7 (With RPO Code JM4):
