Wiper Motor - Rear

WIPER MOTOR REPLACEMENT - REAR
REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.
Battery Disconnect Caution







1. Disconnect the negative battery cable.
2. Remove the rear window wiper arm.
3. Remove the hatchback door lower garnish molding.

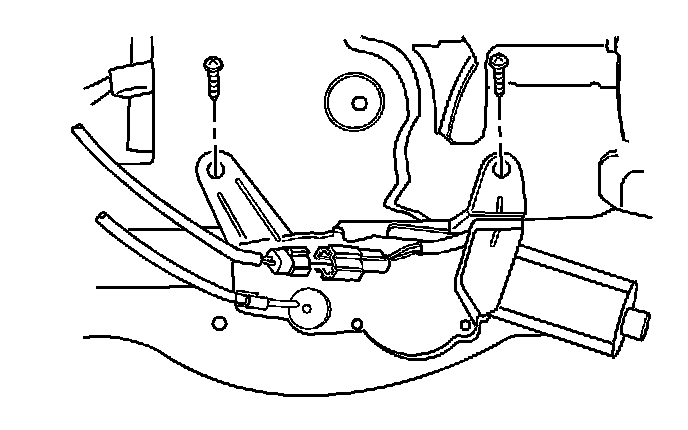

4. Remove the bolts and the rear wiper motor.
5. Disconnect the electrical connector.



INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.
Fastener Notice







1. Connect the electrical connector.

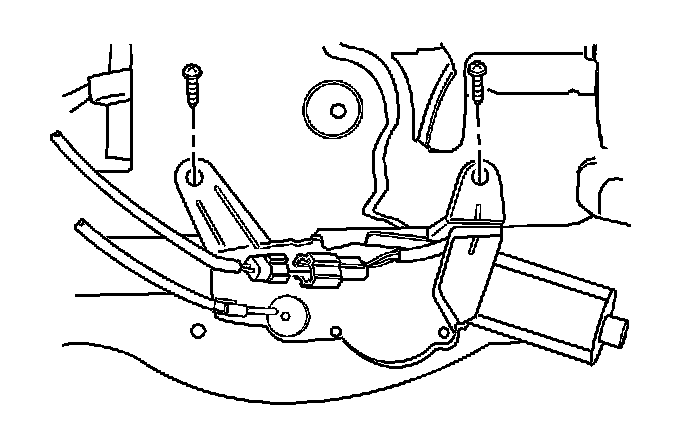

2. Install the rear wiper motor with the bolts.

Tighten
Tighten the wiper motor bolts to 9 N.m (80 lb in).

3. Install the hatchback door lower garnish molding.
4. Install the rear window wiper arm.
5. Connect the negative battery cable.
