Wiper Arm - Rear

WIPER ARM REPLACEMENT - REAR







REMOVAL PROCEDURE

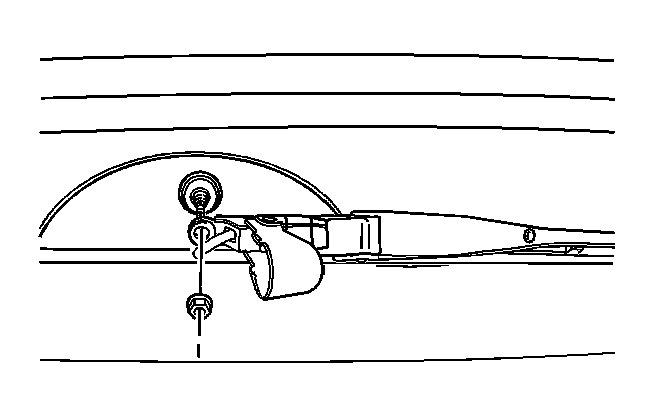

1. Open the wiper arm access cap.
2. Remove the nut and the rear wiper arm.



INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.
Fastener Notice







1. Install the rear wiper arm with the nut.

Tighten
Tighten the wiper arm nut to 11 N.m (97 lb in).

2. Close the wiper arm access cap.
