Clutch Release Fork: Service and Repair

Clutch Release Arm Replacement

Removal Procedure





1. Mark the clutch release arm location to the release shaft position.
2. Remove the adjusting nut (1) for the clutch cable.
3. Remove the clutch control cable (2) from the release arm.

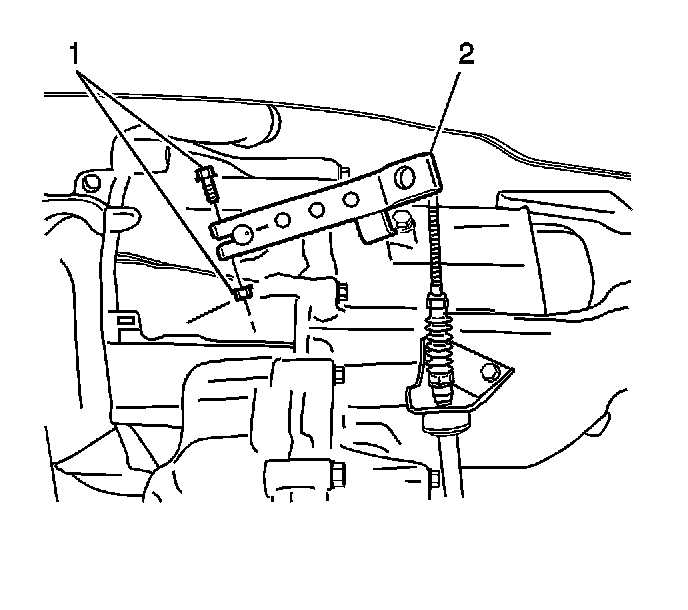

4. Remove the clutch release am retaining bolt and nut (1).
5. Remove the release arm (2).

Installation Procedure






1. Notice: Refer to Fastener Notice in Cautions and Notices.

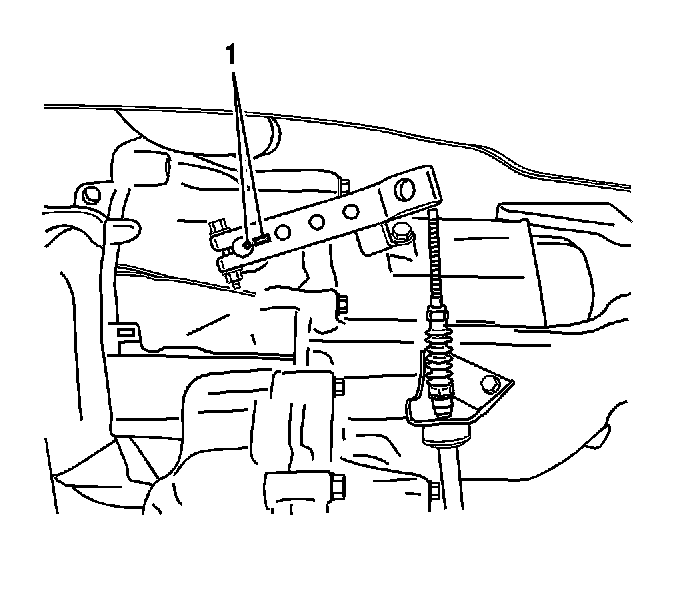

Install the release arm to release shaft and align to the marked position (1).
Tighten the release arm bolt and nut to 16 Nm (12 ft. lbs.).
2. Install the clutch control cable to the release arm and install the clutch control cable adjusting nut.
3. Adjust the clutch cable.
