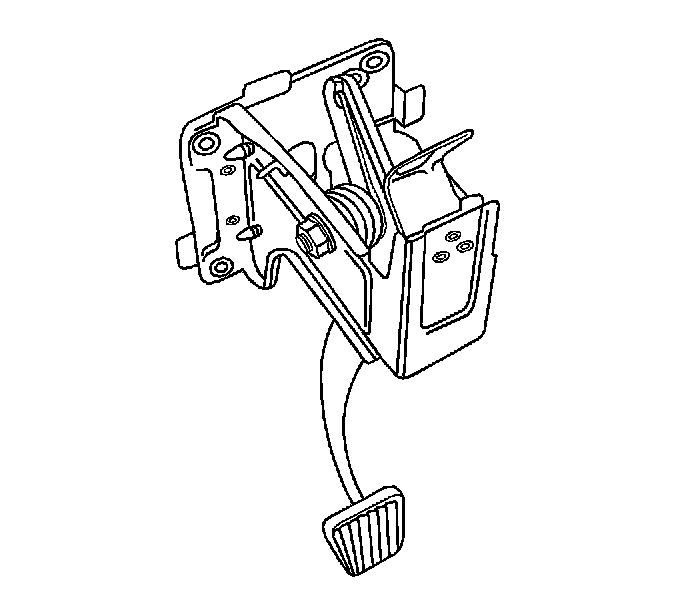

Clutch Pedal Replacement (Cable)

Removal Procedure






1. Caution: Refer to Battery Disconnect Caution in Cautions and Notices.

Disconnect the clutch cable.
2. Remove the clutch pedal bracket mounting bolts from the cowl.
3. Release the clutch pedal return spring.
4. Remove the clutch pedal shaft nut.
5. Remove the clutch pedal shaft.
6. Remove the clutch pedal from the mounting bracket.
7. Remove the clutch pedal mounting shaft bushings.
8. Remove the clutch pedal return spring.

Installation Procedure






1. Important: Be sure to coat the clutch pedal shaft, the bushings and the spring with grease.

Install the clutch pedal return spring.
2. Install the clutch pedal mounting shaft bushings.
3. Install the clutch pedal to the mounting bracket.
4. Install the clutch pedal shaft.

Notice: Refer to Fastener Notice in Cautions and Notices.

5. Install the clutch pedal shaft nut.
Tighten the clutch pedal mounting shaft nut to 20 Nm (15 ft. lbs.).
6. Re-attach the clutch pedal return spring to the clutch pedal.
7. Install the clutch cable.
8. Adjust the clutch cable.
