Functional Test Procedure

Functional Test Procedure

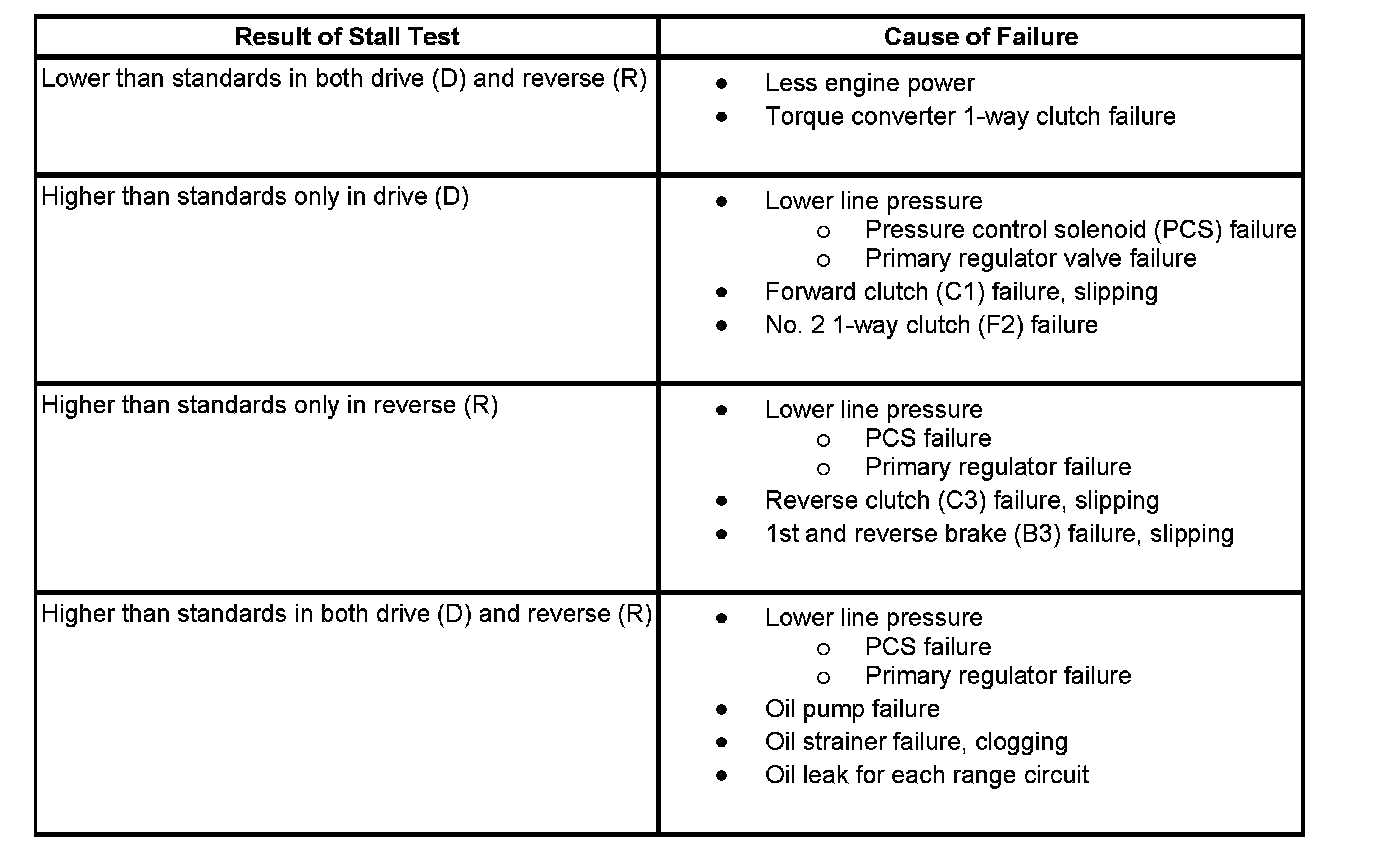

The purpose of the stall test is to inspect overall performance of the A/T and the engine by measuring the stall speed in drive (D) and reverse (R) range.
1. Wedge the 4 wheels and fully apply the parking brake. Lock the vehicle in place.
2. Fully press on the brake pedal with left foot.

3. Important: Do not continuously run longer than 5 seconds, extreme increasing of the oil temperature may occur.

Shift into drive (D) and reverse (R) range, fully press on accelerator pedal with right foot.
The standard stall speed is 2,240 - 2,540 RPM.





Make sure to keep interval for more than 1 minute between stall tests.
