Gearshift Control Lever Replacement
Gearshift Control Lever ReplacementRemoval Procedure
1. Caution: Refer to Battery Disconnect Caution in Service Precautions.
Notice: Refer to Transmission Selector Shaft Abuse Notice in Service Precautions.
Disconnect the negative battery cable.
2. Remove the floor console.

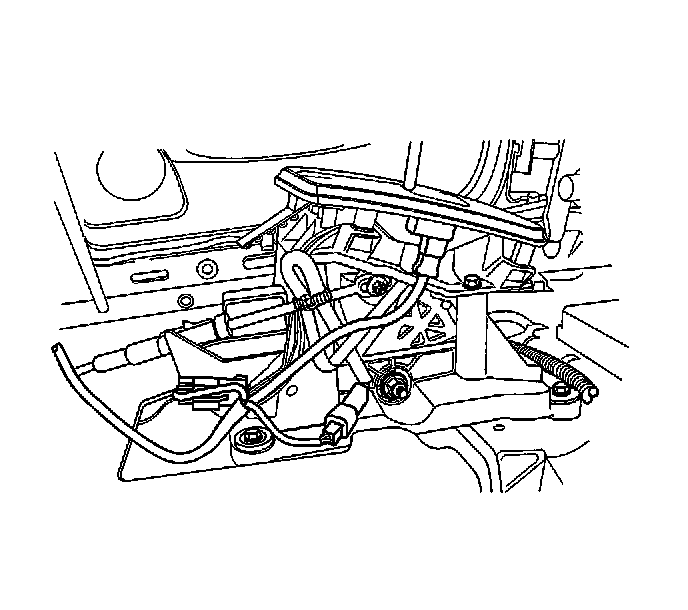

3. Disconnect the wiring harness connectors from the shift control lever.

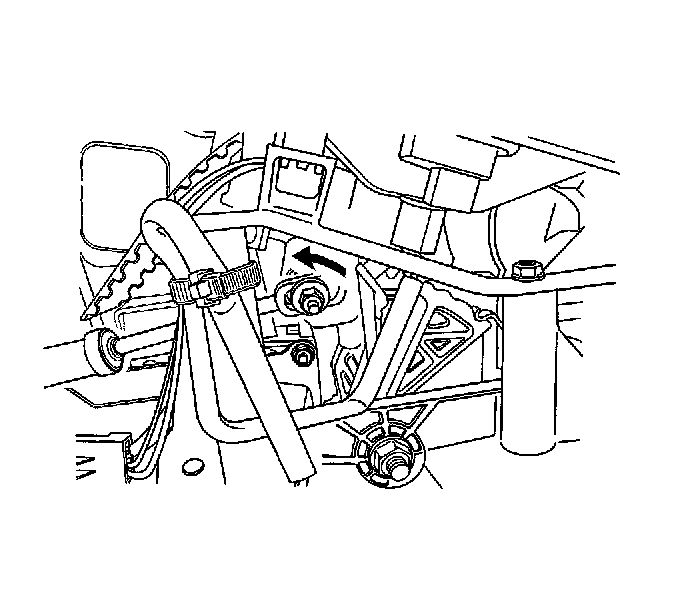

4. Loosen the control cable adjusting nut.
5. Disconnect the control cable from the shift control lever assembly.

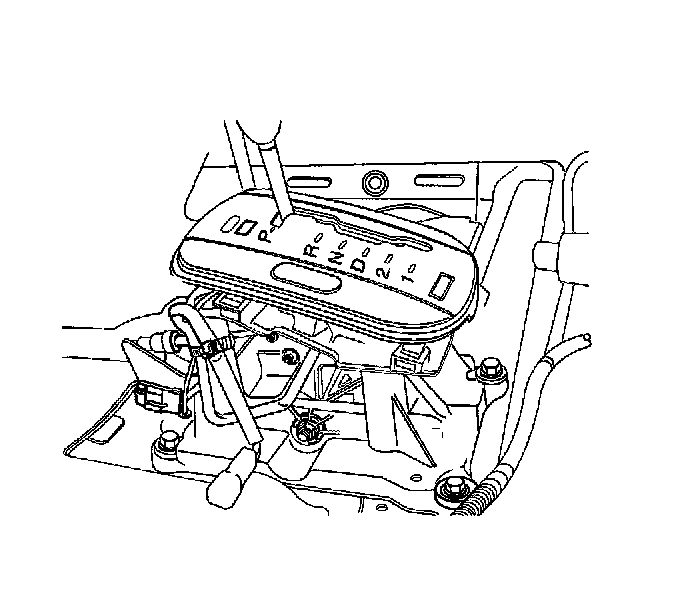

6. Remove the shift control lever assembly mounting bolts.
7. Remove the shift control lever assembly.
Installation Procedure
1. Notice: Refer to Fastener Notice in Service Precautions.
Install the shift control lever assembly and mounting bolts.
Tighten the shift control lever assembly mounting bolts to 8 Nm (71 inch lbs.).
2. Connect the control cable to the shift control lever assembly.
3. Tighten the control cable adjusting nut.
Tighten the control cable adjusting nut to 8 Nm (71 inch lbs.).
4. Connect the harness connector.
5. Adjust the control cable.
6. Install the floor console.
7. Connect the negative battery cable.
