Oil Pump Assemble

Oil Pump Assemble

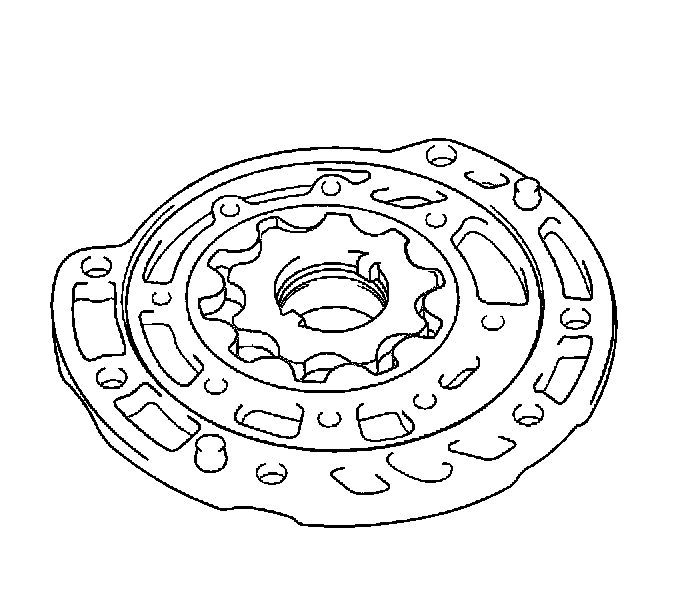

1. Install the oil pump drive gear and driven gear.





2. Align the stator shaft with each bolt hole.

3. Notice: Refer to Fastener Notice in Cautions and Notices.

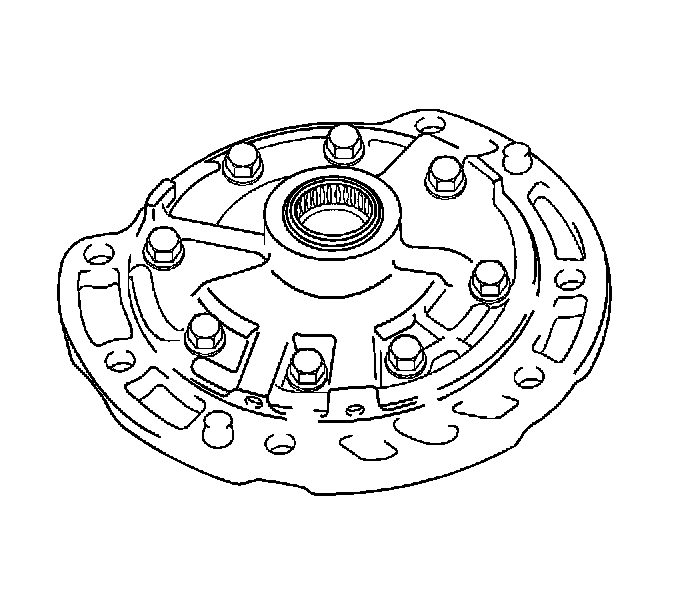

Install the 8 bolts.
Tighten the bolts to 9.8 Nm (87 inch lbs.).






4. Notice: Use extreme care when working around oil seals.
Damage to the lip of a seal will cause oil leaks.

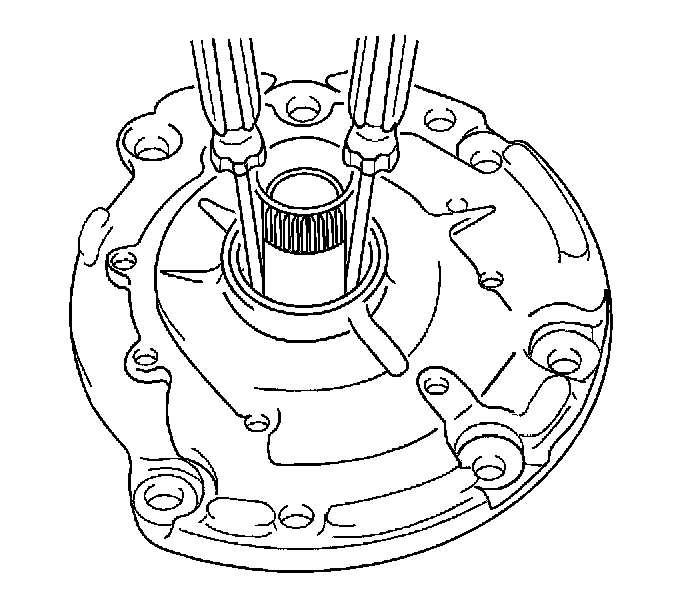

Turn the drive gear with 2 screwdrivers and make sure it rotates smoothly.
