Stabilizer Link: Service and Repair

Stabilizer Shaft Link Replacement

Removal Procedure






1. Lift and suitably support the vehicle, allowing the front suspension to hang free.

Notice: Refer to Vehicle Lifting and Jacking Notice in Service Precautions.

2. Remove the front wheel.

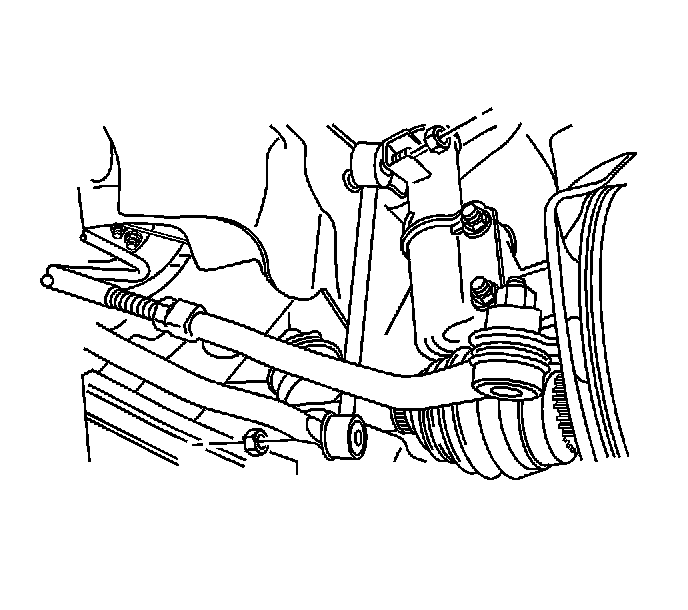

3. Remove the stabilizer shaft-to-knuckle nut and the shaft-to-link nut.





4. Disconnect the stabilizer shaft from the knuckle by removing the stabilizer shaft link assembly.

Installation Procedure

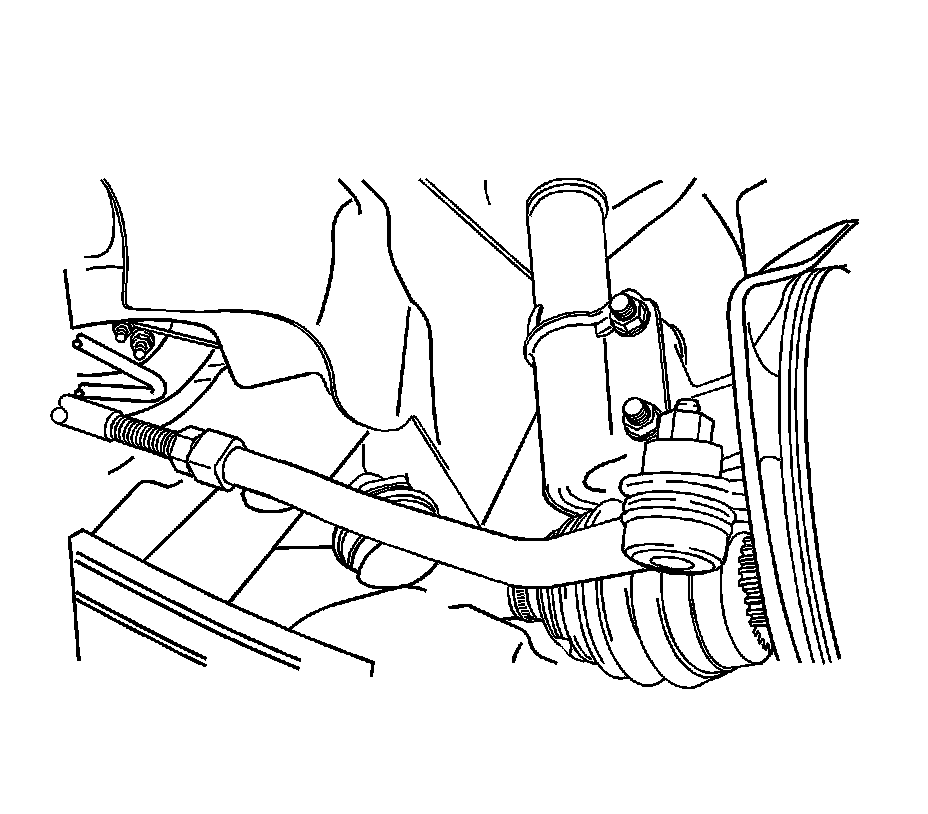

1. Install the stabilizer shaft into the vehicle.

2. Install the stabilizer shaft-to-knuckle nut and the shaft-to-link nut.
Tighten the stabilizer shaft link nuts to 50 Nm (37 ft. lbs.).

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the front wheel.
4. Lower the vehicle.
