Power Steering Fluid Reservoir: Service and Repair

Power Steering Fluid Reservoir Replacement

Removal Procedure





1. Siphon the power steering fluid from the fluid reservoir.

2. Notice: The hoses must be plugged just after removal to prevent foreign material contaminants from entering the power steering system. Contamination could lead to deterioration of the steering components and loss of steering action.

Loosen the hose clamps and remove both hoses.

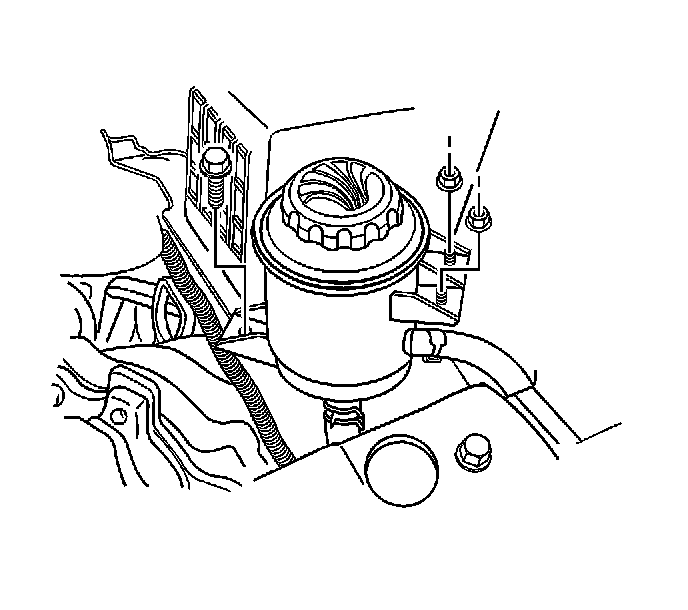

3. Remove the fluid reservoir attaching bolts and remove the fluid reservoir.

Installation Procedure







1. Notice: Refer to Fastener Notice in Service Precautions.

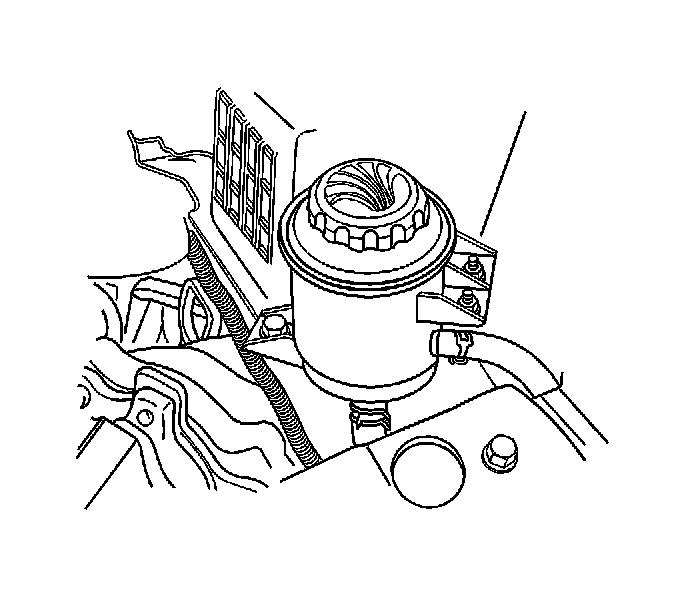

Attach the fluid reservoir with the power steering fluid reservoir attaching bolts.
Tighten the power steering fluid reservoir attaching bolts to 7 Nm (62 inch lbs.).





2. Connect both hoses and secure the hose clamps.

3. Notice: When adding fluid or making a complete fluid change, always use a power steering fluid meeting GM Spec. No. 9985010 or equivalent. Fluid for cold climates is also available through GM Dealerships; refer to Specifications for further information. Failure to use the proper power steering fluid can cause power steering hose and seal damage, fluid leaks and pump failure.

Fill the fluid reservoir with power steering fluid.
4. Inspect for leaks. If there are leaks, correct the cause of the leaks and bleed the system.
