Impact Sensor: Service and Repair

INFLATABLE RESTRAINT SIDE IMPACT SENSOR REPLACEMENT

REMOVAL PROCEDURE

CAUTION:
- Refer to SDM Voltage After Ignition Is Turned OFF Caution in Service Precautions.
- Refer to Battery Disconnect Caution in Service Precautions.




1. Disconnect the negative battery cable.
2. Remove the trim from the center pillar.

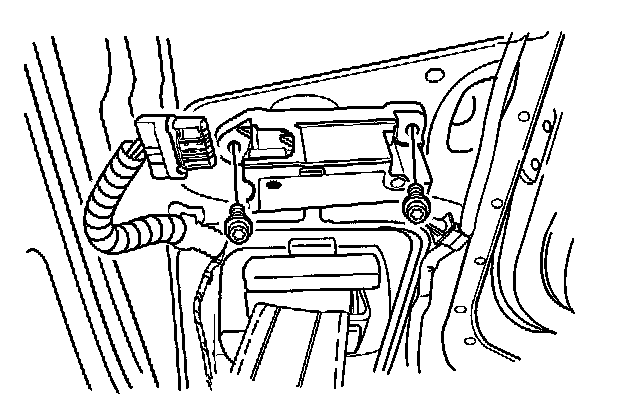

3. Remove the side air bag sensor mounting bolts.
4. Remove the side air bag sensor.

INSTALLATION PROCEDURE




1. Install the side air bag sensor.

NOTE: Refer to Fastener Notice in Service Precautions.

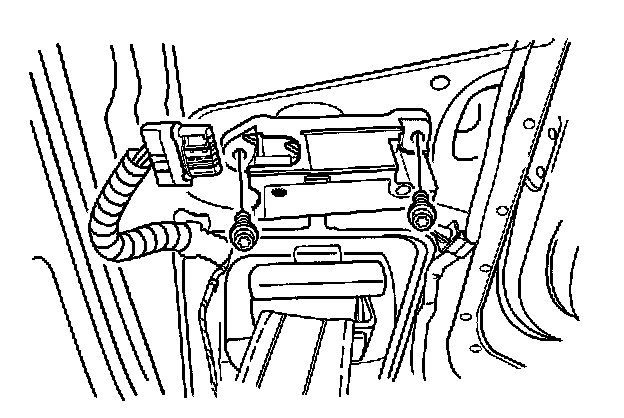

2. Install the side air bag sensor mounting bolts.

Tighten
Tighten the side air bag sensor mounting bolts to 10 N.m (89 lb in).

3. Install the trim to the center pillar.
4. Connect the negative battery cable.
