Home >> Chevrolet >> 2004 >> Aveo L4-1.6L VIN 6 >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Seat Belt Indicator Circuit Malfunction

Seat Belt Indicator Circuit Malfunction

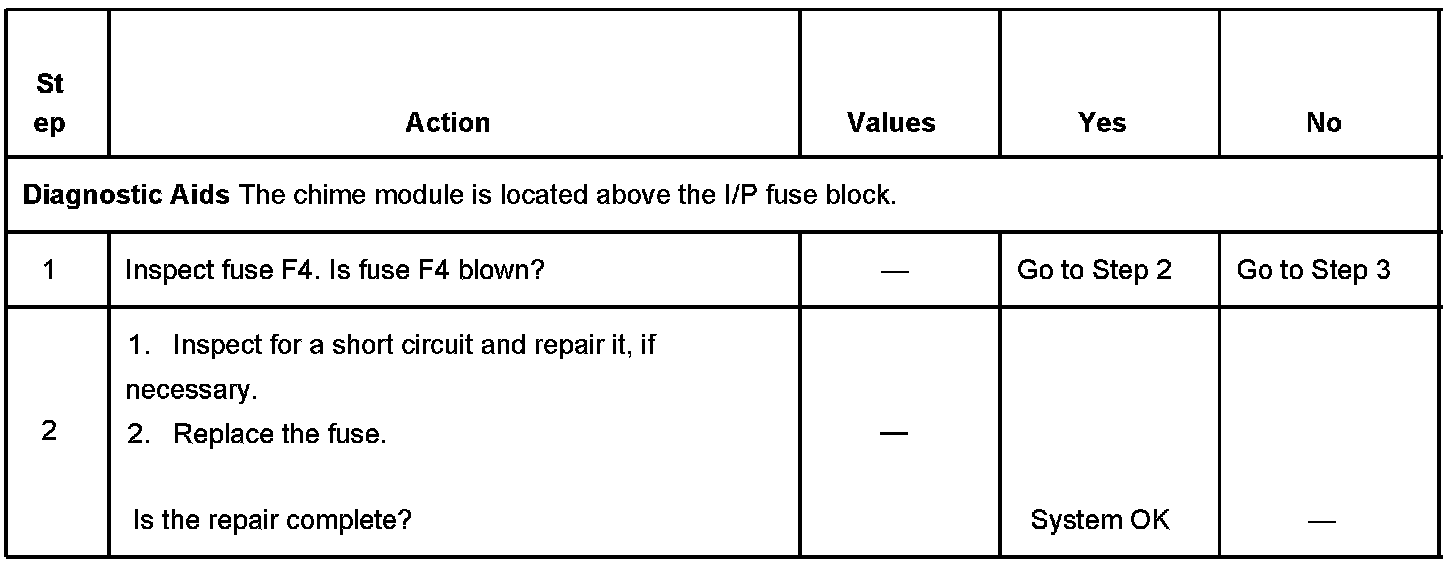

Steps 1-2:

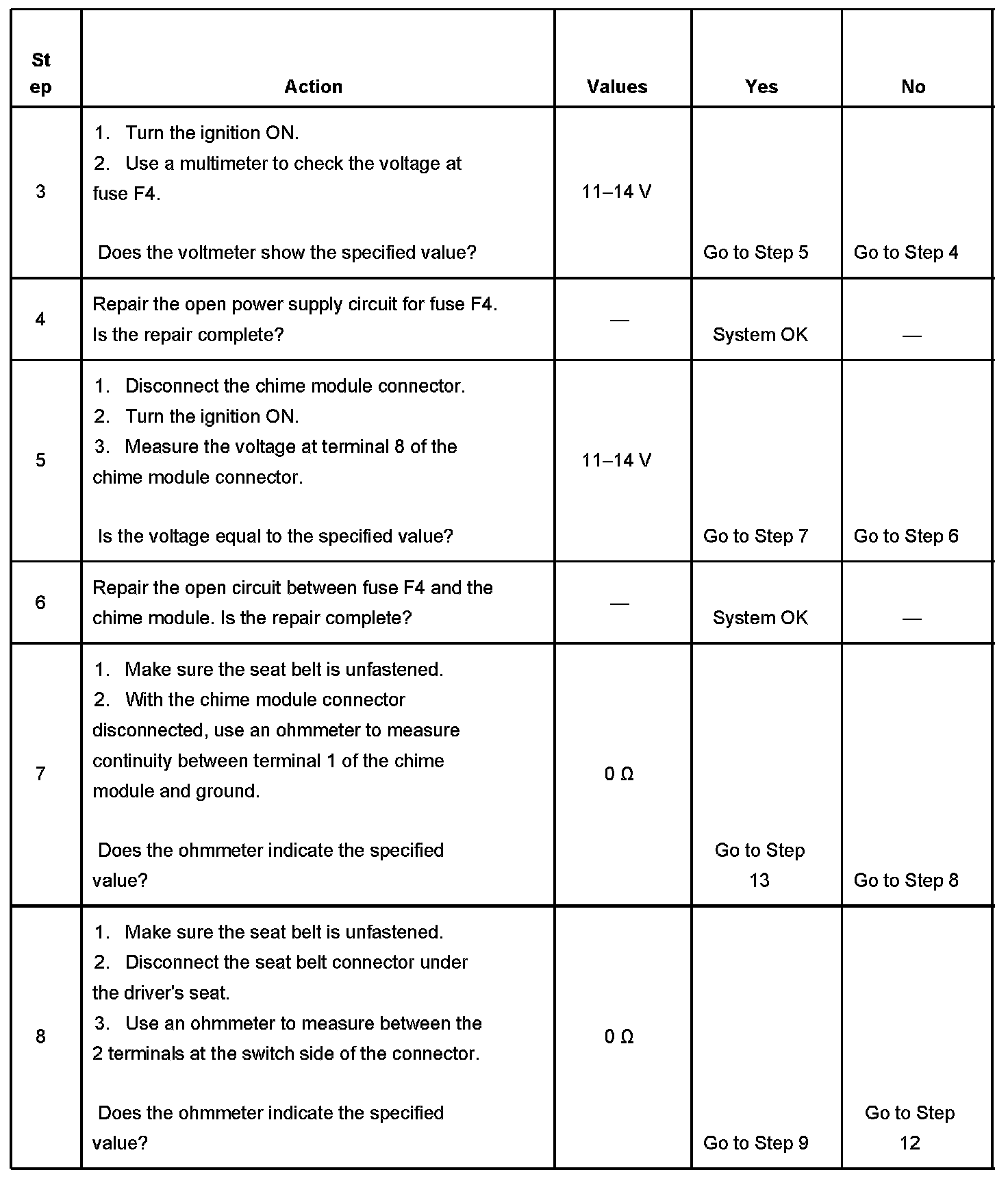

Steps 3-8:

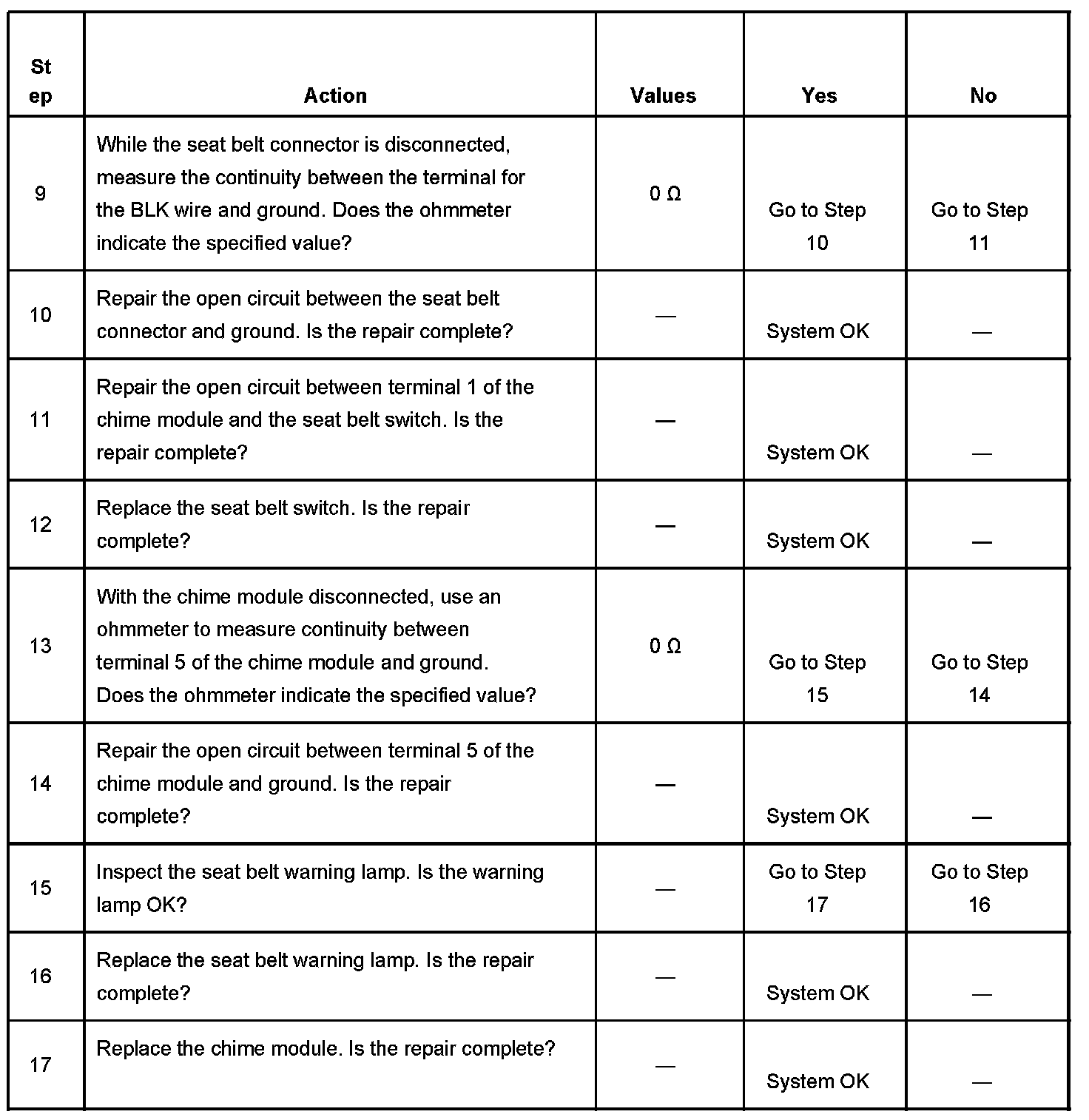

Steps 9-17:
