Seat Belt Replacement - Front
SEAT BELT REPLACEMENT - FRONTREPAIR PROCEDURE

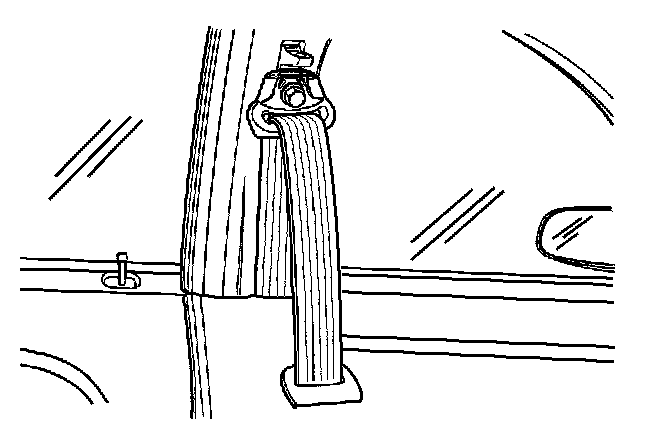

1. Remove the bolt and the seat belt anchor on the upper center pillar.
2. Remove the lower center pillar trim panel.

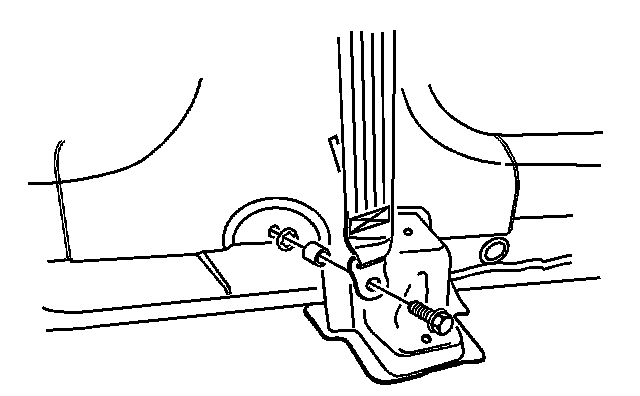

3. Remove the bolt and the seat belt anchor on the lower center pillar.

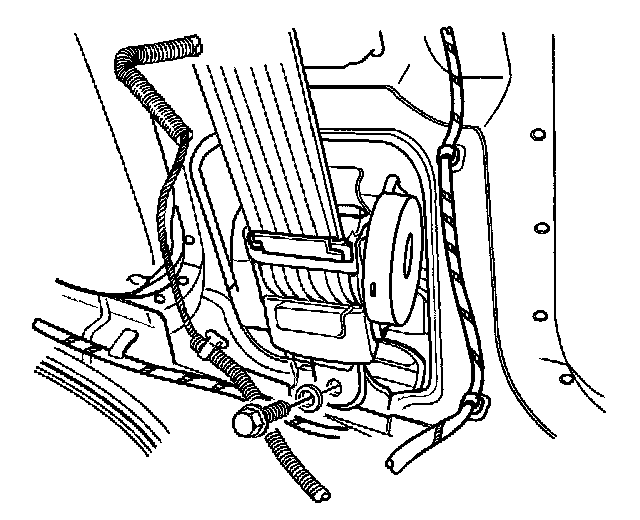

4. Remove the bolt and the seat belt retractor.
INSTALLATION PROCEDURE
NOTE: Refer to Fastener Notice in Service Precautions.

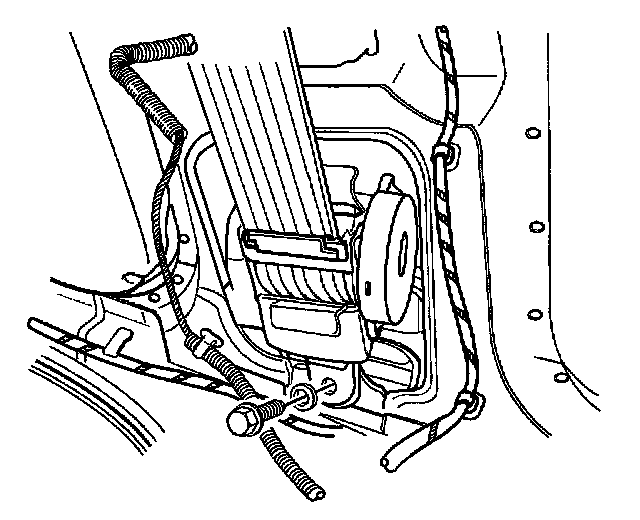

1. Install the seat belt retractor with the bolt.
Tighten
Tighten the seat belt retractor bolt to 38 N.m (28 lb ft).

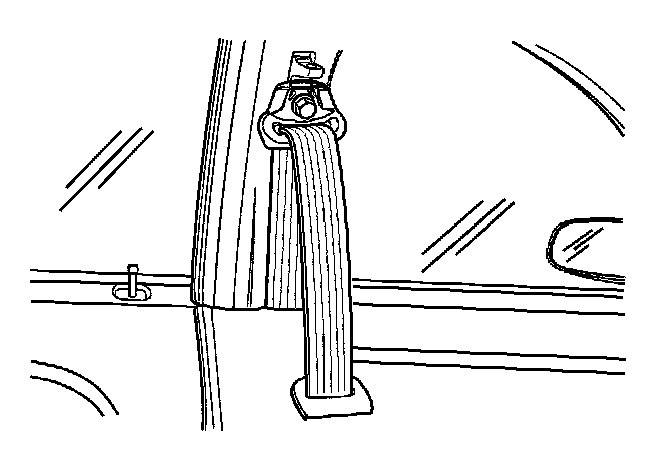

2. Install the seat belt anchor to the upper center pillar with the bolt.
Tighten
Tighten the seat belt anchor bolt to 38 N.m (28 lb ft).
3. Install the lower center pillar trim panel.

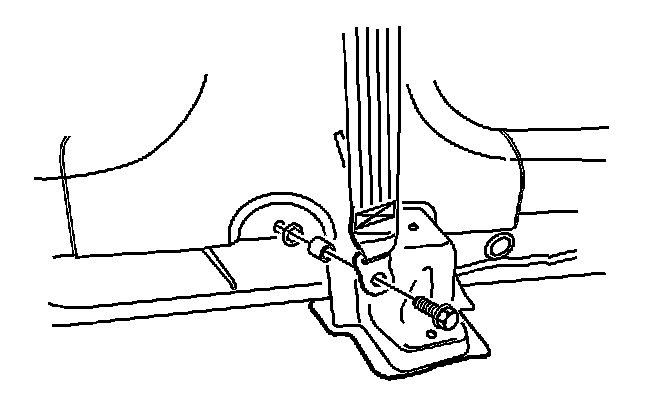

4. Install the seat belt anchor to the lower center pillar with the bolt.
Tighten
Tighten the seat belt anchor bolt to 38 N.m (28 lb ft).
