Side Air Bag: Diagrams

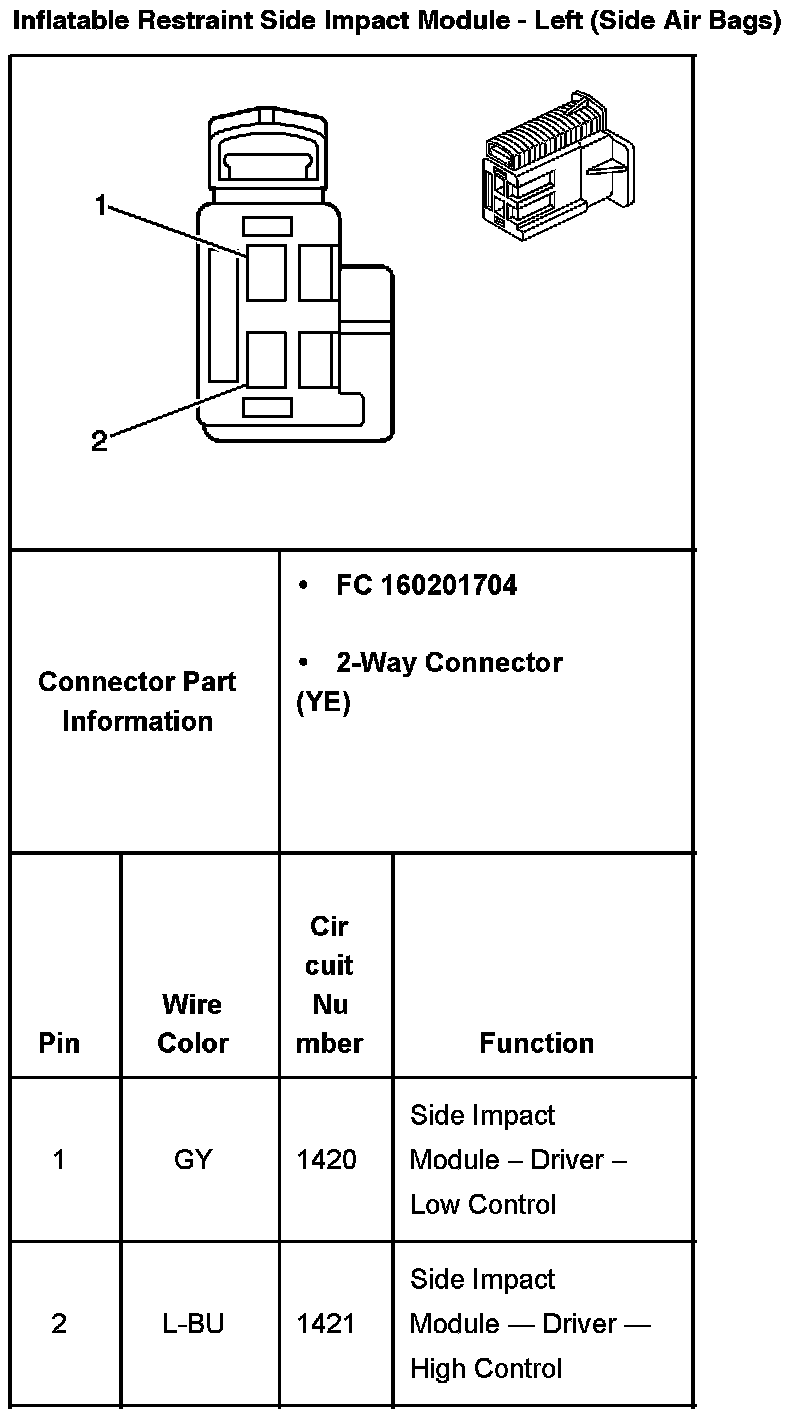

Inflatable Restraint Side Impact Module - Left (Side Air Bags):

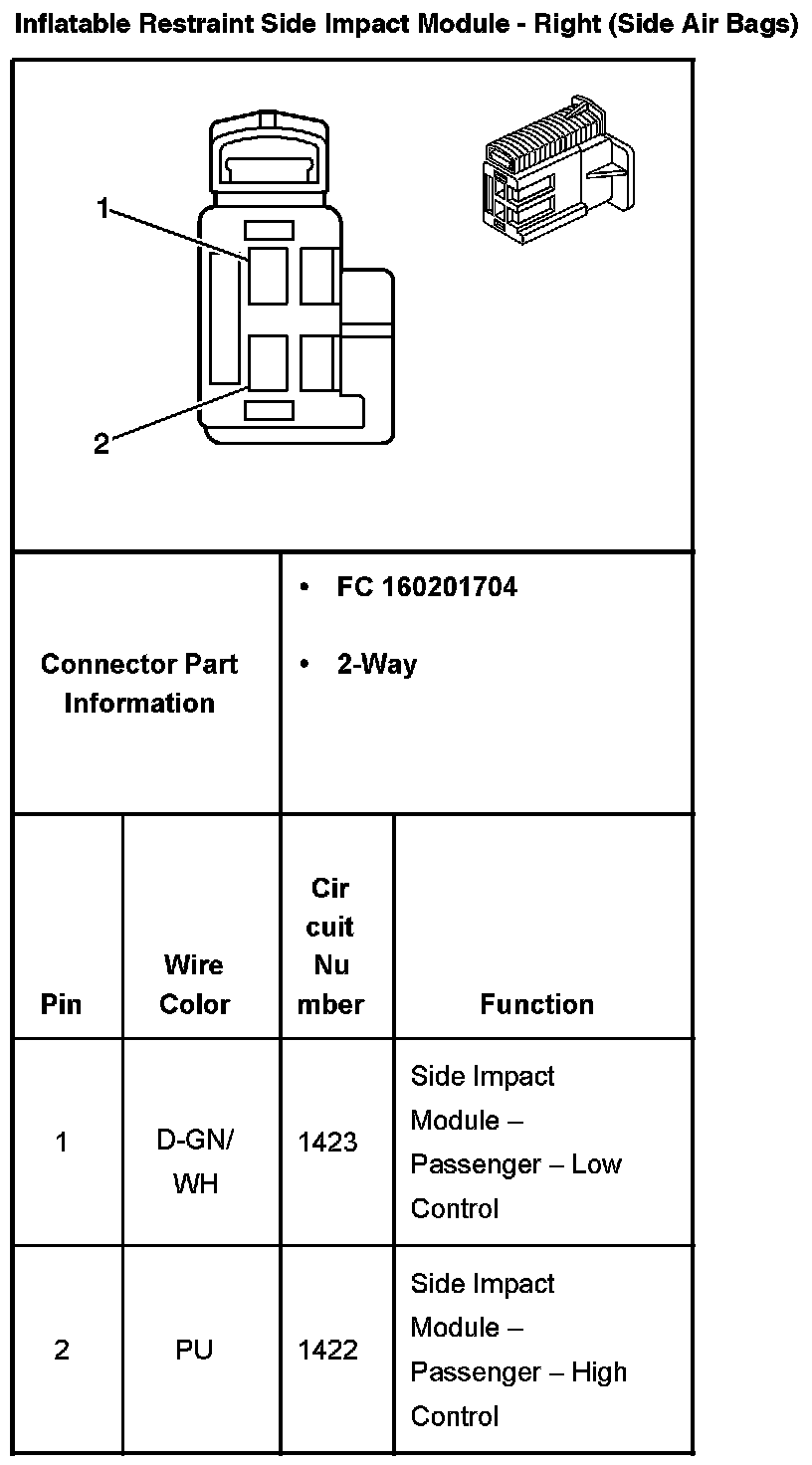

Inflatable Restraint Side Impact Module - Right (Side Air Bags):
