Home
>>
Chevrolet
>>
2004
>>
Aveo L4-1.6L VIN 6
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Auxiliary Power Outlet
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

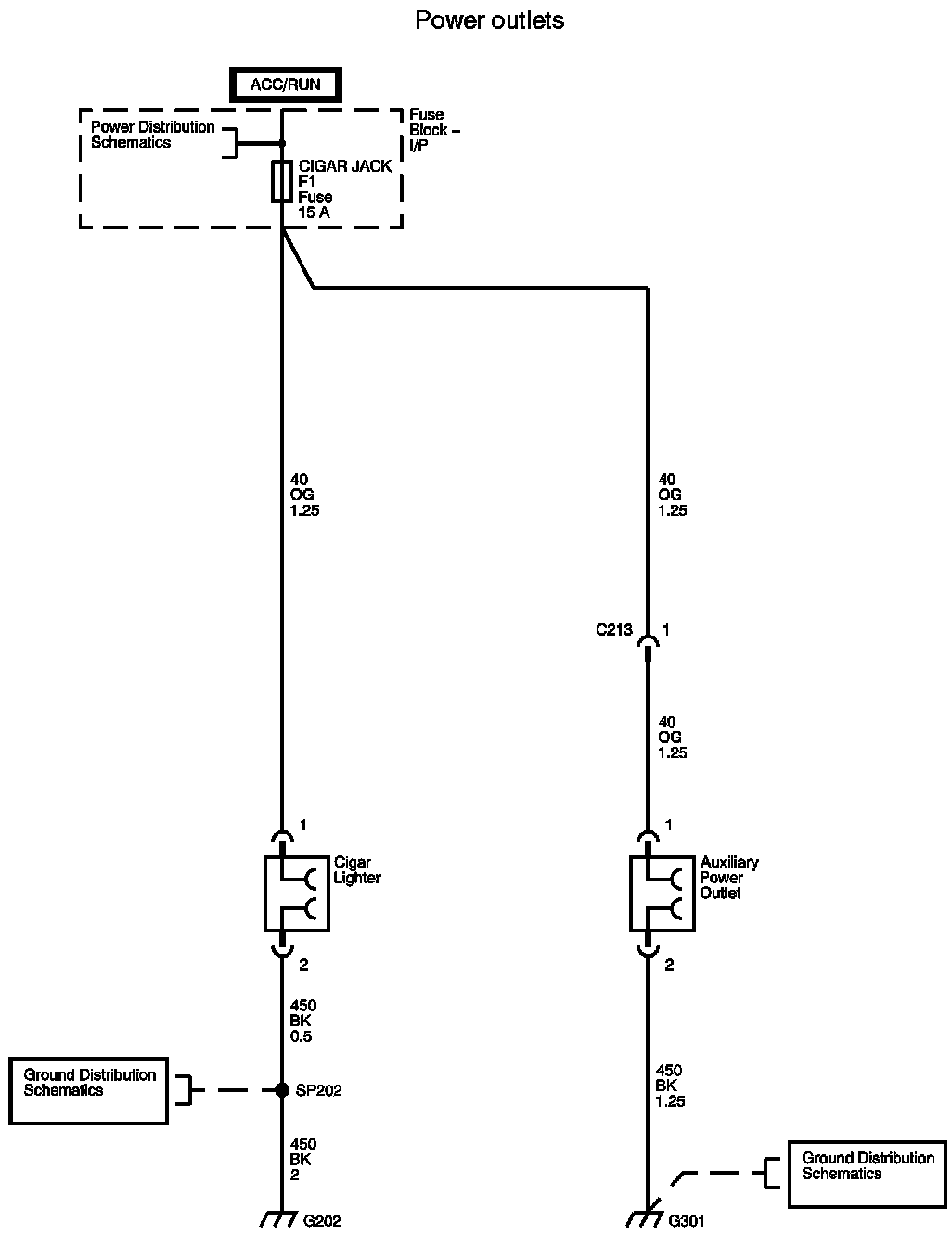

Cigar Lighter/Auxilliary Outlets Diagram:
