TAIL LAMP REPLACEMENT (NOTCHBACK)

REMOVAL PROCEDURE







1. Remove the luggage compartment rear quarter trim panel.
2. Disconnect the electrical connectors.

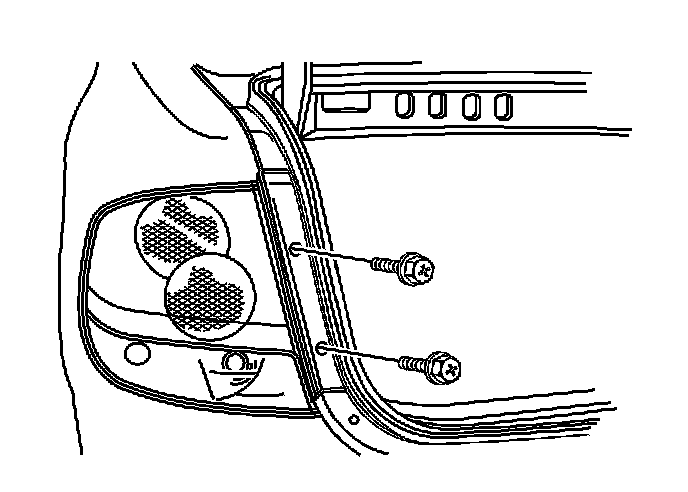

3. Remove the screws and the lamp assembly.
4. Remove the bulb(s).


INSTALLATION PROCEDURE








1. Install the bulb(s).

NOTE: Refer to Fastener Notice in Service Precautions.
Fastener Notice

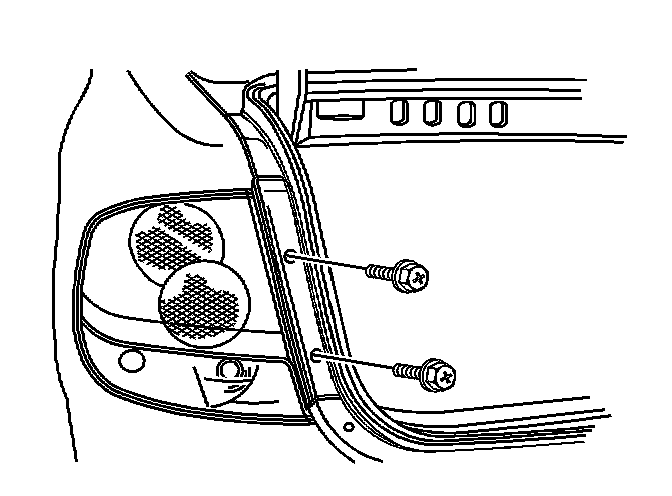

2. Install the lamp assembly with the screws.

Tighten
Tighten the tail lamp assembly nuts to 3 N.m (27 lb in).

3. Connect the electrical connectors.
4. Install the luggage compartment rear quarter trim panel.
