Hatchback

TAIL LAMP REPLACEMENT (HATCHBACK)

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.
Battery Disconnect Caution







1. Disconnect the negative battery cable.

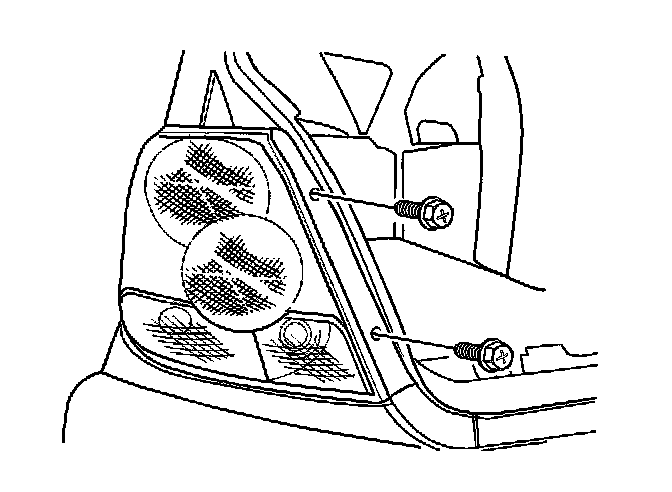

2. Remove the tail lamp assembly screws.
3. Slide the tail lamp assembly toward the hatch opening and remove it.
4. Remove the bulbs.



INSTALLATION PROCEDURE







1. Install the bulbs.

NOTE: Refer to Fastener Notice in Service Precautions.
Fastener Notice


2. Install the tail lamp assembly with the screws.

Tighten
Tighten the taillamp assembly screws to 3 N.m (27 lb in).

3. Connect the negative battery cable.
