Marker Lamp - Front Side

MARKER LAMP REPLACEMENT - FRONT SIDE

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.
Battery Disconnect Caution







1. Disconnect the negative battery cable.
2. Remove the headlamps.
3. Remove the side marker lamp.

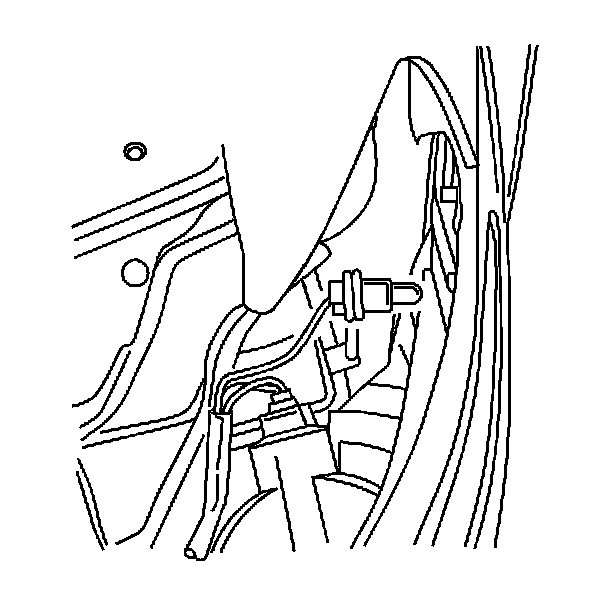

4. Remove the bulb from the side marker lamp assembly.

INSTALLATION PROCEDURE

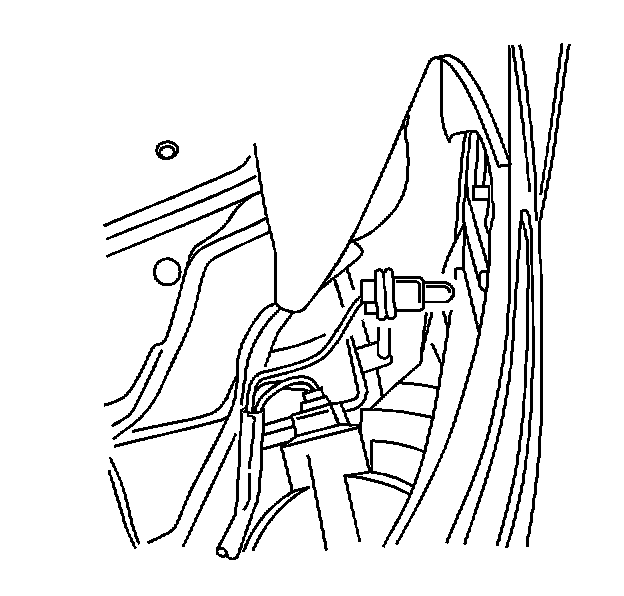

1. Install the bulb into the side marker lamp assembly.
2. Install the side marker lamp into the bumper fascia.
3. Connect the negative battery cable.
