Home >> Chevrolet >> 2004 >> Aveo L4-1.6L VIN 6 >> Repair and Diagnosis >> Lighting and Horns >> Lamp Control Module >> Diagrams

Lamp Control Module: Diagrams

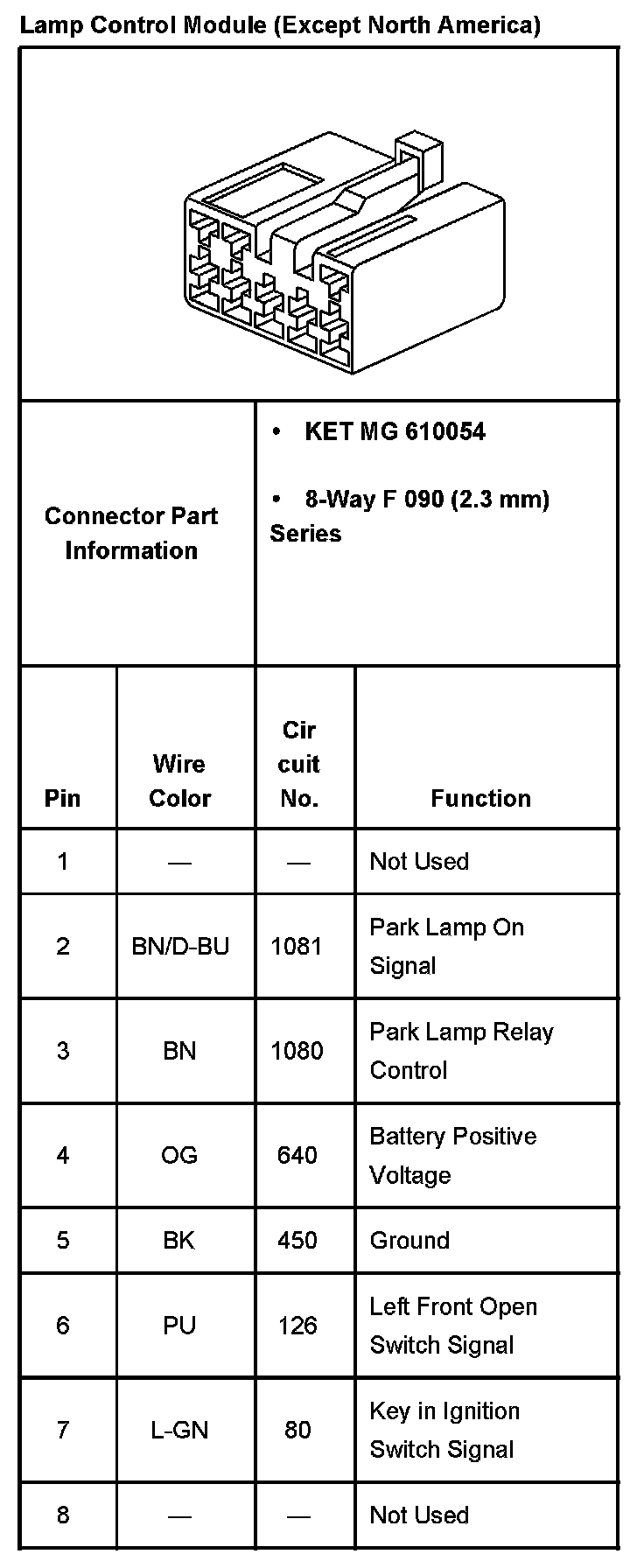

Lamp Control Module (Except North America):
