Speedometer Head: Service and Repair
SPEEDOMETER REPLACEMENTREMOVAL PROCEDURE
CAUTION: Refer to Battery Disconnect Caution in Service Precautions.
Battery Disconnect Caution
1. Disconnect the negative battery cable.
2. Remove the instrument cluster.
3. Remove the instrument cluster lens and the face plate.

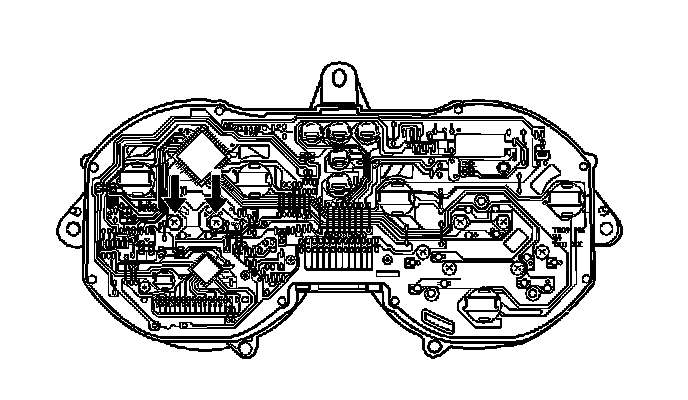

4. Remove the screws and the speedometer from the instrument cluster.
INSTALLATION PROCEDURE
NOTE: Refer to Fastener Notice in Service Precautions.
Fastener Notice
1. Install the speedometer to the instrument cluster with the screws.
2. Install the instrument cluster lens and the face plate.
3. Install the instrument cluster.
4. Connect the negative battery cable.
