Door Switch: Service and Repair

DOOR JAMB SWITCH REPLACEMENT

REMOVAL PROCEDURE

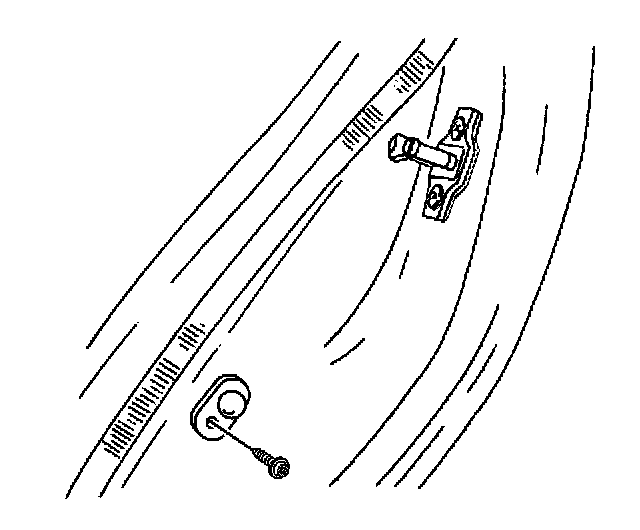

1. Remove the screw and the door jamb switch.
2. Disconnect the electrical connector.



INSTALLATION PROCEDURE







1. Connect the electrical connector.

NOTE: Refer to Fastener Notice in Service Precautions.
Fastener Notice

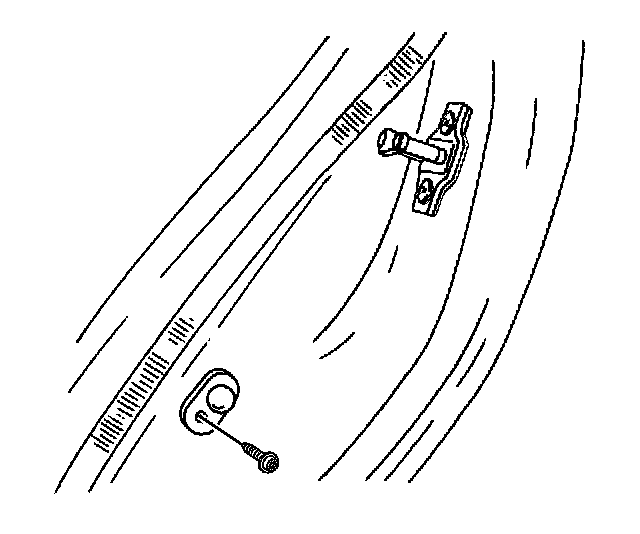

2. Install the door jamb switch with the screw.

Tighten
Tighten the door jamb switch screw to 4.5 N.m (40 lb in).
