Engine Mount: Service and Repair

Engine Mount Replacement

^ Tools Required
- J 28467-B (DW-117) Universal Engine Support Fixture

Removal Procedure






1. Caution: Refer to Battery Disconnect Caution in Service Precautions.

Disconnect the negative battery cable.
2. Remove the upper radiator cover.
3. Remove the right front splash shield.

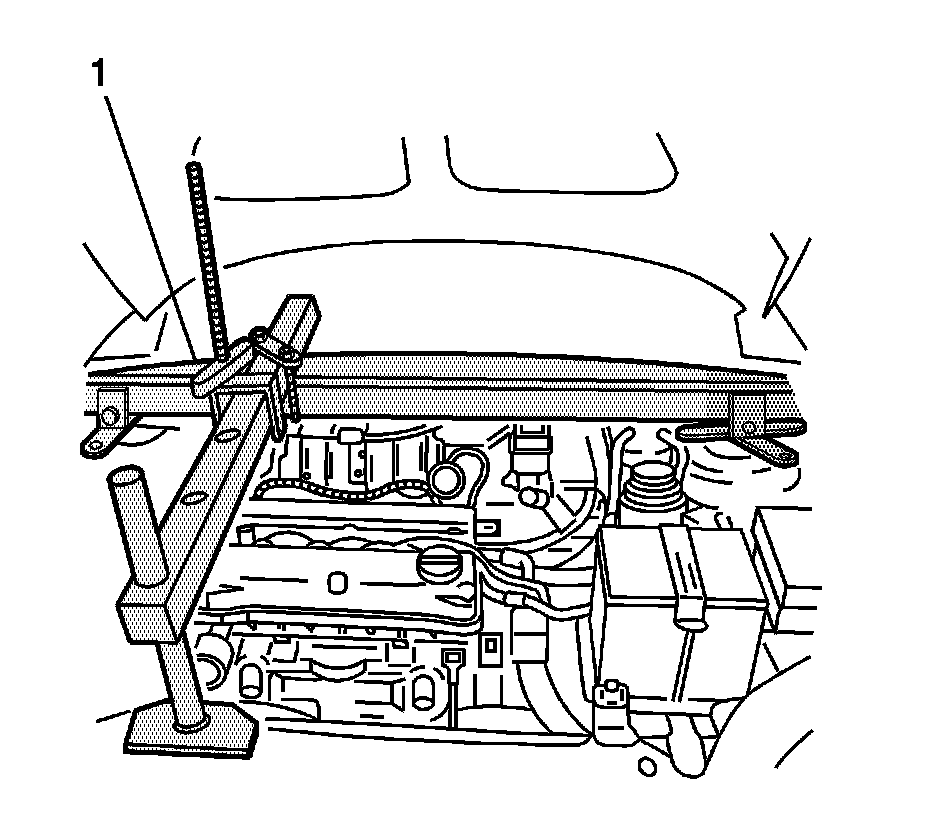

4. Support the engine assembly using the J 28467-B (1).

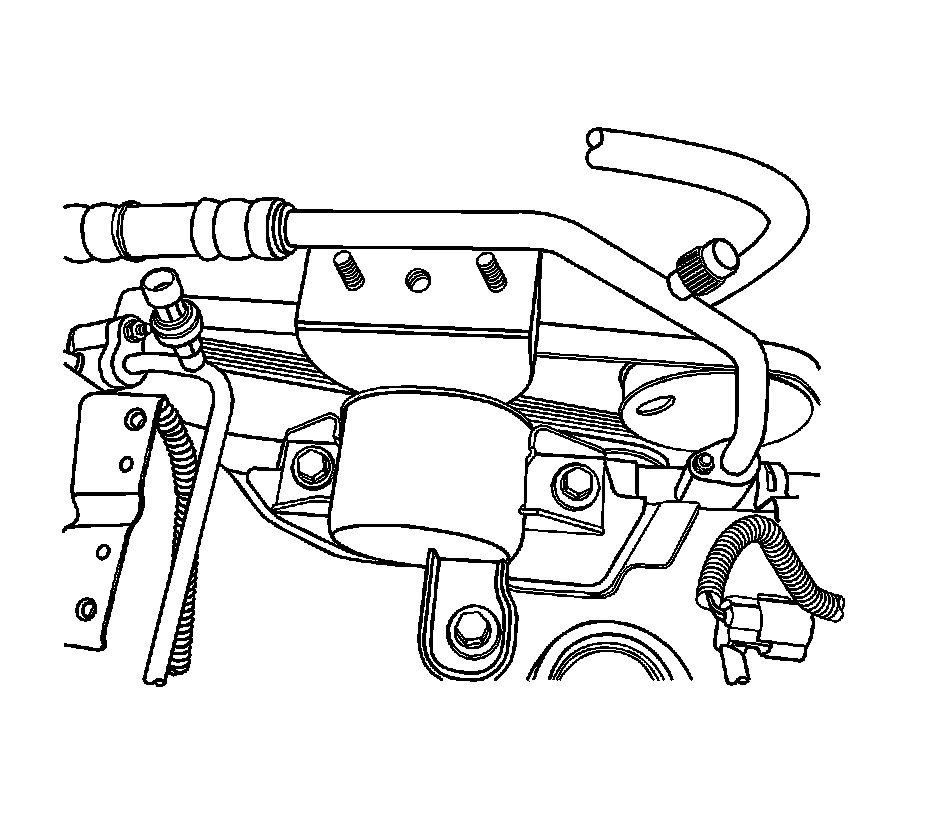

5. Remove the engine mount bracket retaining bolts.





6. Remove the engine mount retaining nuts.
7. Lower the engine.
8. Remove the engine mount.

Installation Procedure





1. Install the engine mount.
2. Raise the engine.

3. Notice: Refer to Fastener Notice in Service Precautions.

Install the engine mount retaining nuts.
Tighten the engine mount retaining nuts to 40 Nm (30 ft. lbs.).





4. Install the engine mount bracket retaining bolts.
Tighten the engine mount bracket retaining bolts to 55 Nm(41 ft. lbs.).





5. Remove J 28467-B (1).
6. Install the right front splash shield.
7. Install the upper radiator cover.
8. Connect the negative battery cable.
