Chevrolet
>>
2004
>>
Aveo L4-1.6L VIN 6
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Brake Warning Indicator
>>
Mando ABS
Mando ABS
Brake Warning System Schematics (Mando ABS)

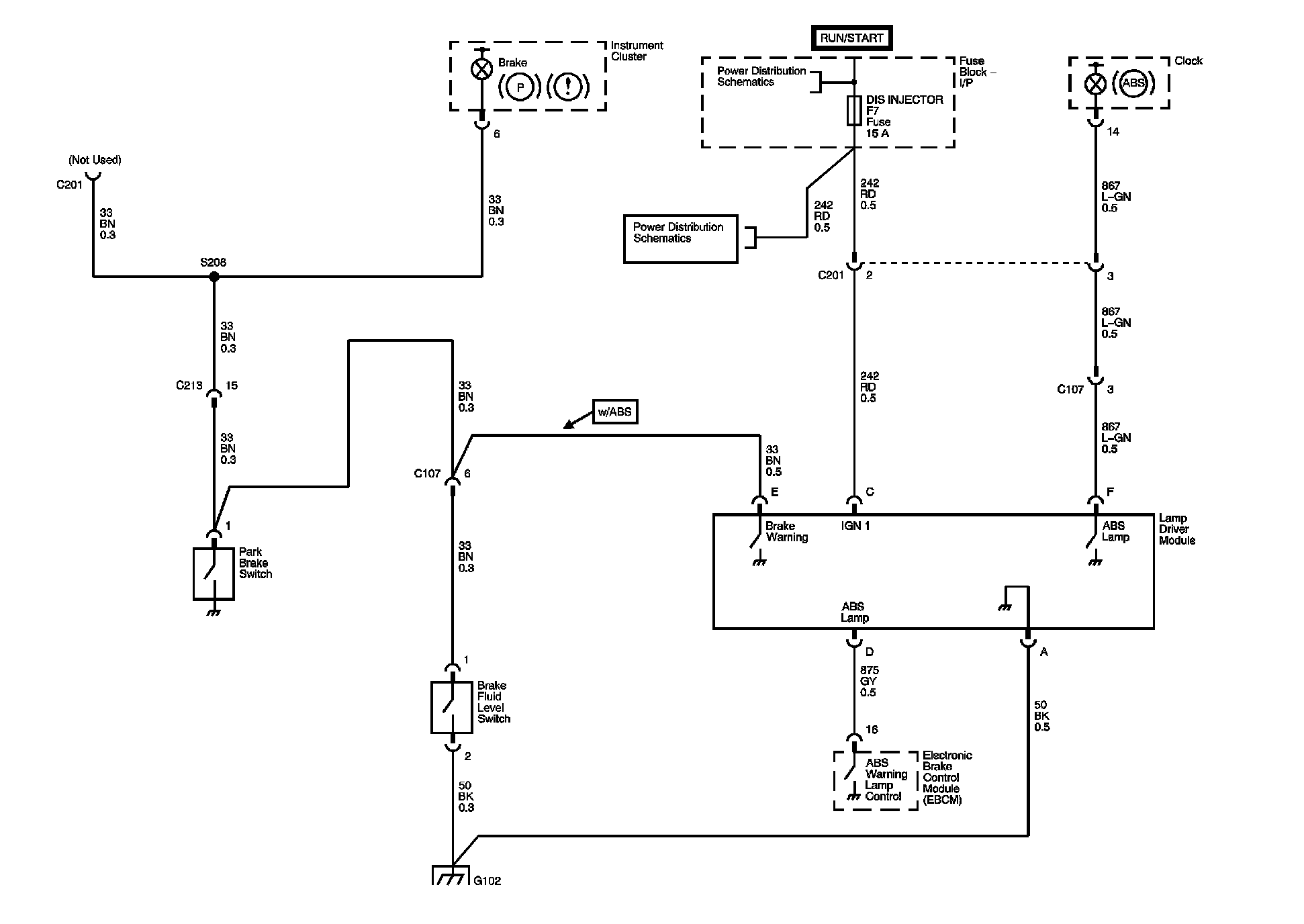

LHD

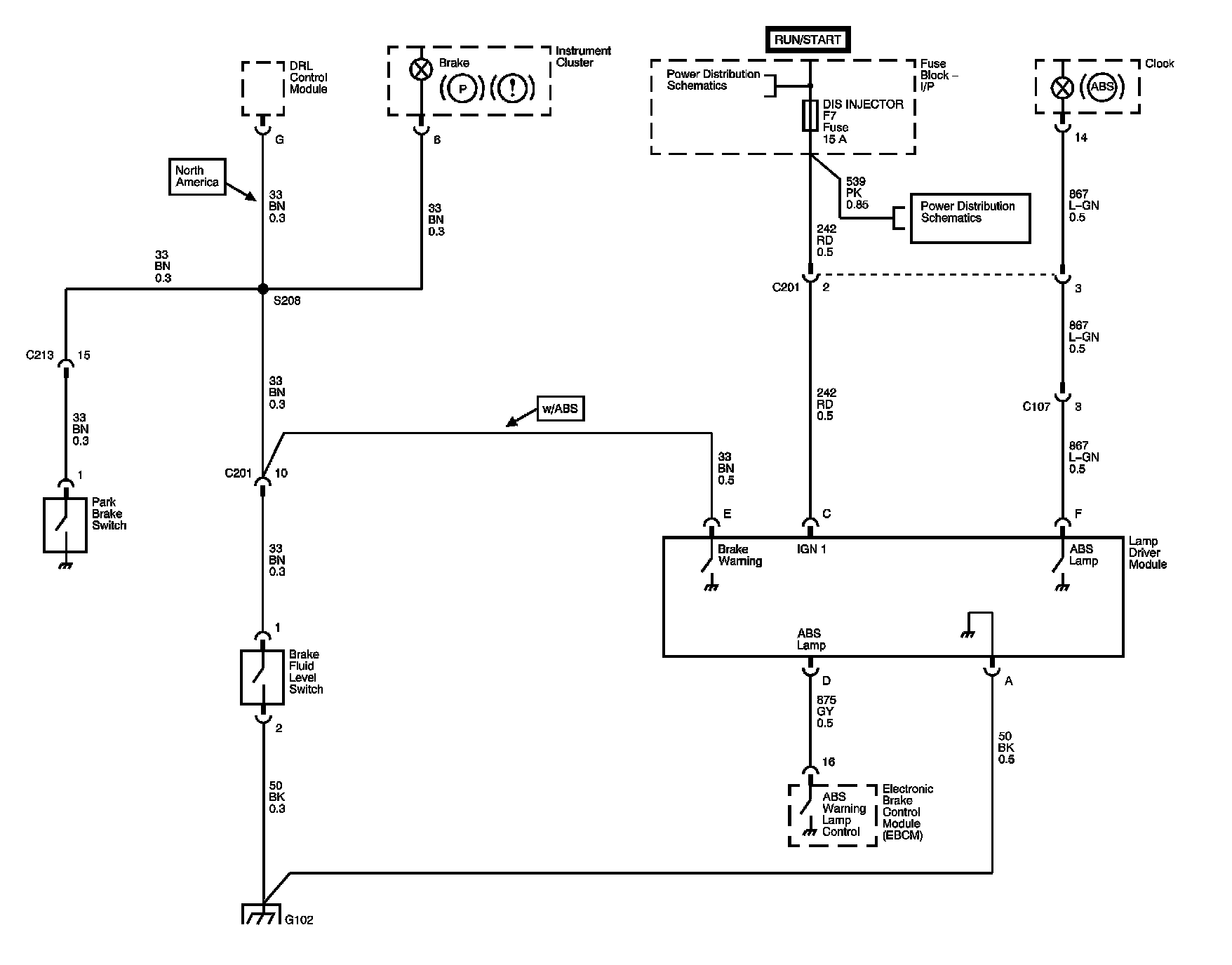

RHD
