Shift Interlock, A/T




Automatic Transmission Shift Lock Control Schematics

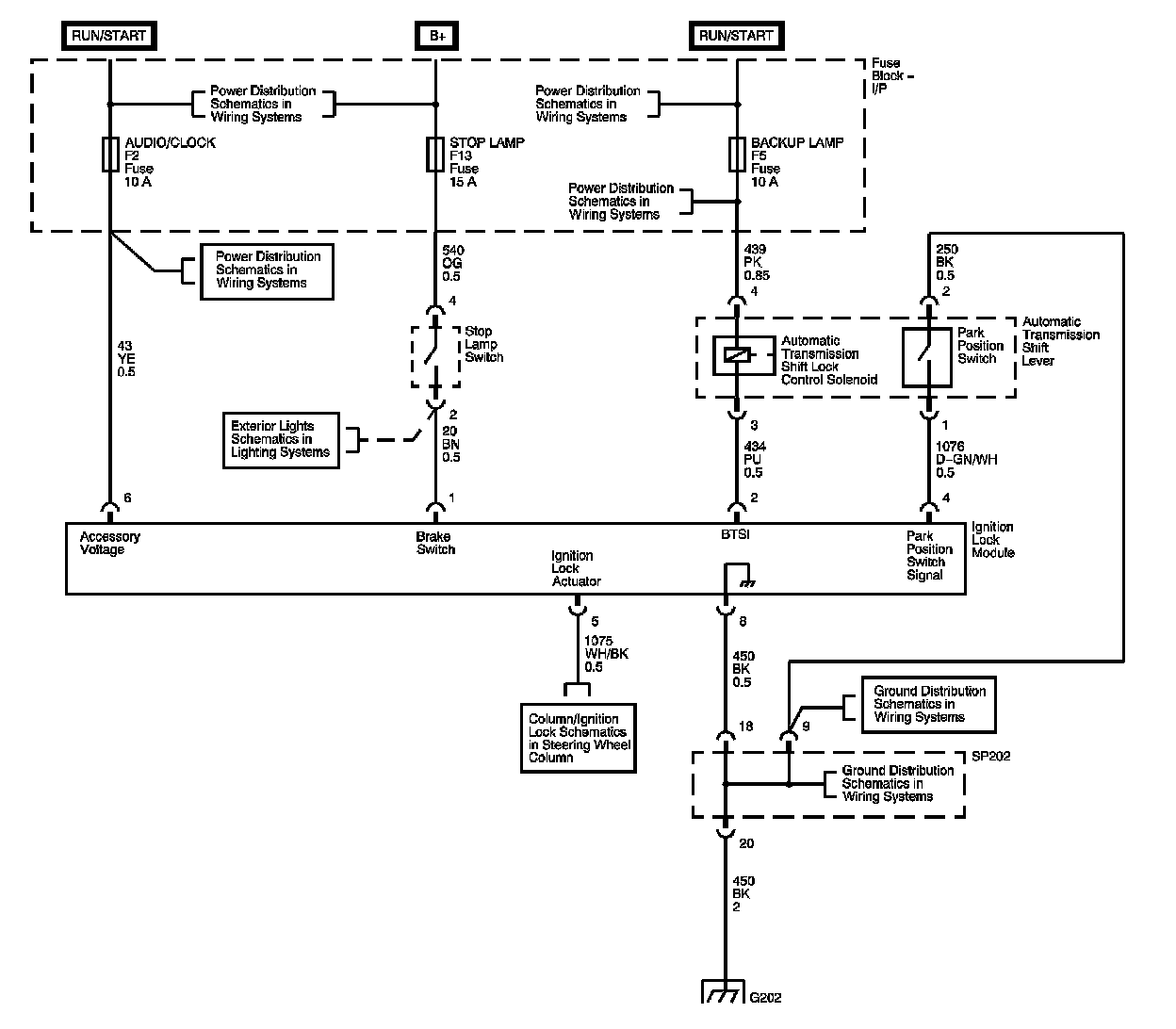

Shift Lock Control - North America

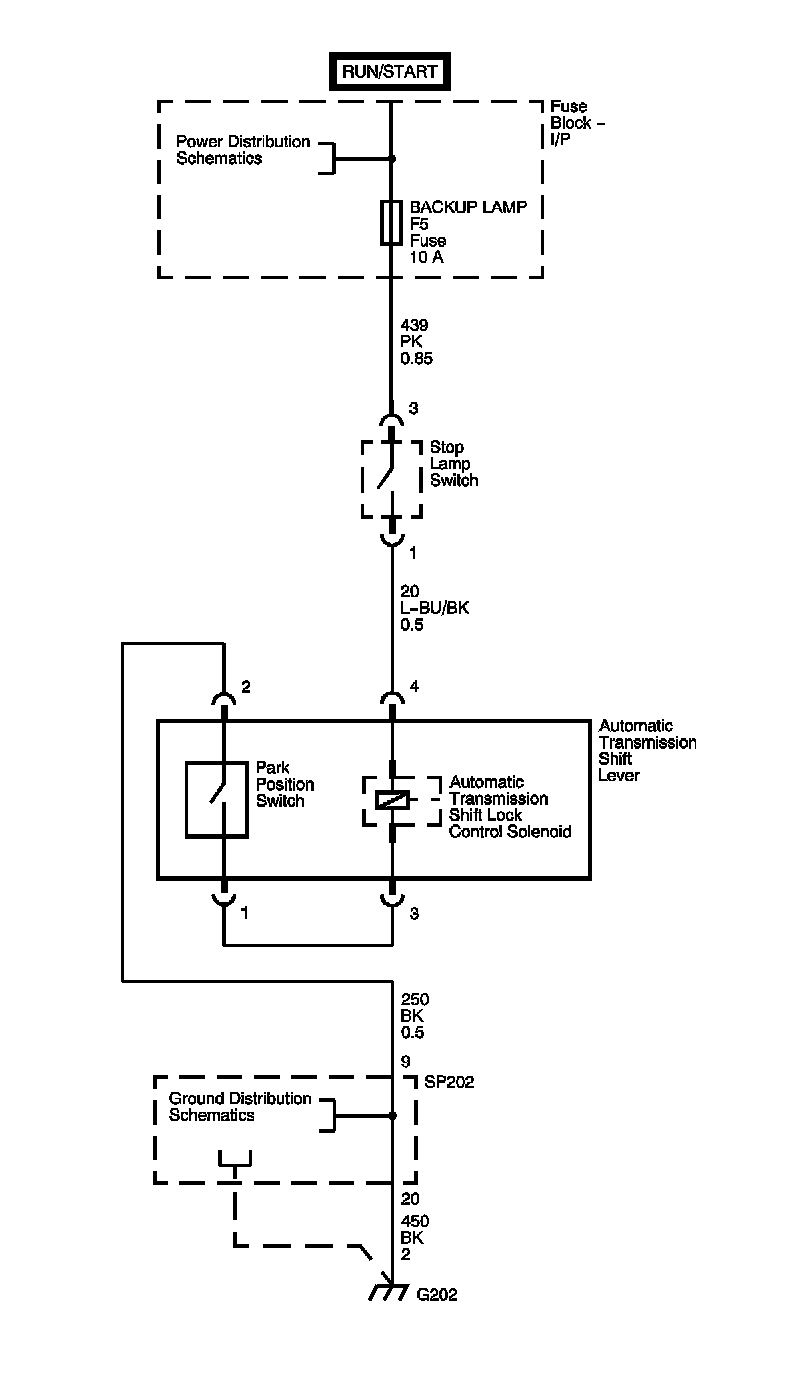

Shift Lock Control - Except North America
