C351
C351

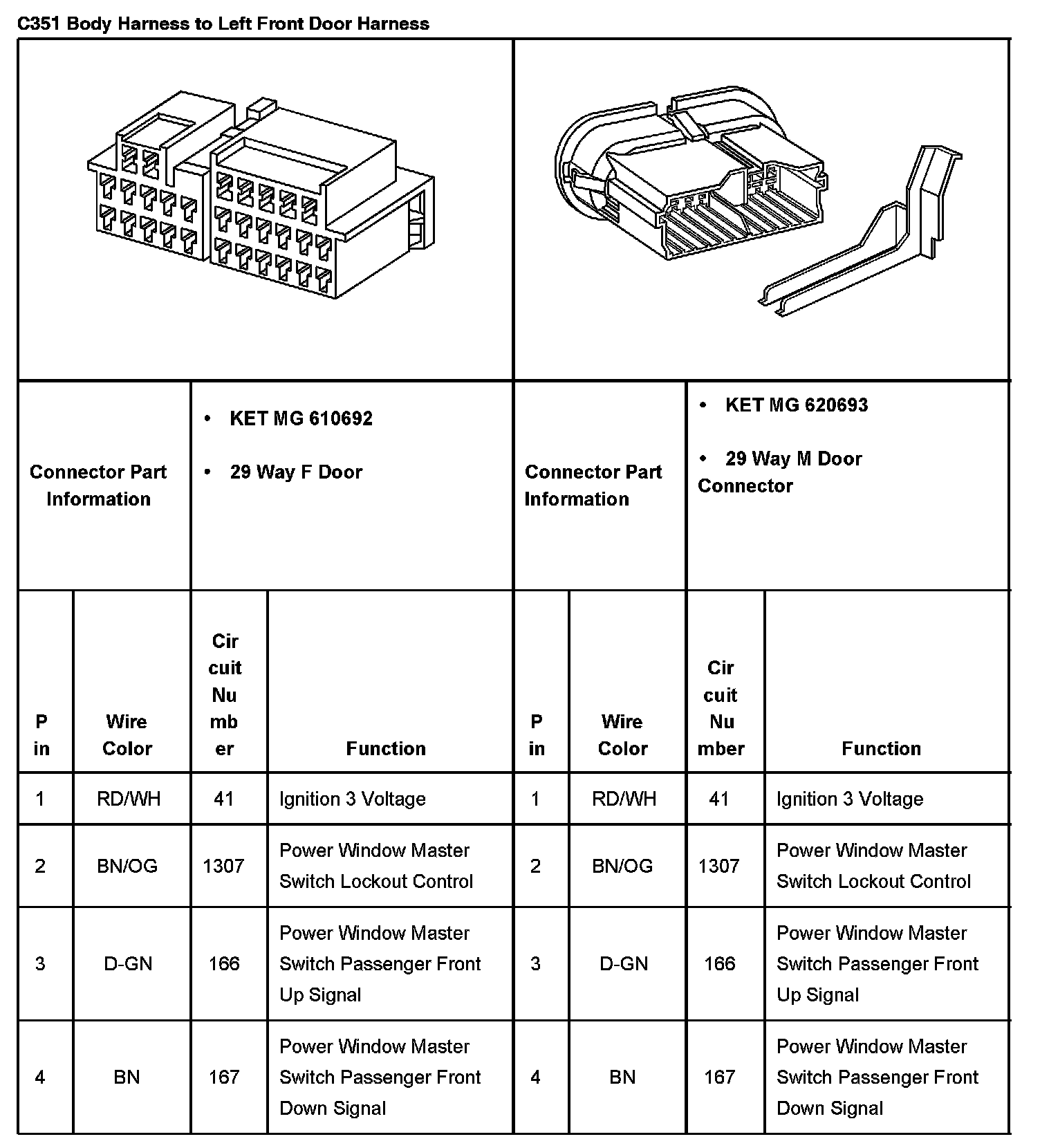

C351 Body Harness To Left Front Door Harness Part 1:

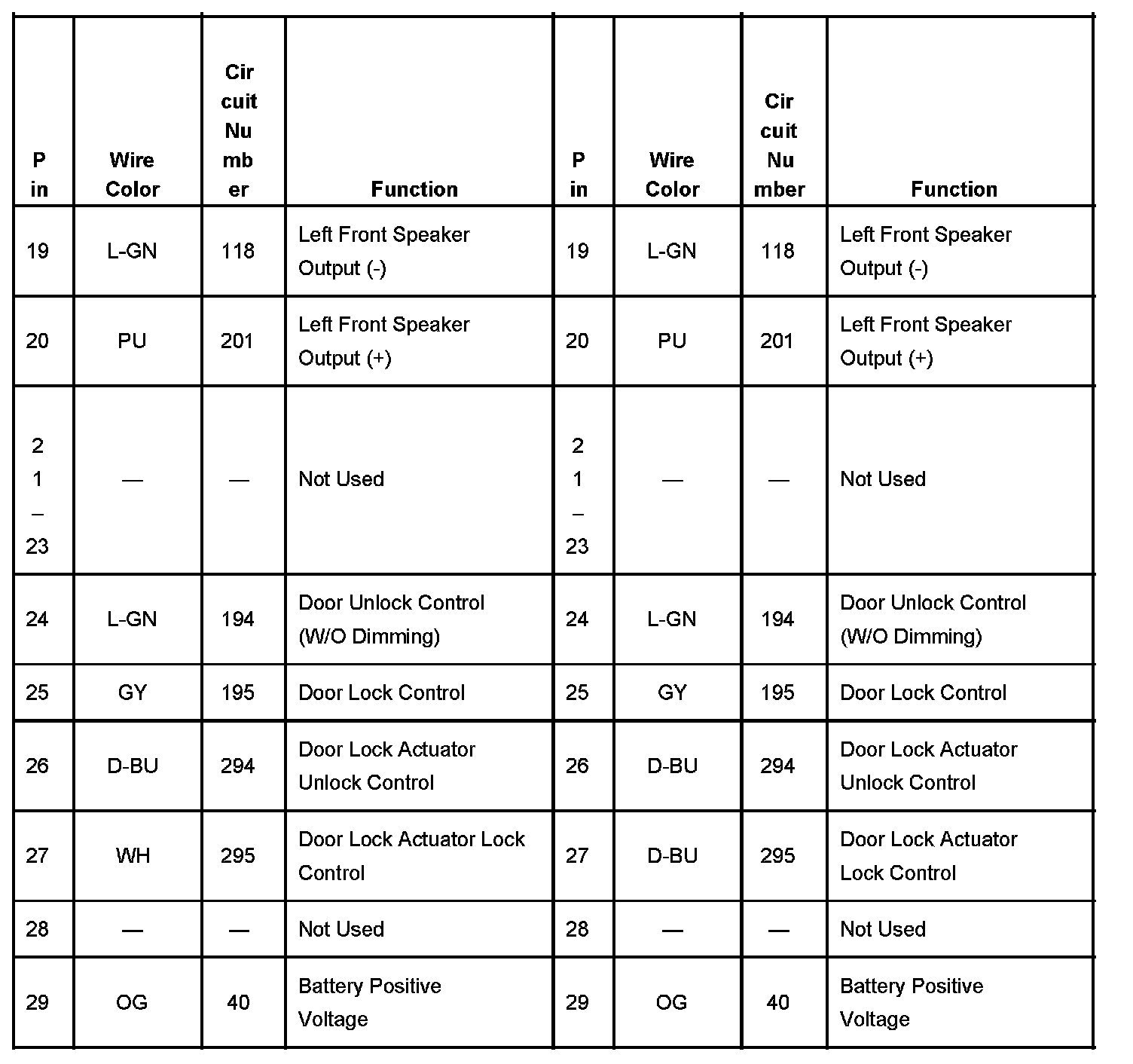

C351 Body Harness To Left Front Door Harness Part 2:
C351 Body Harness To Left Front Door Harness Part 3:
