Daytime Running Lamp Control Unit
>>
DRL Control Module (Scandinavia)
DRL Control Module (Scandinavia)

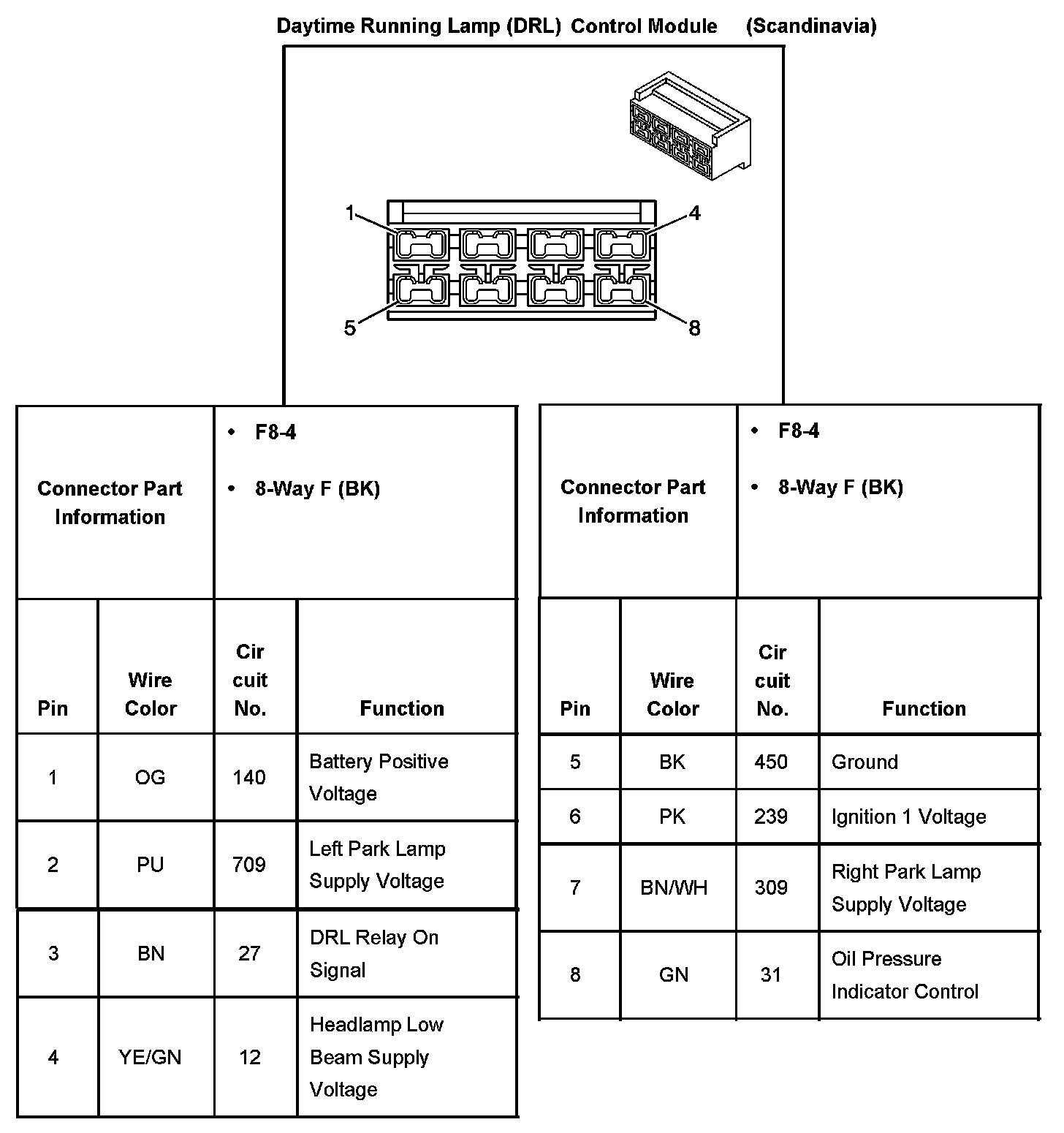

Daytime Running Lamp (DRL) Control Module (Scandinavia):
