C415
C415

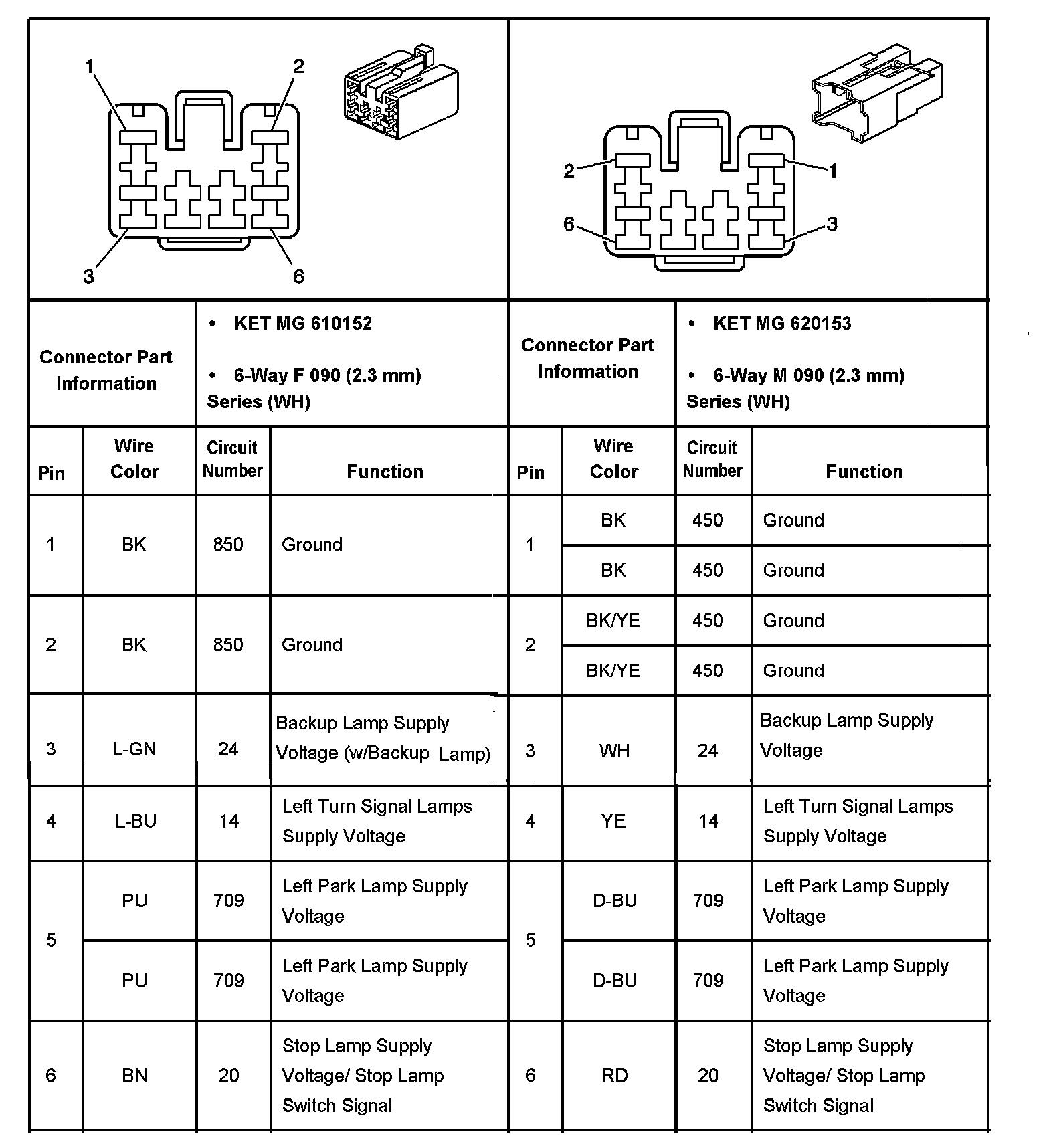

C415 Body Harness To Left Tail Lamp Jumper (Hatchback):

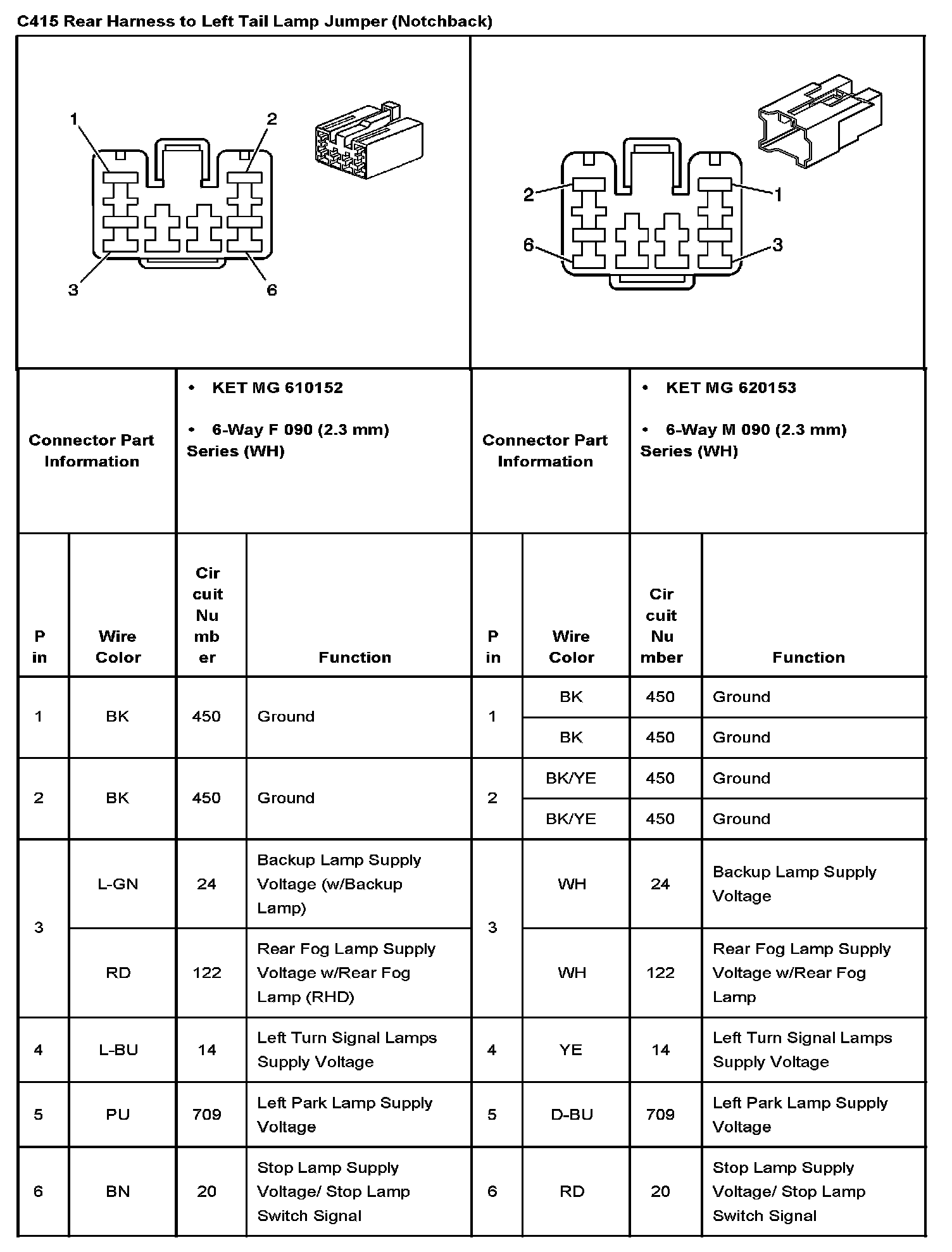

C415 Rear Harness To Left Tail Lamp Jumper (Notchback):
