C402
C402

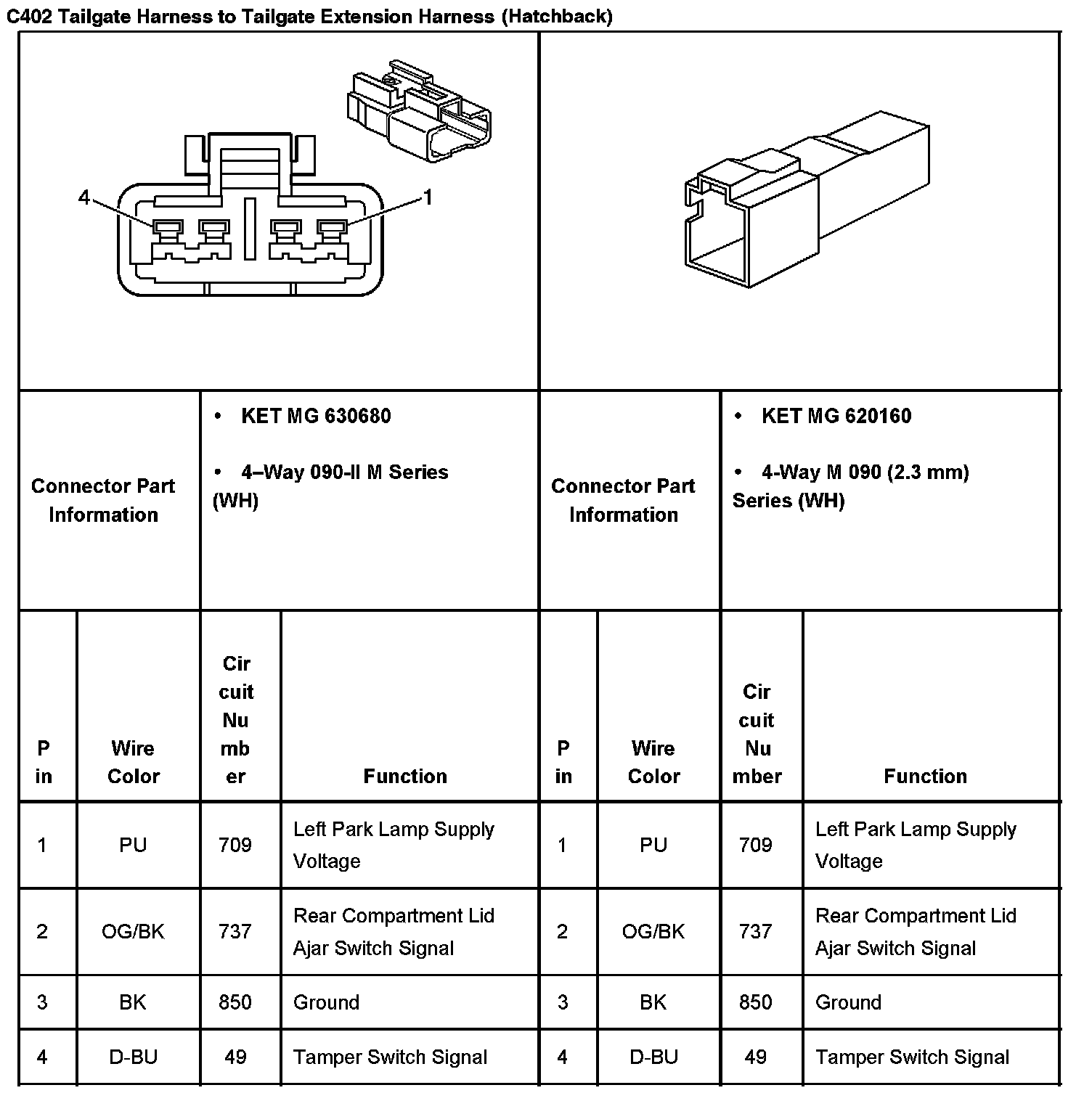

C402 Tailgate Harness To Tailgate Extension Harness (Hatchback):

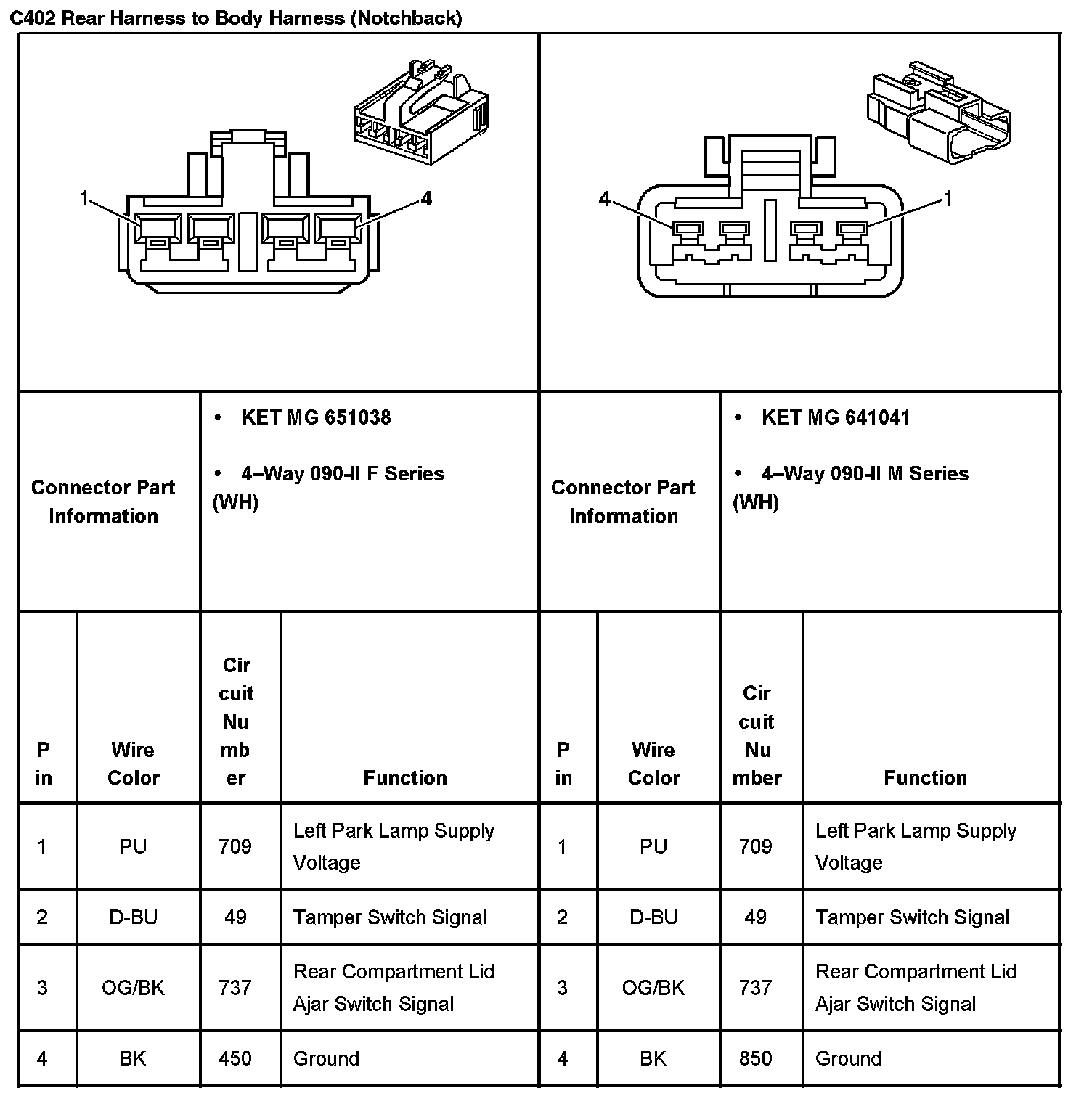

C402 Rear Harness To Body Harness (Notchback):
