Lock - Rear Folding Seat
LOCK REPLACEMENT - REAR FOLDING SEATREMOVAL PROCEDURE
1. Remove the rear seatback lock release knob.
2. Reposition the rear seatback cover.

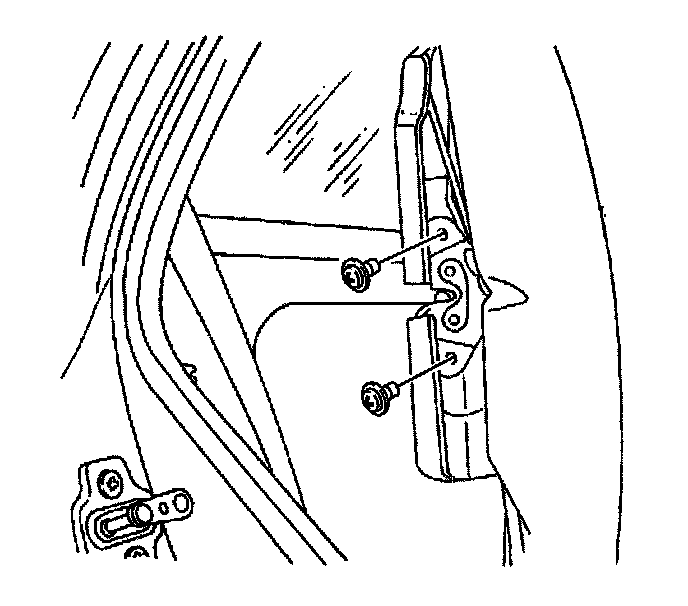

3. Remove the screws and the lock assembly.
INSTALLATION PROCEDURE
NOTE: Refer to Fastener Notice in Service Precautions.
Fastener Notice

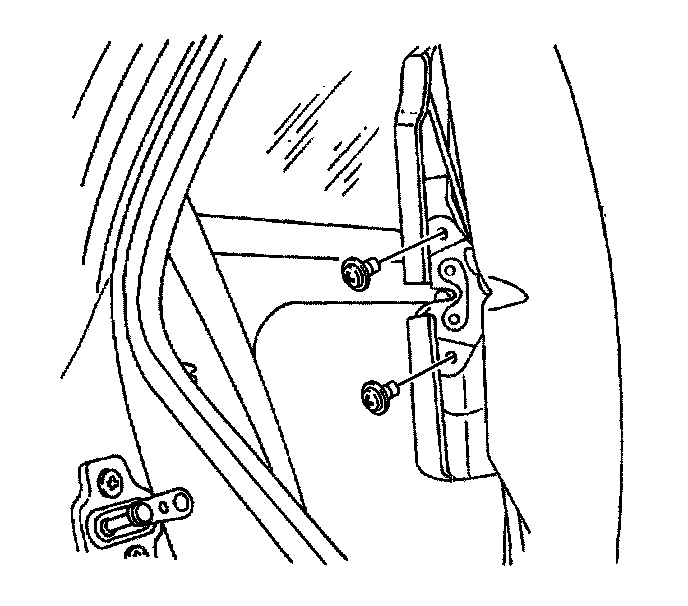

1. Install the rear seatback lock assembly with the screws.
Tighten
Tighten the rear seat back lock assembly screws to 20 N.m (15 lb ft).
2. Install the rear seatback cover to its original position.
3. Install the rear seatback lock release knob.
