Front Seat Back Replacement

Front Seat Back Replacement

Removal Procedure





1. Remove the front bucket seat from the vehicle. Refer to Front Seat Replacement - Bucket (Front Seat Replacement - Bucket) .

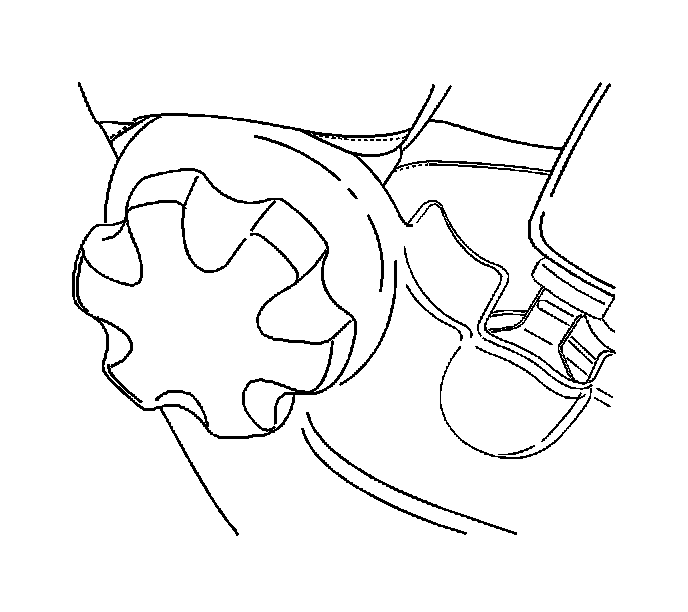

2. Remove the recliner adjustment knob.




3. Remove the recliner cover from the front seat.

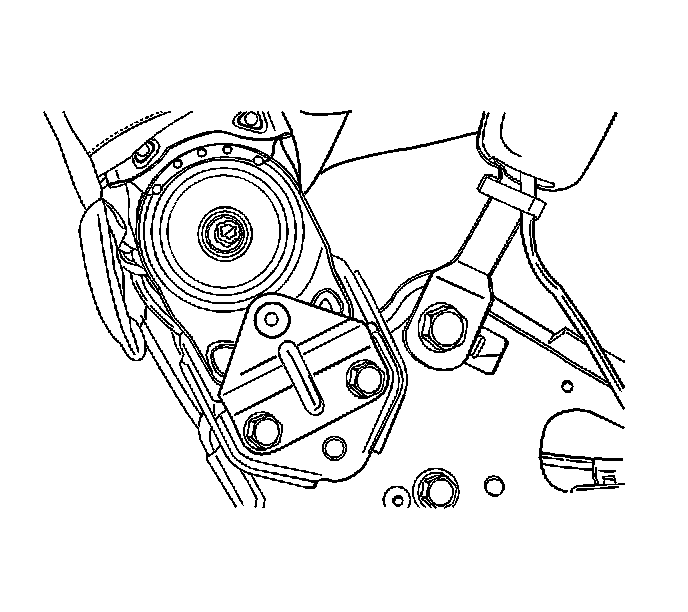

4. Remove the seat back bolts from the seat cushion.
5. Remove the seat back.



Installation Procedure






Notice: Refer to Fastener Notice.

1. Install the seat back bolts to the seat cushion.

Tighten the seat back bolts to 25 N.m (18 lb ft).





2. Install the recliner cover.
3. Install the recliner adjustment knob.
4. Install the front bucket seat in the vehicle. Refer to Front Seat Replacement - Bucket (Front Seat Replacement - Bucket) .
