Trim Panel Replacement - Upper Center Pillar

TRIM PANEL REPLACEMENT - UPPER CENTER PILLAR

REMOVAL PROCEDURE

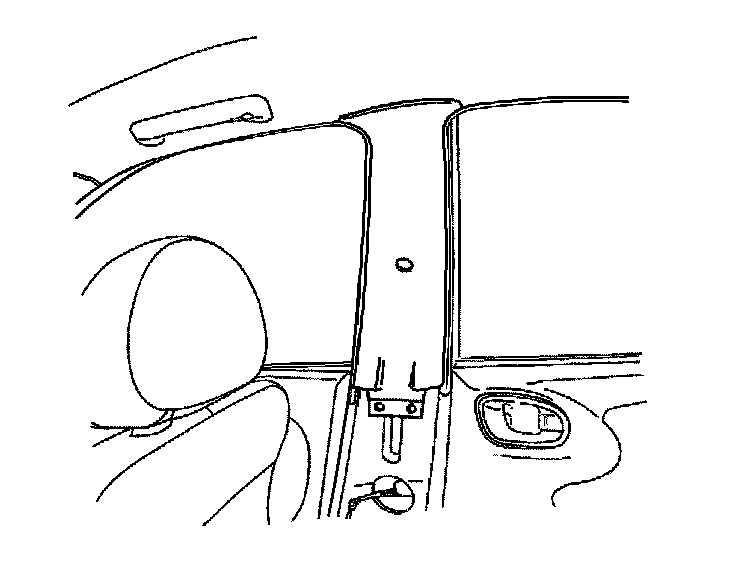

1. Remove the bolt and the upper front seat belt anchor.







2. Remove the lower center pillar trim panel.

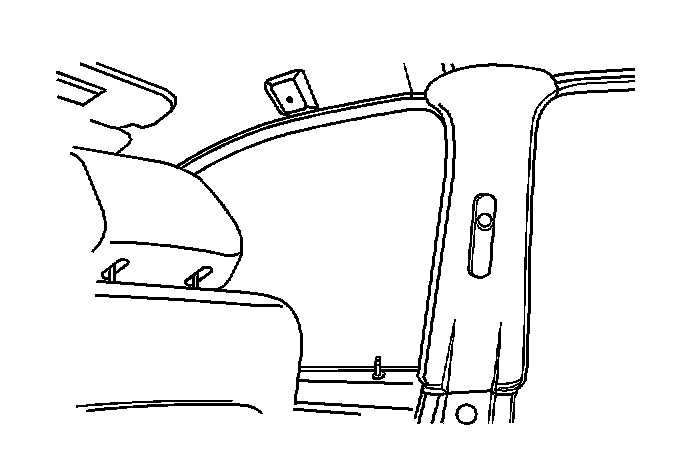

3. Remove the screws and the seat belt bracket.

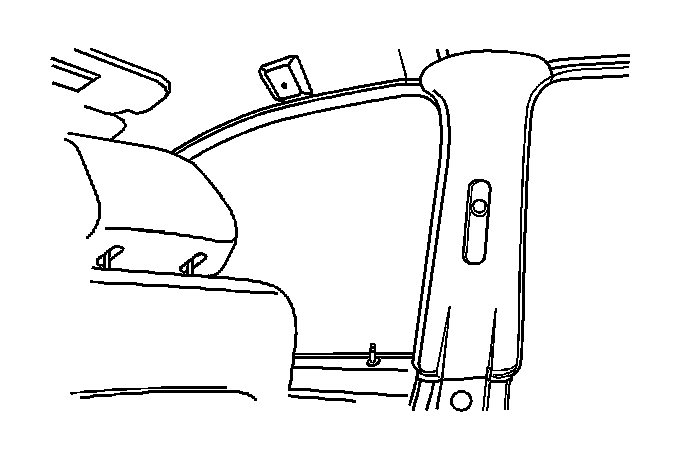

4. Pry off the upper center pillar trim panel.



INSTALLATION PROCEDURE

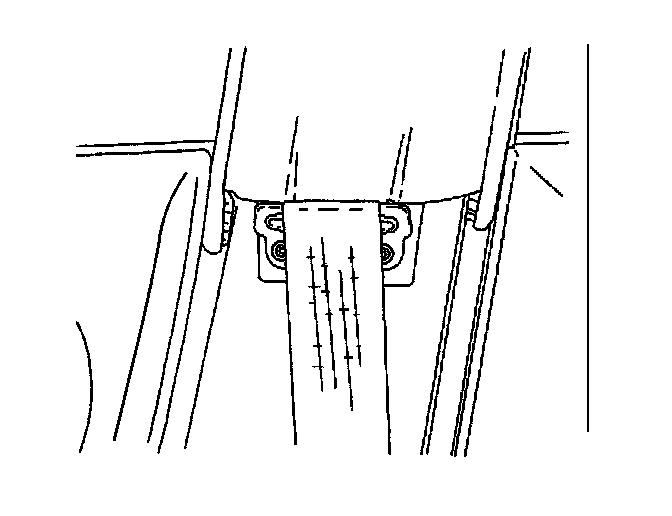

1. Install the upper center pillar trim panel.

NOTE: Refer to Fastener Notice in Service Precautions.
Fastener Notice

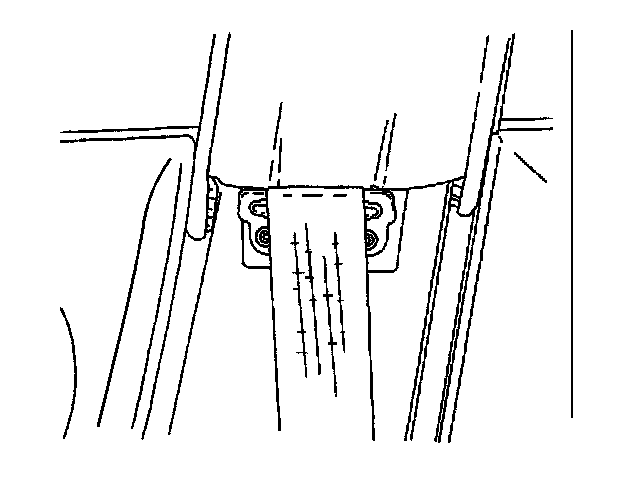

2. Install the seat belt bracket with the screws.

Tighten
Tighten the seat belt bracket screws to 10 N.m (89 lb in).







3. Install the lower center pillar trim panel.

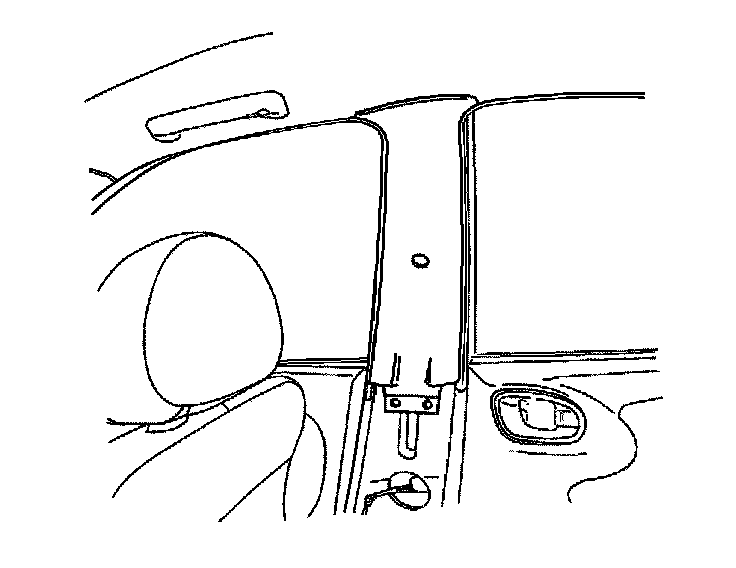

4. Install the upper front seat belt anchor with the bolt.

Tighten
Tighten the seat belt anchor bolt to 38 N.m (28 lb ft).
