Garnish Molding Replacement - Hatchback Door Lower

HATCHBACK DOOR LOWER GARNISH MOLDING REPLACEMENT

TOOLS REQUIRED
J 21104-B (KM 475-B) Weatherstrip Remover Universal

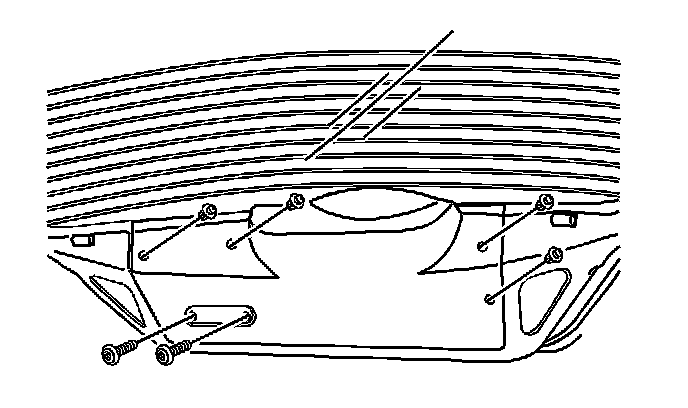

REMOVAL PROCEDURE







1. Open the hatchback door.
2. Remove the lower garnish molding clips using J 21104-B .
3. Remove the lower garnish molding.

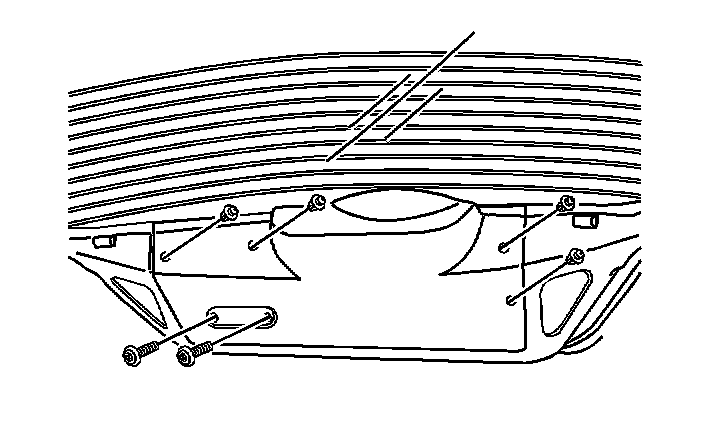

INSTALLATION PROCEDURE







1. Install the lower garnish molding with the clips.
2. Close the hatchback door.
