Sun Visor: Service and Repair

SUNSHADE REPLACEMENT

REMOVAL PROCEDURE

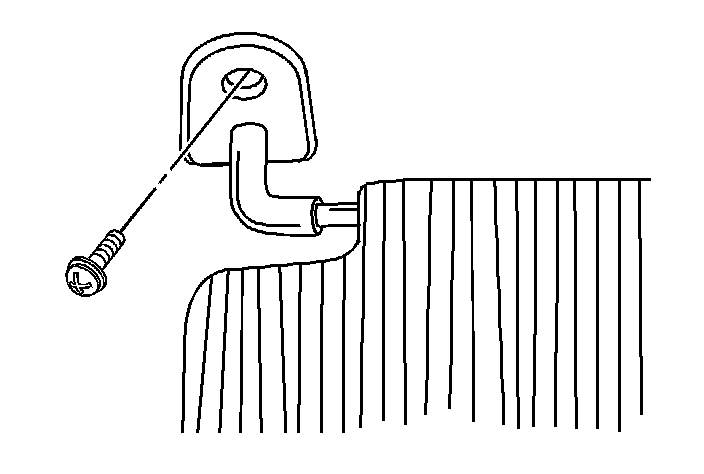

1. Remove the screws and the sun visor from the headliner.

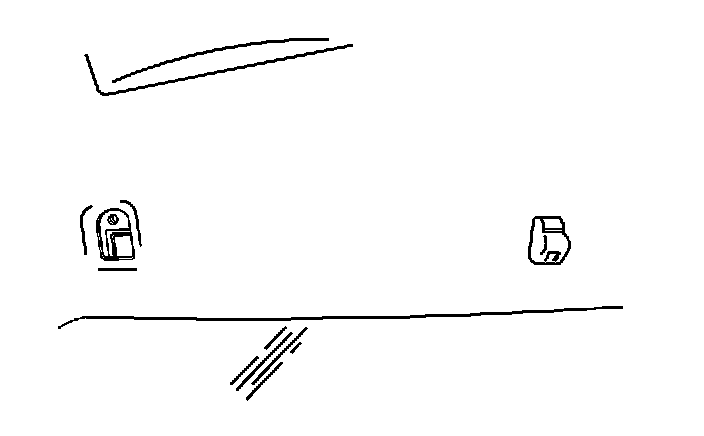

2. Remove the screw and the sun visor support from the headliner.




INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.
Fastener Notice

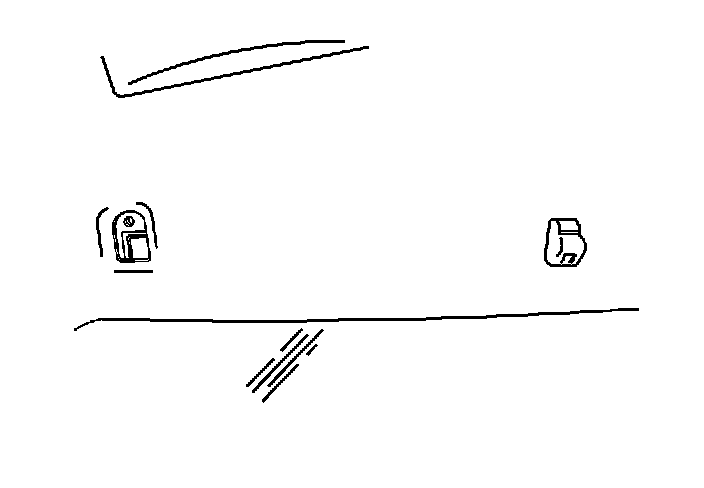

1. Install the sun visor support to the headliner with the screw.

Tighten
Tighten the sun visor support screw to 1.5 N.m (13 lb in).







2. Install the sun visor to the headliner with the screws.

Tighten
Tighten the sun visor screws to 1.5 N.m (13 lb in).
