Rear Shelf: Service and Repair

TRIM PANEL REPLACEMENT - REAR WINDOW SHELF

REMOVAL PROCEDURE







1. Remove the rear seatback.

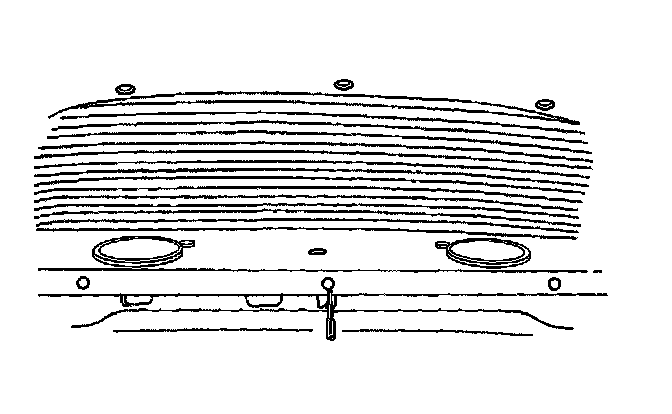

2. Remove the plastic retaining clips and the deck lid sill plate cover.


INSTALLATION PROCEDURE

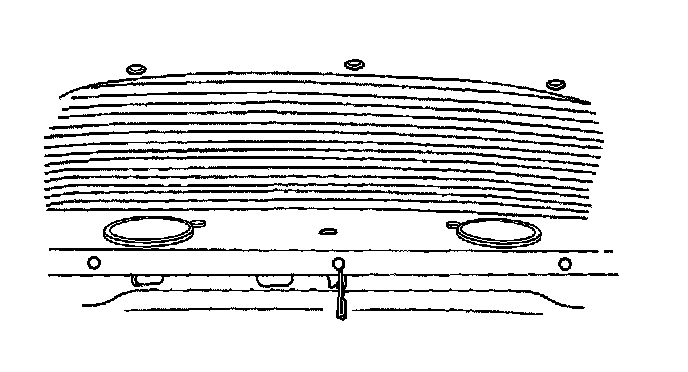

1. Install the rear deck lid sill plate cover with the plastic retaining clips.
2. Install the rear seatback.
