Drink Holders: Service and Repair

Cupholder Replacement

Removal Procedure





1. Remove the instrument panel. Refer to Instrument Panel Assembly Replacement.

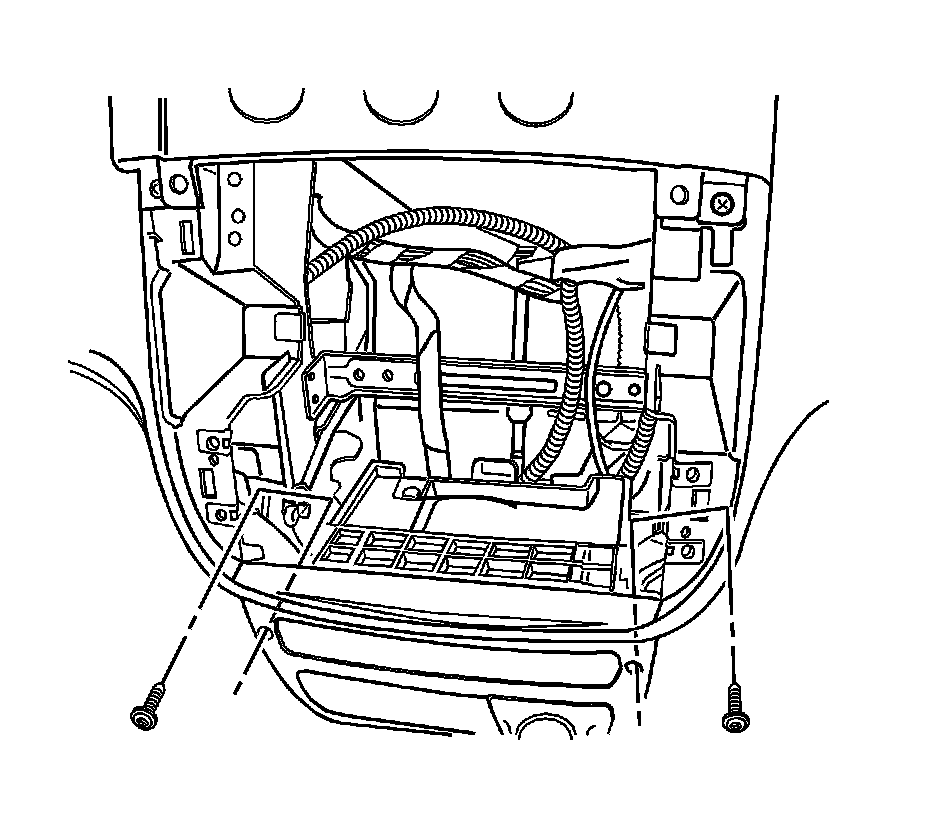

2. Remove the screws and the cupholder from the instrument panel.



Installation Procedure






Notice: Refer to Fastener Notice.

1. Install the cupholder with the screws.

Tighten the cupholder screws to 2.5 N.m (22 lb in).

2. Install the instrument panel. Refer to Instrument Panel Assembly Replacement.
