Instrument Panel (IP) - Trim Panel Replacement - Center

Instrument Panel Center Trim Panel Replacement

Removal Procedure





1. Remove the instrument panel center lower cover. Refer to Instrument Panel Lower Trim Panel Replacement (Hatchback) (Instrument Panel (IP) - Lower Trim Panel Replacement (Hatchback)) .

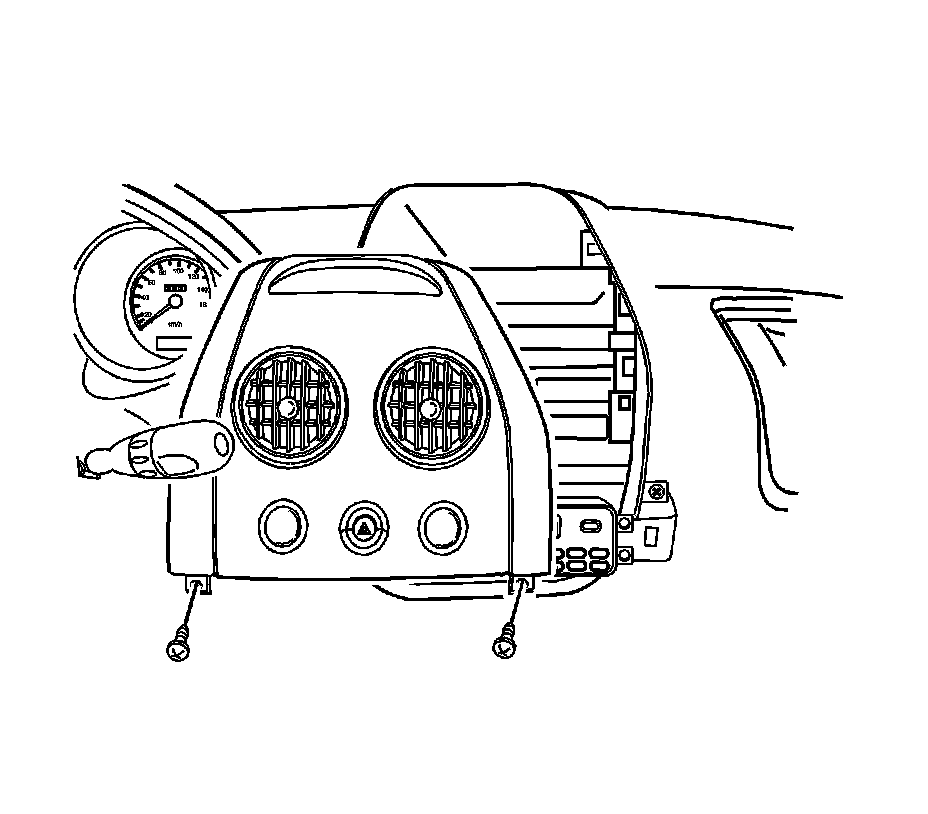

2. Remove the screws and the instrument panel center upper cover.
3. Disconnect the electrical connector.



Installation Procedure






Notice: Refer to Fastener Notice.

1. Install the instrument panel center upper cover.

Tighten the instrument panel center upper cover screws to 4 N.m (35 lb in).

2. Install the instrument panel center lower cover. Refer to Instrument Panel Lower Trim Panel Replacement (Hatchback) (Instrument Panel (IP) - Lower Trim Panel Replacement (Hatchback)) .
