Home
>>
Chevrolet
>>
2003
>>
Corvette V8-5.7L VIN S
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Transmission Valve Controls
Transmission Valve Controls

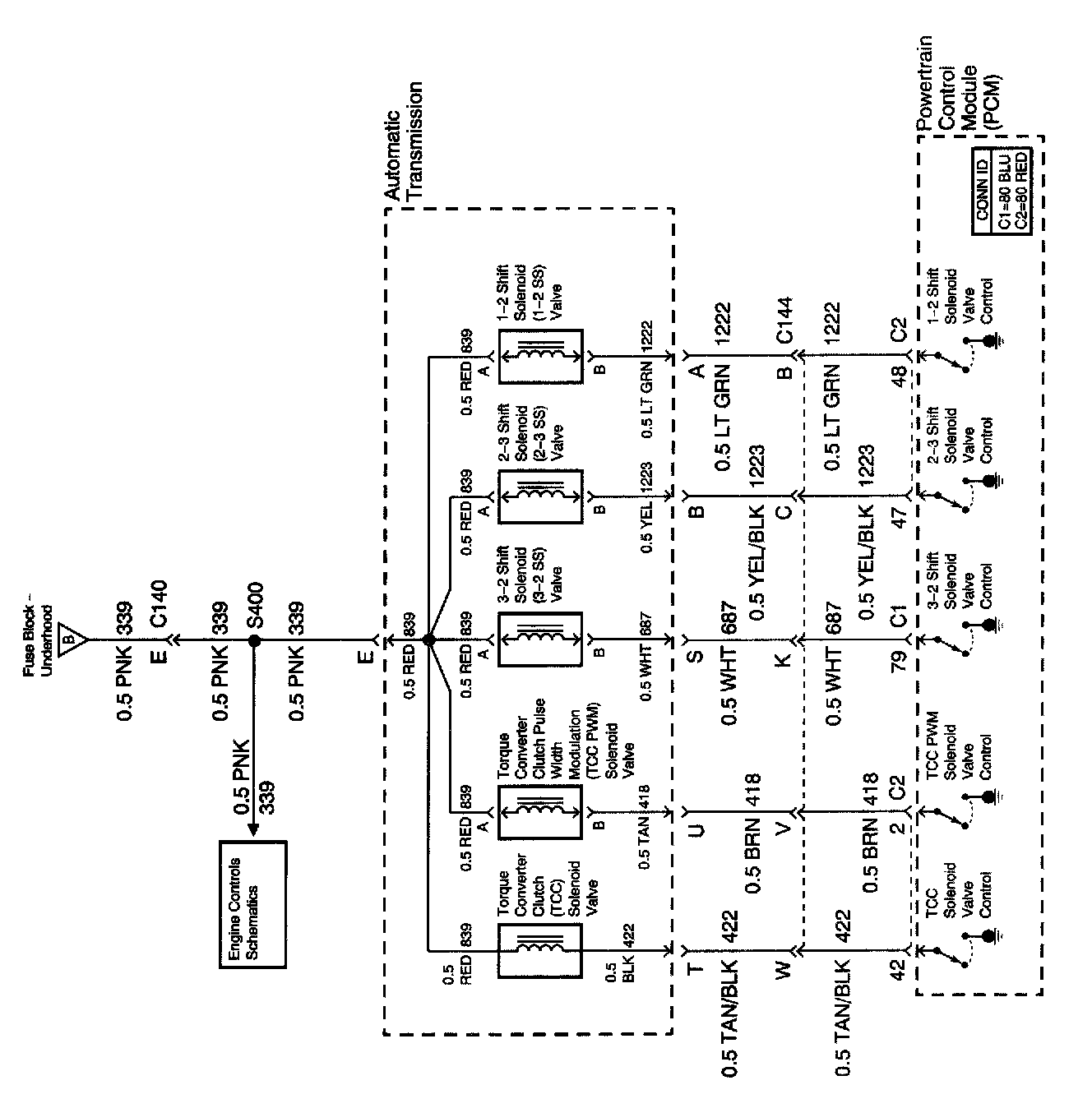

Automatic Transmission Control Diagram (Transmission Valve Controls):
