Home >> Chevrolet >> 2003 >> Corvette V8-5.7L VIN S >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Throttle Position Sensor >> Diagrams

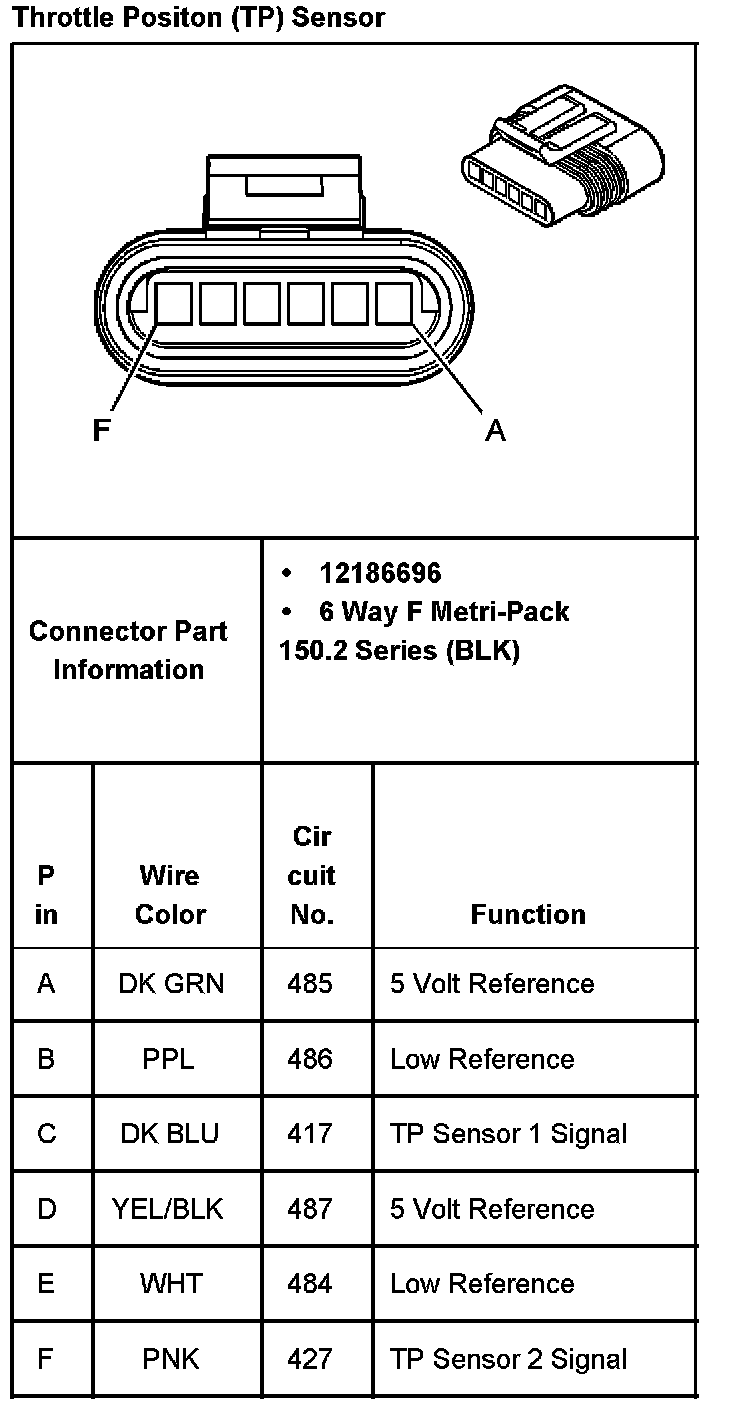

Throttle Position Sensor: Diagrams

Throttle Positon (TP) Sensor:
