Chevrolet
>>
2002
>>
Impala V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Temperature Control
Temperature Control

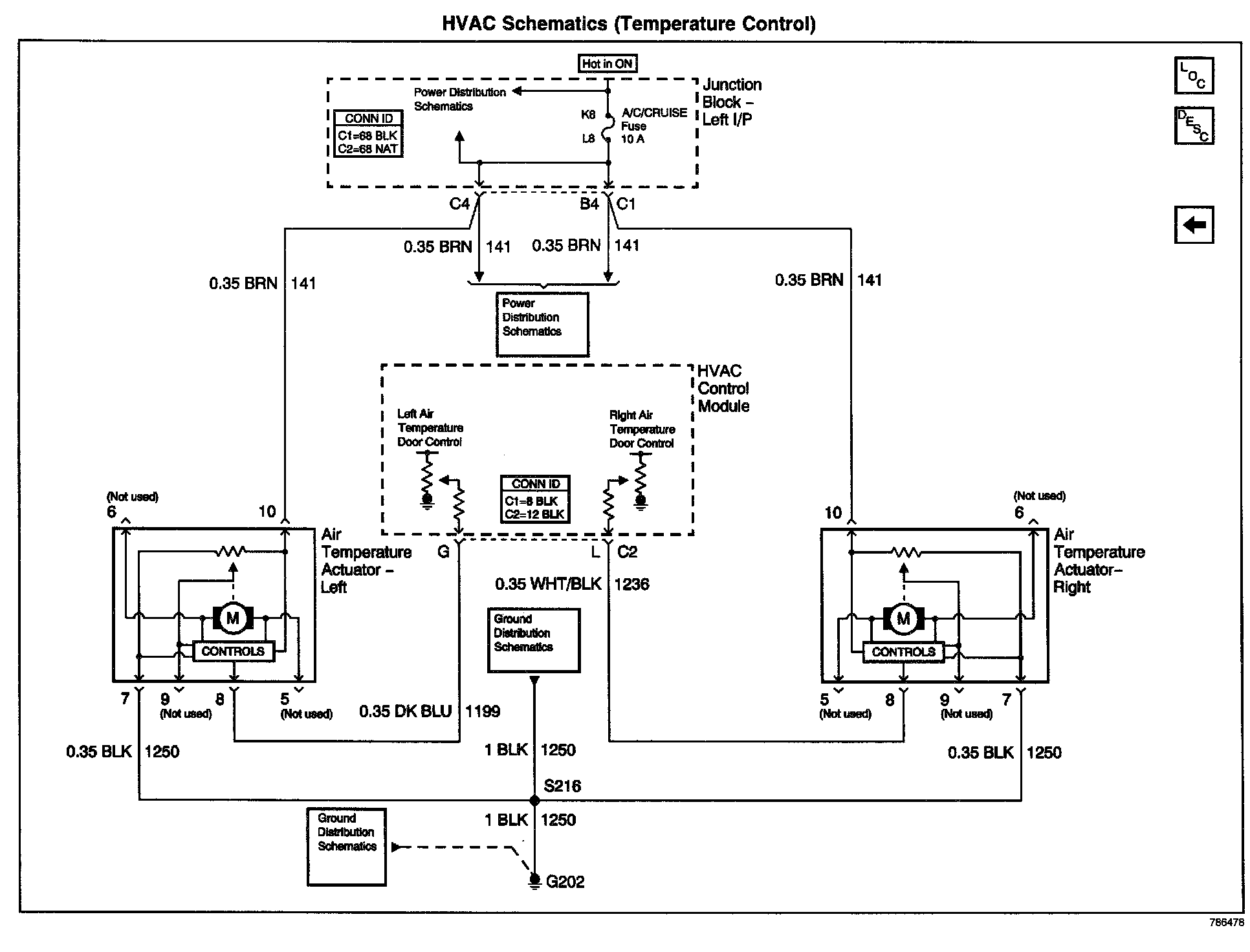

HVAC Schematics: Temperature Control:
