Chevrolet
>>
2002
>>
Corvette V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Doors
>>
System Diagram
>>
Driver C2
Driver C2

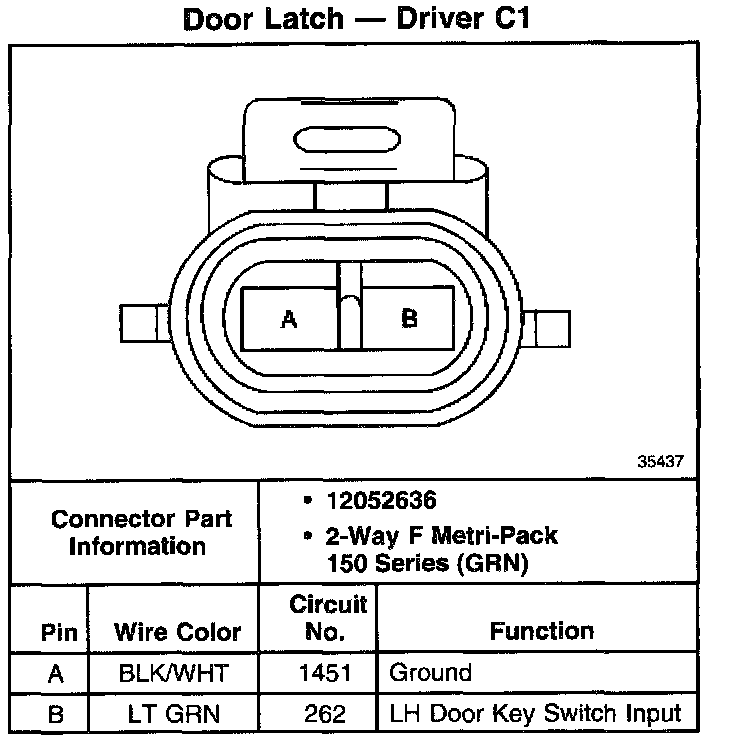

Door Latch - Driver C1:
