Controlled/Monitored Subsystems References

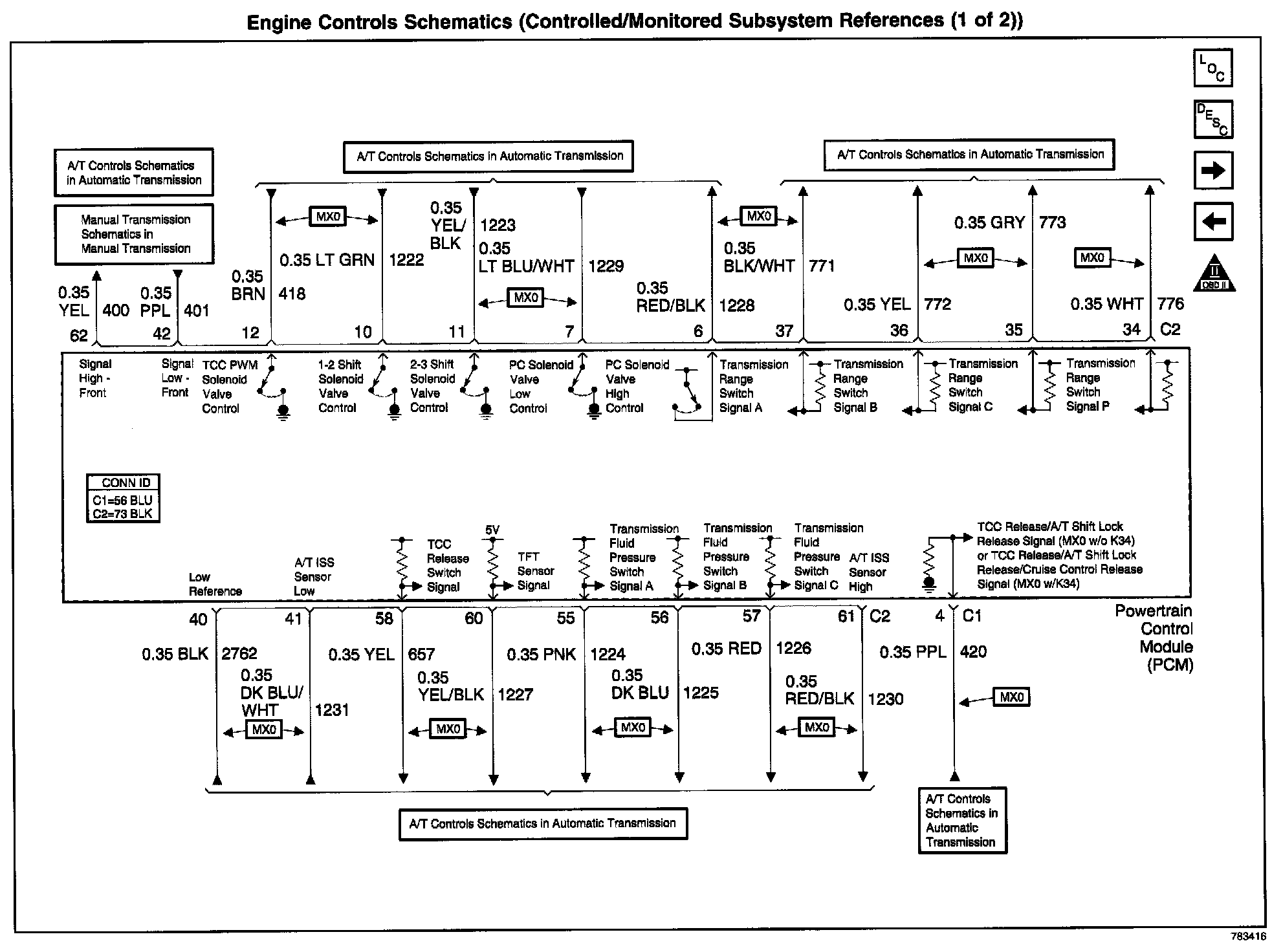

Engine Controls Schematics: Controlled/Monitored Subsystem References Part 1:

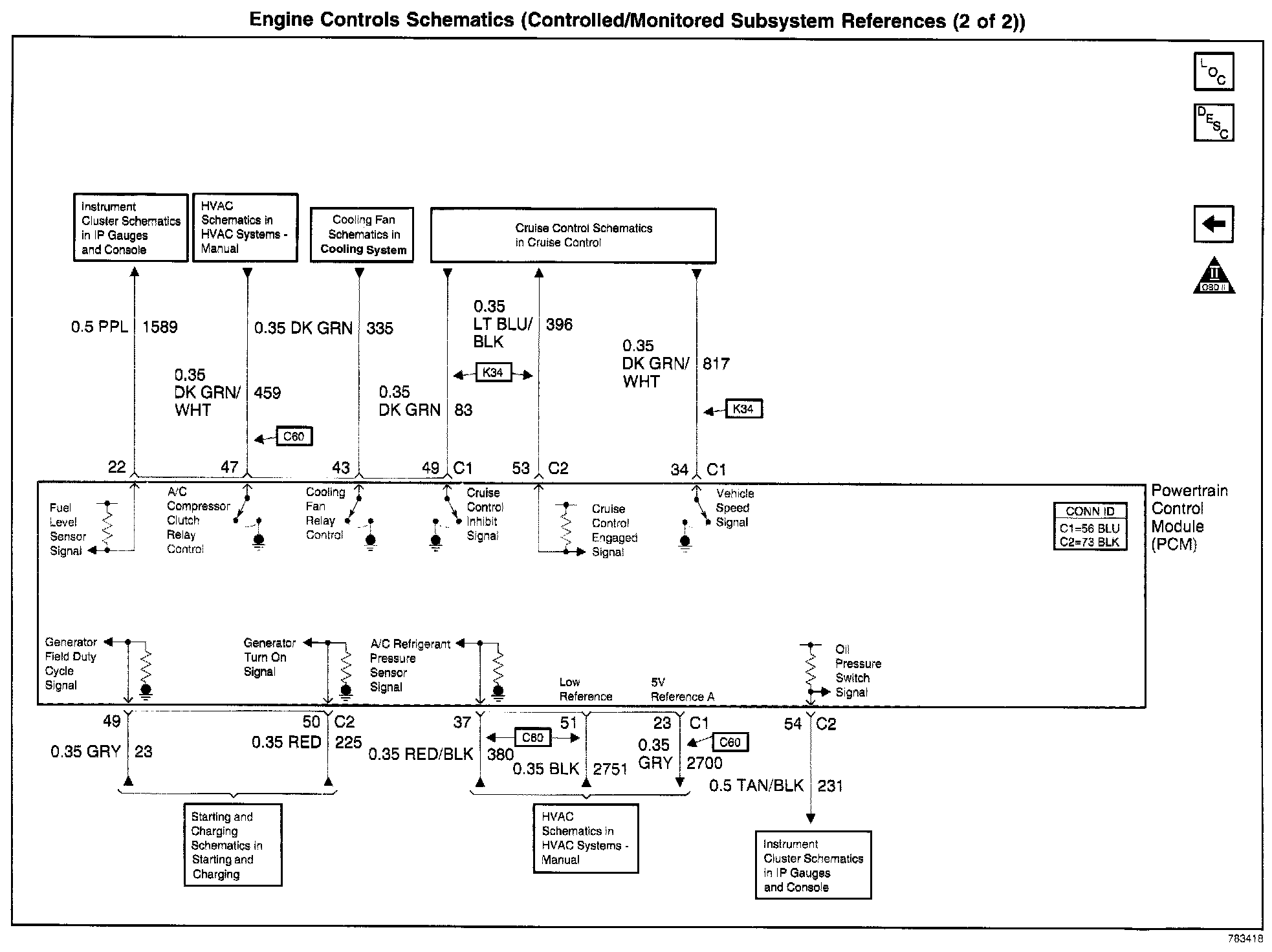

Engine Controls Schematics: Controlled/Monitored Subsystem References Part 2:
