Multiple Junction Connector
>>
C313 - Fuel Systems
C313 - Fuel Systems

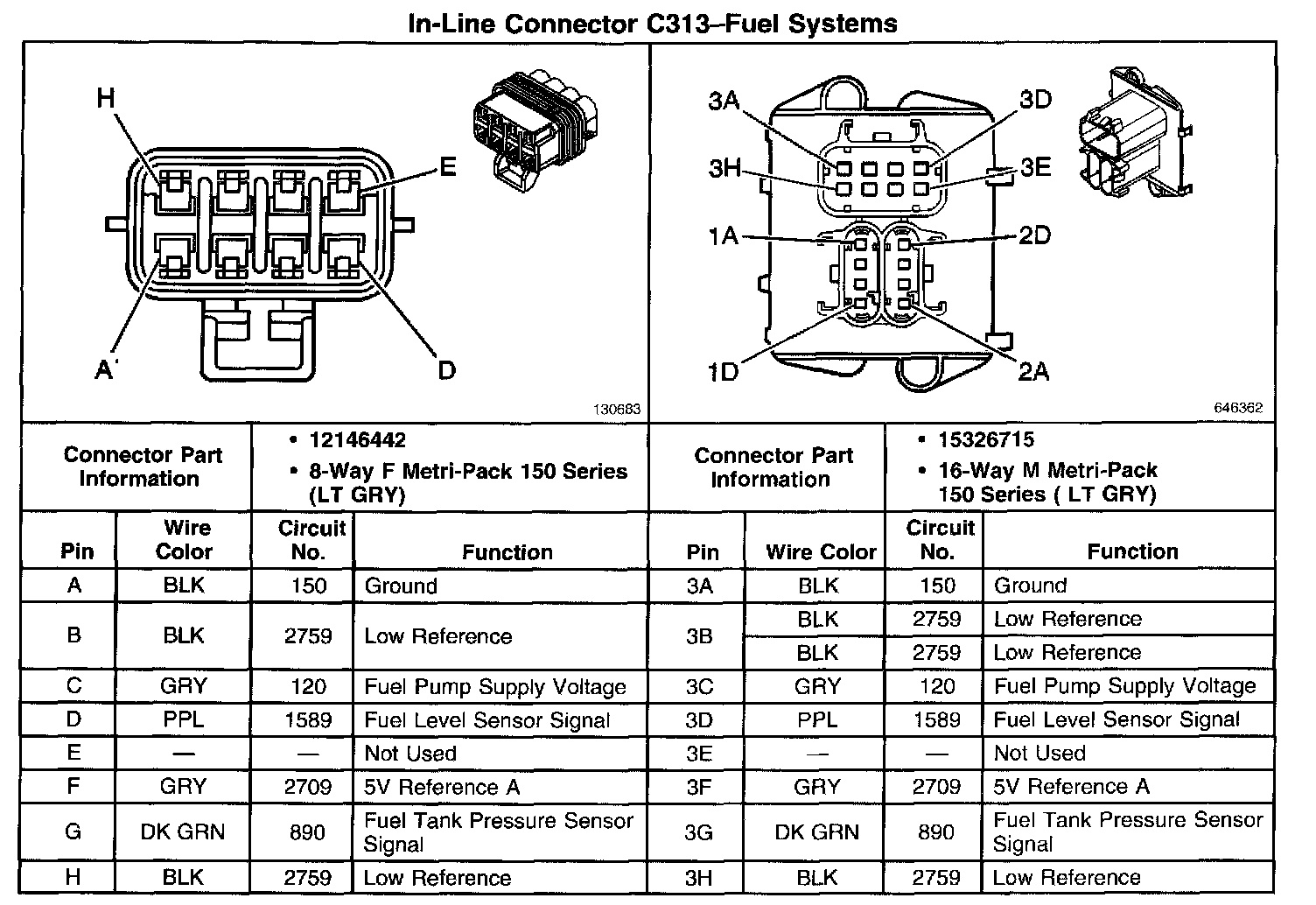

In-Line Connector C313 - Fuel Systems:
